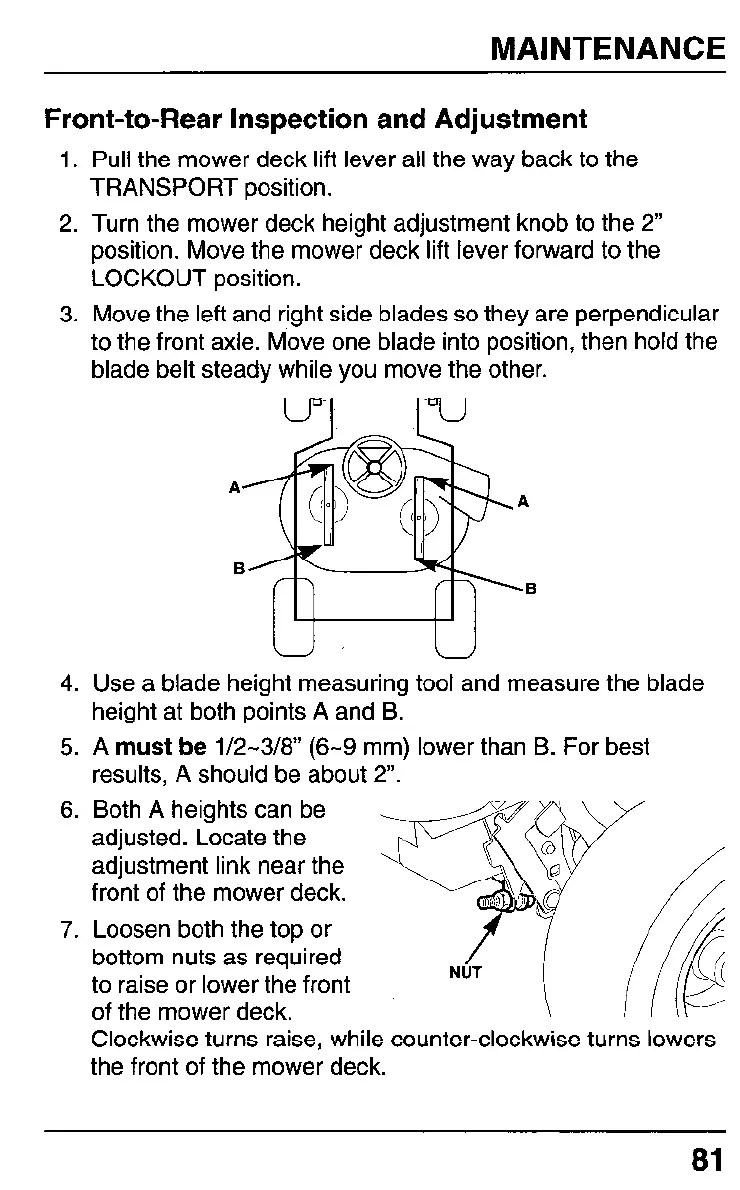

MAINTENANCE
Front-to-Rear Inspection and Adjustment
1.
2.
Pull the mower deck lift lever all the way back to the
TRANSPORT position.
Turn the mower deck height adjustment knob to the 2”
position. Move the mower deck lift lever forward to the
LOCKOUT position.
3.
Move the left and right side blades so they are perpendicular
to the front axle. Move one blade into position, then hold the
blade belt steady while you move the other.
4.
asure the blade
5.
6.
height at both points A and B.
A must be l/2-3/8” (6-9 mm) lower than B. For best
results, A should be about 2”.
Both A heights can be
adjusted. Locate the
adjustment link near the
front of the mower deck.
7. Loosen both the top or
bottom nuts as required
to raise or lower the front
of the mower deck.
Clockwise turns raise, while counter-clockwise turns lowers
the front of the mower deck.
81
