46
2013.04.10 E
E-19

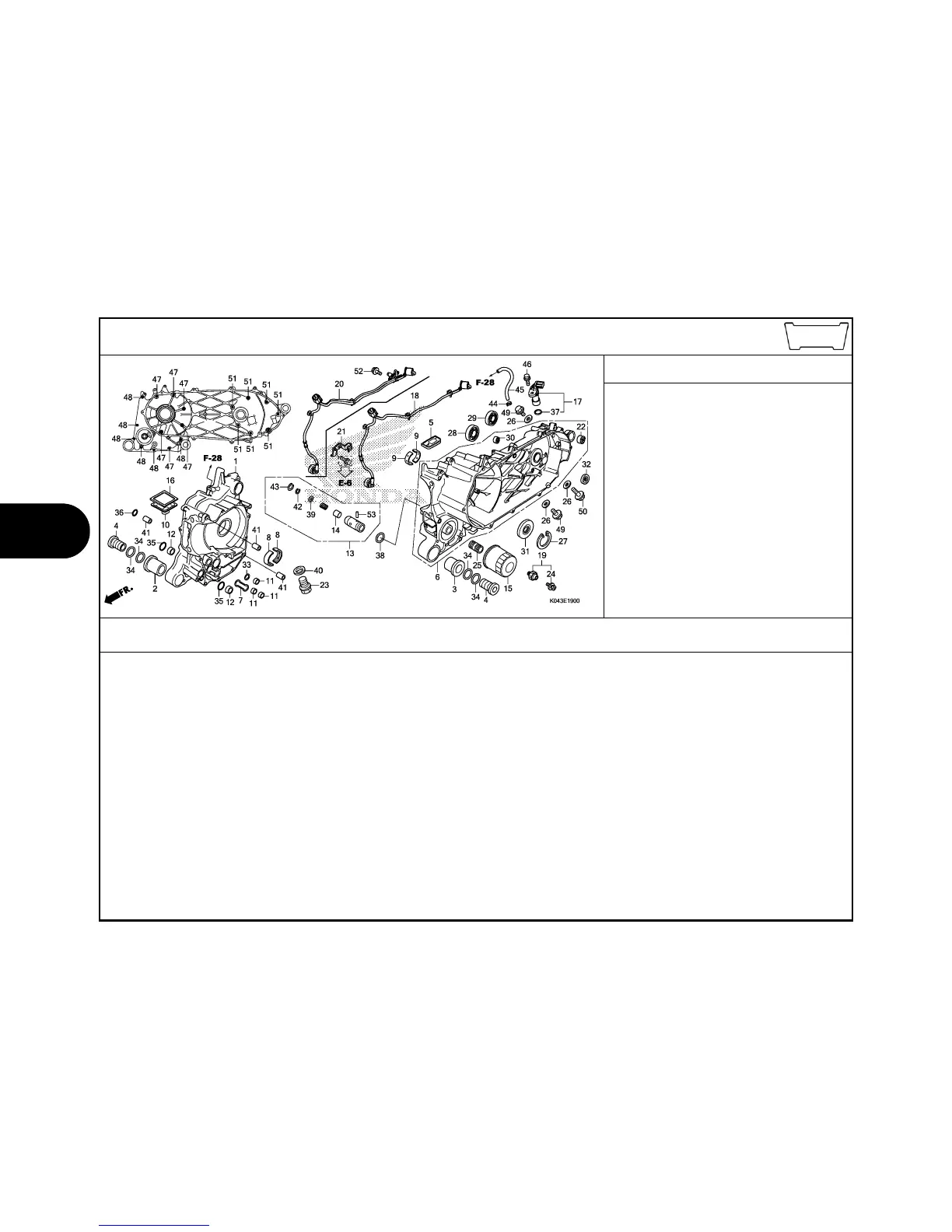

CRANKCASE
2
(9) 13324-KTW-901 BEARING C, CRANKSHAFT L. SIDE
(BROWN)
2 2
13325-KTW-901 BEARING D, CRANKSHAFT L. SIDE
(GREEN)
2 2
13326-KTW-901 BEARING E, CRANKSHAFT L. SIDE
(BLUE/BLUE)(O.S.)
(2) (2)
13327-KTW-901 BEARING F, CRANKSHAFT L. SIDE
(BLACK/BLACK)(O.S.)
(2) (2)
13328-KTW-901 BEARING G, CRANKSHAFT L. SIDE
(BROWN/BROWN)(O.S.)
(2) (2)
13329-KTW-901 BEARING H, CRANKSHAFT L. SIDE
(GREEN/GREEN)(O.S.)
(2) (2)
10 15153-HN7-000 STRAINER, OIL ••••••••••••••• 1 1
11 15155-300-000 COLLAR, O-RING •••••••••••••• 3 3
12 15155-HP0-A00 COLLAR, O-RING •••••••••••••• 2 2
13 15220-KTW-900 VALVE ASSY., RELIEF ••••••••• 1 1
14 15231-413-020 VALVE, RELIEF ••••••••••••••• 1 1
15 15410-MFJ-D01 CARTRIDGE, OIL FILTER
(TOYO ROKI)
1 1
16 15421-K04-930 SCREEN, OIL FILTER •••••••••• 1 1
17 28810-R90-013 PICK UP ASSY.(TOYO) ••••••••• 1 1
18 32105-K04-930 SUB CORD, ENGINE •••••••••••• 1 -
19 35500-MEH-661 SWITCH ASSY., OIL PRESSURE
(DENSO)
1 1
20 38510-K04-971 SENSOR, RR. WHEEL SPEED ••••• - 1
Ref.
No.
Part No. Description
Reqd. QTY
Parts catalogue code
NSS NSS
300 300A
D D
Serial No.
15 113180 CARTRIDGE, OIL FILTER •••••••• 0.2
16 1131B5 SCREEN, OIL FILTER ••••••••••• 1.4
17 617198 SENSOR, SPEEDOMETER •••••••••• 1.2
18 6111A3 SUB CORD, SPEED SENSOR ••••••• 1.2
19 615160 SWITCH, OIL PRESSURE ••••••••• 0.2
20 617197 SENSOR, WHEEL SPEED :REAR •••• 1.3
28 2101F0 BEARING, DRIVESHAFT :LEFT •••• 1.6
2101J1 BEARING, DRIVESHAFT :BOTH •••• 1.7
29 2101E5 BEARING, FINAL GEAR SHAFT
:LEFT ••••••••••••••••••••••• 1.5
2101J0 BEARING, FINAL GEAR SHAFT
:BOTH ••••••••••••••••••••••• 1.6
30 2101C7 BEARING, COUNTERSHAFT :LEFT •• 1.5
2101C9 BEARING, COUNTERSHAFT :BOTH •• 1.6
31 110131 OIL SEAL, CRANKSHAFT :LEFT ••• 4.9
.INCLUDES: Engine removal and
installation
32 2101E7 OIL SEAL, DRIVESHAFT ••••••••• 1.6
Ref.
No.
L.O.N.
(Relative ref. Number)
Description
F.R.T.
E 3
To Next Page
