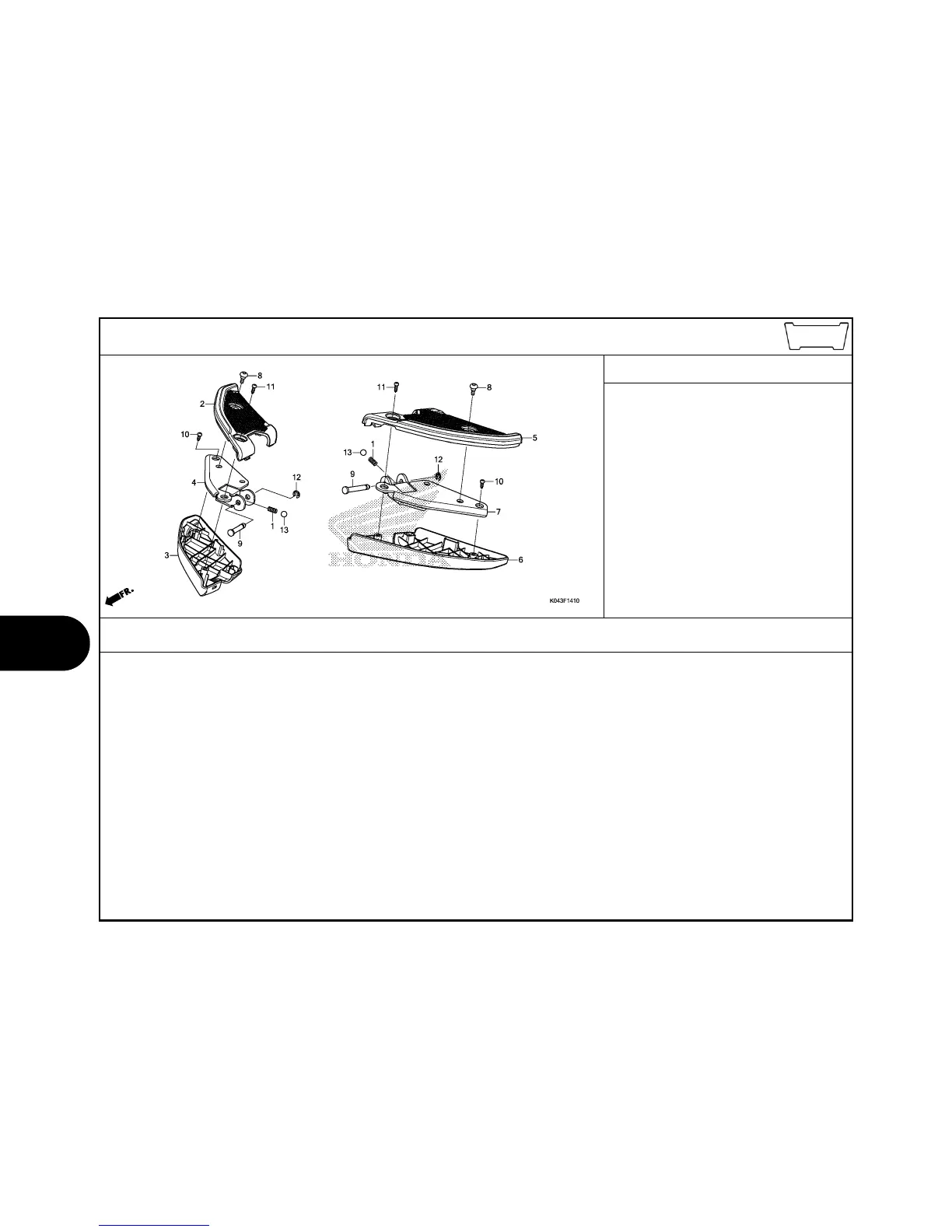

Honda NSS300 - Luggage Box

74
2013.04.10 E
3
F-14-10
PILLION STEP
Ref.
No.
Part No. Description
Reqd. QTY
Parts catalogue code
NSS NSS
300 300A
D D
Serial No.
1 28333-300-000 SPRING, KICK STARTER STOPPER 2 2
2 50711-K04-930 COVER, R. PILLION STEP UPPER 1 1
3 50712-K04-930 COVER, R. PILLION STEP LOWER 1 1
4 50713-K04-930 PLATE, R. PILLION STEP •••••• 1 1
5 50721-K04-930 COVER, L. PILLION STEP UPPER 1 1
6 50722-K04-930 COVER, L. PILLION STEP LOWER 1 1
7 50723-K04-930 PLATE, L. PILLION STEP •••••• 1 1
8 90106-MM4-000 SCREW, PAN, 6X14 •••••••••••• 2 2
9 90131-K04-930 PIN, PILLION STEP ••••••••••• 2 2
10 93903-35180 SCREW, TAPPING, 5X10 •••••••• 2 2
11 93903-35280 SCREW, TAPPING, 5X12 •••••••• 2 2
12 94540-04018 E-RING, 4MM ••••••••••••••••• 2 2
13 96211-08000 BALL, STEEL, #8(1/4) •••••••• 2 2
Ref.
No.
L.O.N.
(Relative ref. Number)
Description
F.R.T.
4 (2,3)
4101C8 BAR, PILLION STEP :RIGHT ••••• 0.1
7 (5,6)
4101C7 BAR, PILLION STEP :LEFT •••••• 0.1
4101P4 BAR, PILLION STEP :BOTH •••••• 0.2
G 9
