Honda NSS300 User Manual

2013.04.10 E
63
3
F-10

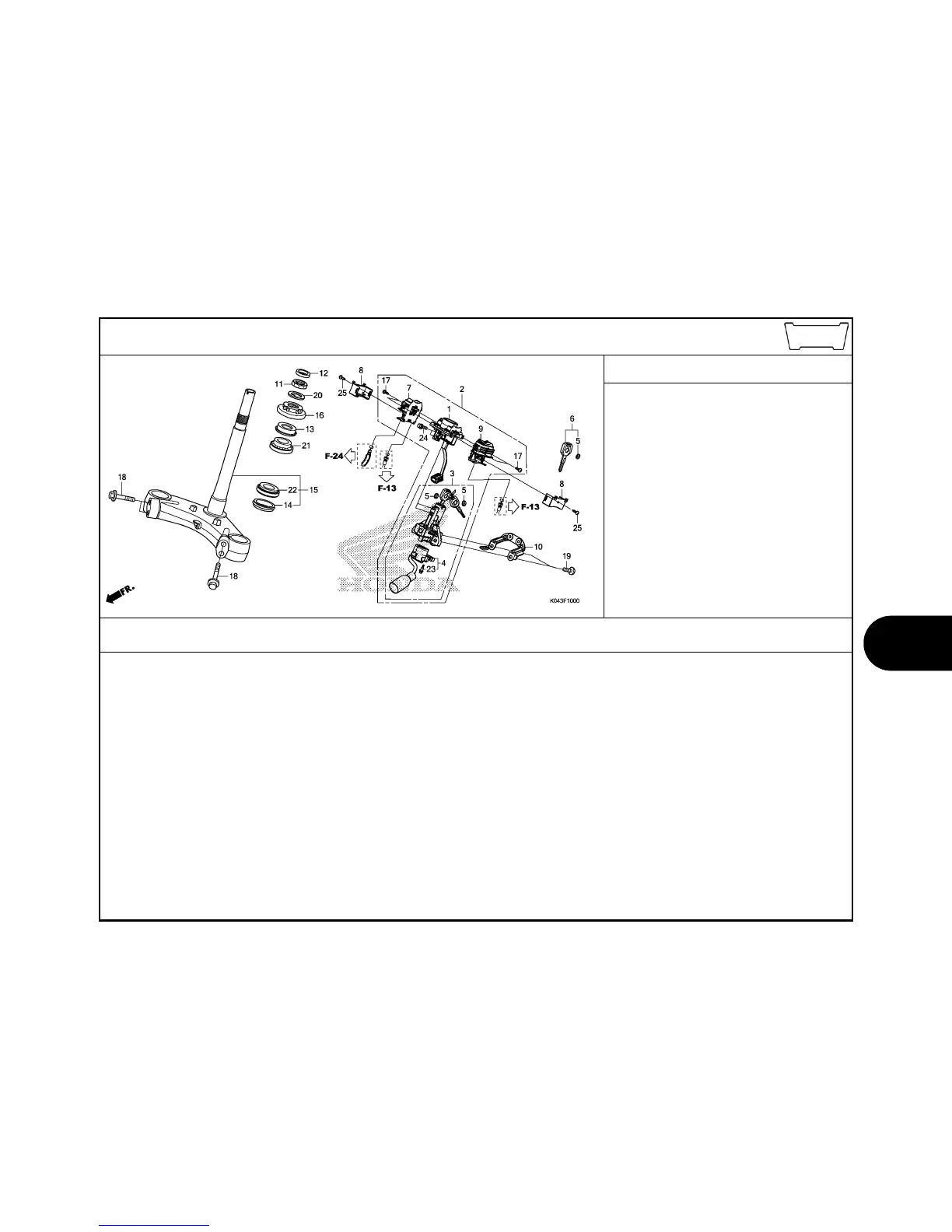

STEERING STEM/COMBINATION SWITCH(E/ED/F)
Ref.
No.
Part No. Description
Reqd. QTY
Parts catalogue code
NSS NSS
300 300A
D D
Serial No.
1 30430-K04-305 RECEIVER UNIT SET ••••••••••• 1 1 -------- -------- E,ED,F
2 35014-K04-305 KEY SET(IMMOBI) ••••••••••••• 1 1 -------- -------- E,ED,F
3 35100-K04-931 SWITCH ASSY., COMBINATION &
LOCK 1 1 -------- -------- E,ED,F
4 35101-K04-931 BASE COMP., CONTACT ••••••••• 1 1 -------- -------- E,ED,F
5 35113-MFJ-D01 EMBLEM, KEY ••••••••••••••••• 4 4 -------- -------- E,ED,F
(2) (2) -------- -------- E,ED,F
6 35121-K04-305 KEY, BLANK(IMMOBI) •••••••••• (1) (1) -------- -------- E,ED,F
7 35190-K27-V01 SWITCH ASSY., FUEL LID & SEAT
OPENER 1 1 -------- -------- E,ED,F
8 35191-K27-V01 COVER, CABLE •••••••••••••••• 2 2 -------- -------- E,ED,F
9 35195-K04-931 SWITCH ASSY., L. LID OPENER • 1 1 -------- -------- E,ED,F
10 50211-K04-930 STAY COMP., INNER ••••••••••• 1 1 -------- -------- E,ED,F
11 50306-GN5-900 NUT, STEERING STEM LOCK ••••• 1 1 -------- -------- E,ED,F
12 53113-MCT-010 SEAL, HANDLE POST ••••••••••• 1 1 -------- -------- E,ED,F
13 53213-MB4-771 DUST SEAL, STEERING UPPER
(ARAI) 1 1 -------- -------- E,ED,F
14 53214-MR7-003 DUST SEAL, STEERING HEAD(ARAI) 1 1 -------- -------- E,ED,F
15 53219-K04-930 STEM SUB ASSY., STEERING •••• 1 1 -------- -------- E,ED,F
16 53220-KYJ-900 THREAD COMP., STEERING HEAD
TOP 1 1 -------- -------- E,ED,F
17 90101-MT4-000 SCREW, SCREEN SETTING ••••••• 4 4 -------- -------- E,ED,F
18 90102-KVZ-630 BOLT, FLANGE, 10X45 ••••••••• 4 4 -------- -------- E,ED,F
19 90107-MBG-000 BOLT, ONE-WAY, 8MM •••••••••• 2 2 -------- -------- E,ED,F
20 90506-MCT-000 WASHER, LOCK NUT •••••••••••• 1 1 -------- -------- E,ED,F
Ref.
No.
L.O.N.
(Relative ref. Number)
Description
F.R.T.
1 6141A2 RECEIVER UNIT, IMMOBILIZER ••• 1.9
2 615145 SWITCH, COMBINATION & LOCK ••• 2.2
.INCLUDES: HISS memorization
3 615145 SWITCH, COMBINATION & LOCK ••• 2.2
.INCLUDES: HISS memorization
4 6151C2 BASE, CONTACT •••••••••••••••• 1.9
7 (9)
6151E8 SWITCH, SEAT AND BOX ••••••••• 1.7
15 510100 STEM OR SHAFT ASSY., STEERING 2.1
16 (13)
5101B2 THREAD, STEERING HEAD TOP •••• 1.9
21 5101B6 BEARING, HEAD PIPE :UPPER •••• 2.1
22 (14)
5101B7 BEARING, HEAD PIPE :LOWER •••• 2.3
5101C7 BEARING, HEAD PIPE :BOTH ••••• 2.3
F14
