Honda NSS300 User Manual

2013.04.10 E
75
3
F-15

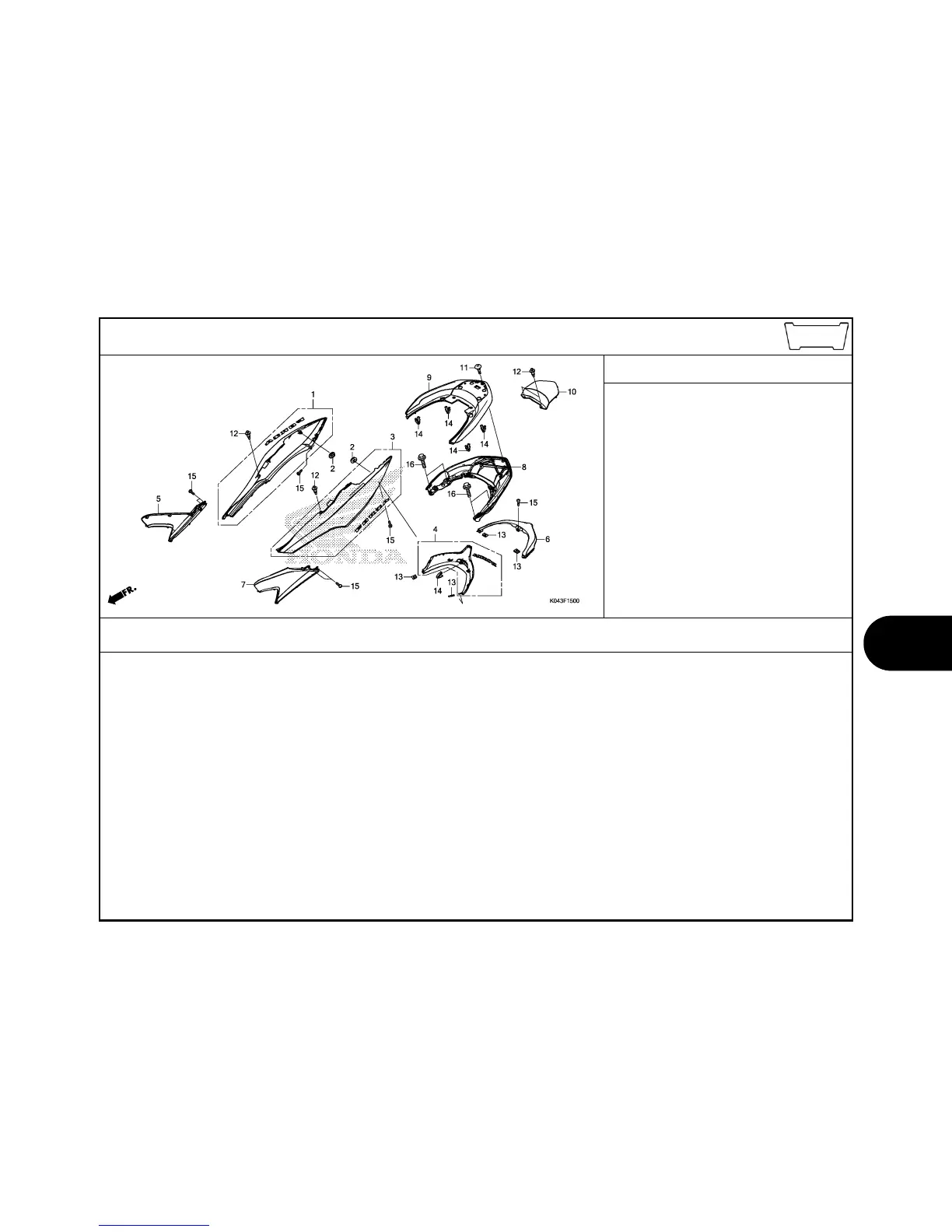

BODY COVER/GRAB RAIL
Ref.
No.
Part No. Description
Reqd. QTY
Parts catalogue code
NSS NSS
300 300A
D D
Serial No.
1 83550-K04-930ZA COVER SET, R. BODY(WL)
*TYPE4*...................... 1 1 -------- -------- E,ED,F,KO
83550-K04-930ZC *TYPE2*...................... 1 1
83550-K04-930ZD *TYPE1*...................... 1 1
2 83551-GE2-000 GROMMET, AIR CLEANER CASE ••• 2 2
3 83650-K04-930ZA COVER SET, L. BODY(WL)
*TYPE4*...................... 1 1 -------- -------- E,ED,F,KO
83650-K04-930ZC *TYPE2*...................... 1 1
83650-K04-930ZD *TYPE1*...................... 1 1
4 83660-K04-930ZA COVER SET, RR. BODY LOWER(WL)
*TYPE4*...................... 1 1 -------- -------- E,ED,F,KO
83660-K04-930ZC *TYPE2*...................... 1 1
83660-K04-930ZD *TYPE1*...................... 1 1
5 83701-K04-930ZD PANEL, R. FLOOR SIDE
*NHA14M*.SEAL SILVER METALLIC 1 1 -------- -------- E,ED,F,KO
83701-K04-930ZB *NHA87P*PEARL HIMALAYAS WHITE 1 1
83701-K04-930ZC *NHA35M*
ASTEROID BLACK METALLIC 1 1
6 83751-K04-930ZD COVER, RR. BODY UPPER
*NHA14M*.SEAL SILVER METALLIC 1 1 -------- -------- E,ED,F,KO
83751-K04-930ZB *NHA87P*PEARL HIMALAYAS WHITE 1 1
83751-K04-930ZC *NHA35M*
ASTEROID BLACK METALLIC 1 1
7 83801-K04-930ZD PANEL, L. FLOOR SIDE
*NHA14M*.SEAL SILVER METALLIC 1 1 -------- -------- E,ED,F,KO
83801-K04-930ZB *NHA87P*PEARL HIMALAYAS WHITE 1 1
83801-K04-930ZC *NHA35M*
ASTEROID BLACK METALLIC 1 1
Ref.
No.
L.O.N.
(Relative ref. Number)
Description
F.R.T.
1 4131J0 COVER, BODY :RIGHT ••••••••••• 0.1
3 4131H9 COVER, BODY :LEFT •••••••••••• 0.1
4131J1 COVER, BODY :BOTH •••••••••••• 0.2
4 413124 COVER, REAR UNDER •••••••••••• 0.1
5 4111H9 COVER, SIDE :RIGHT ••••••••••• 0.2
6 4131J2 COVER, BODY :REAR •••••••••••• 0.6
7 4111H8 COVER, SIDE :LEFT •••••••••••• 0.2
4111J0 COVER, SIDE :BOTH •••••••••••• 0.2
8 4131F6 RAIL, GRAB :REAR ••••••••••••• 0.5
9 4121M8 COVER, SPOILER ••••••••••••••• 0.2
10 4131J8 COVER, REAR CENTER ••••••••••• 0.1
