Honda NSS300 User Manual

2013.04.10 E
61
3
F-7-1

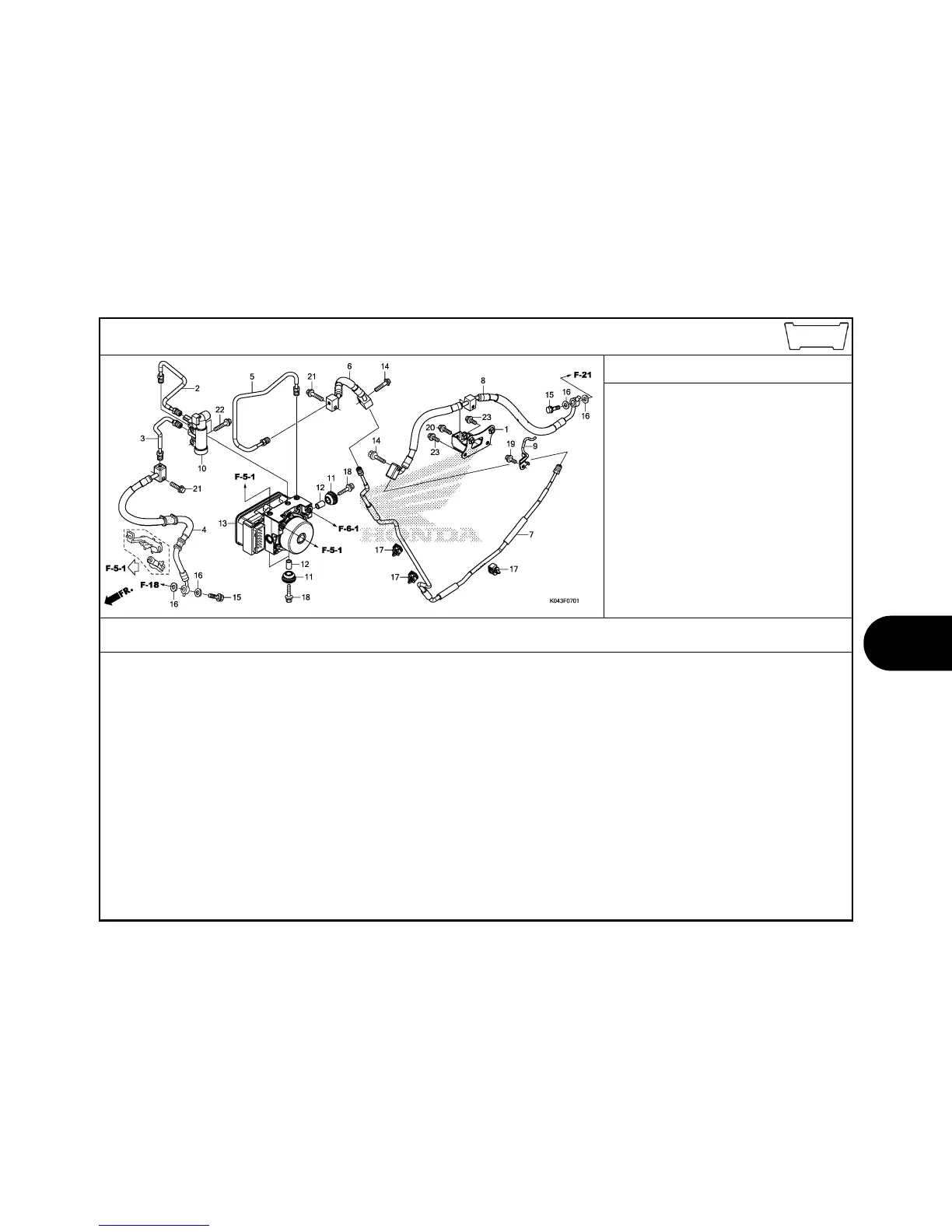

REAR BRAKE PIPE(NSS300A)
Ref.
No.
Part No. Description
Reqd. QTY
Parts catalogue code
NSS NSS
300 300A
D D
Serial No.
1 18654-K04-930 STAY COMP., RR. BRAKE HOSE •• - 1
2 43313-K04-970 PIPE COMP. C, RR. BRAKE ••••• - 1
3 43314-K04-930 PIPE COMP. D, RR. BRAKE ••••• - 1
4 43315-K04-931 HOSE E, RR. BRAKE ••••••••••• - 1
5 43316-K04-970 PIPE COMP. F, RR. BRAKE ••••• - 1
6 43317-K04-971 HOSE COMP. G, RR. BRAKE ••••• - 1
7 43318-K04-930 PIPE COMP. H, RR. BRAKE ••••• - 1
8 43319-K04-931 HOSE COMP. J, RR. BRAKE ••••• - 1
9 43470-K04-930 GUIDE COMP., RR. BRAKE HOSE • - 1
10 46300-MGS-D81 VALVE ASSY., DELAY •••••••••• - 1
11 57101-MER-D21 RUBBER, MOUNTING •••••••••••• - 3
12 57103-SDA-003 COLLAR •••••••••••••••••••••• - 3
13 57110-K04-971 MODULATOR ASSY., ABS •••••••• - 1
14 90050-KFL-850 BOLT, SPECIAL FLANGE, 6X25 •• - 2
15 90145-MS9-612 BOLT, OIL, 10X22 •••••••••••• - 2
16 90545-300-000 WASHER, OIL BOLT •••••••••••• - 4
17 90661-MGS-D71 CLAMP, BRAKE PIPE(7.0) •••••• - 3
18 93404-06025-00 BOLT-WASHER, 6X25 ••••••••••• - 3
19 95701-06016-07 BOLT, FLANGE, 6X16 •••••••••• - 1
20 95701-06018-07 BOLT, FLANGE, 6X18 •••••••••• - 1
21 95701-06025-08 BOLT, FLANGE, 6X25 •••••••••• - 2
22 95701-06032-08 BOLT, FLANGE, 6X32 •••••••••• - 2
23 95801-06014-08 BOLT, FLANGE, 6X14 •••••••••• - 2
Ref.
No.
L.O.N.
(Relative ref. Number)
Description
F.R.T.
2 7121D9 PIPE C, REAR BRAKE ••••••••••• 1.4
.INCLUDES: Bleed brakes
3 7121L8 PIPE D, REAR BRAKE ••••••••••• 1.4
.INCLUDES: Bleed brakes
4 7121L7 HOSE E, REAR BRAKE ••••••••••• 1.5
.INCLUDES: Bleed brakes
5 7121L6 PIPE F, REAR BRAKE ••••••••••• 1.4
.INCLUDES: Bleed brakes
6 7121R0 HOSE G, REAR BRAKE ••••••••••• 2.1
.INCLUDES: Bleed brakes
7 7121R1 PIPE H, REAR BRAKE ••••••••••• 2.1
.INCLUDES: Bleed brakes
8 7121V4 HOSE J, REAR BRAKE ••••••••••• 0.7
.INCLUDES: Bleed brakes
10 712165 VALVE, DELAY ••••••••••••••••• 1.5
.INCLUDES: Bleed brakes
13 7111H1 MODULATOR, ABS ••••••••••••••• 1.9
.INCLUDES: Bleed brakes
