Removing & Installing Body Components u Clip
56
Maintenance
Clip
The clip must be removed to remove the font
top cover.
❙

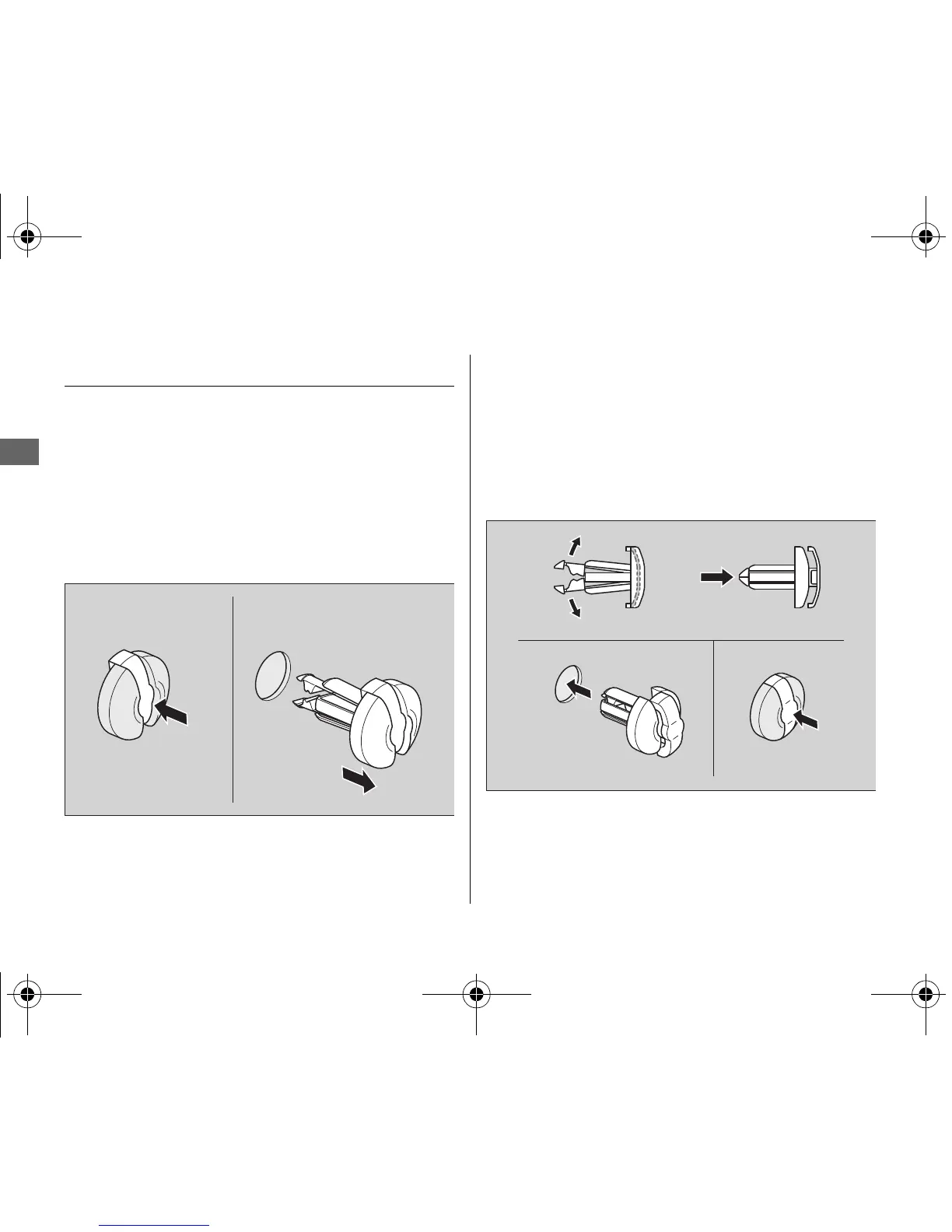

Removal
1.
Press down on the centre pin to release
the lock.
2.
Pull the clip out of the hole.
❙
Installation
1.
Slightly open the retaining pawls and then
push them out.
2.
Insert the clip into the hole.
3.
Lightly press down on the centre pin to
lock the clip.
!b!a
!a
!b !c
