Honda Wave 110i User Manual

Electrical Trouble u Burned-out Light Bulb
87
continued
Troubleshooting
❙
Headlight Bulb
1. Remove the headlight case. 2 P. 53
2. Pull the socket off the bulb without
turning it.
3. Remove the dust cover.
4. Press the pin down and pull out the bulb
without turning it.
5. Install a new bulb and parts in the reverse
order of removal.
u Install the dust cover with its ‘‘TOP’’
mark facing up.
Do not touch the glass surface with your
fingers. If you touch the bulb with your bare
hands, clean it with a cloth moistened with
alcohol.

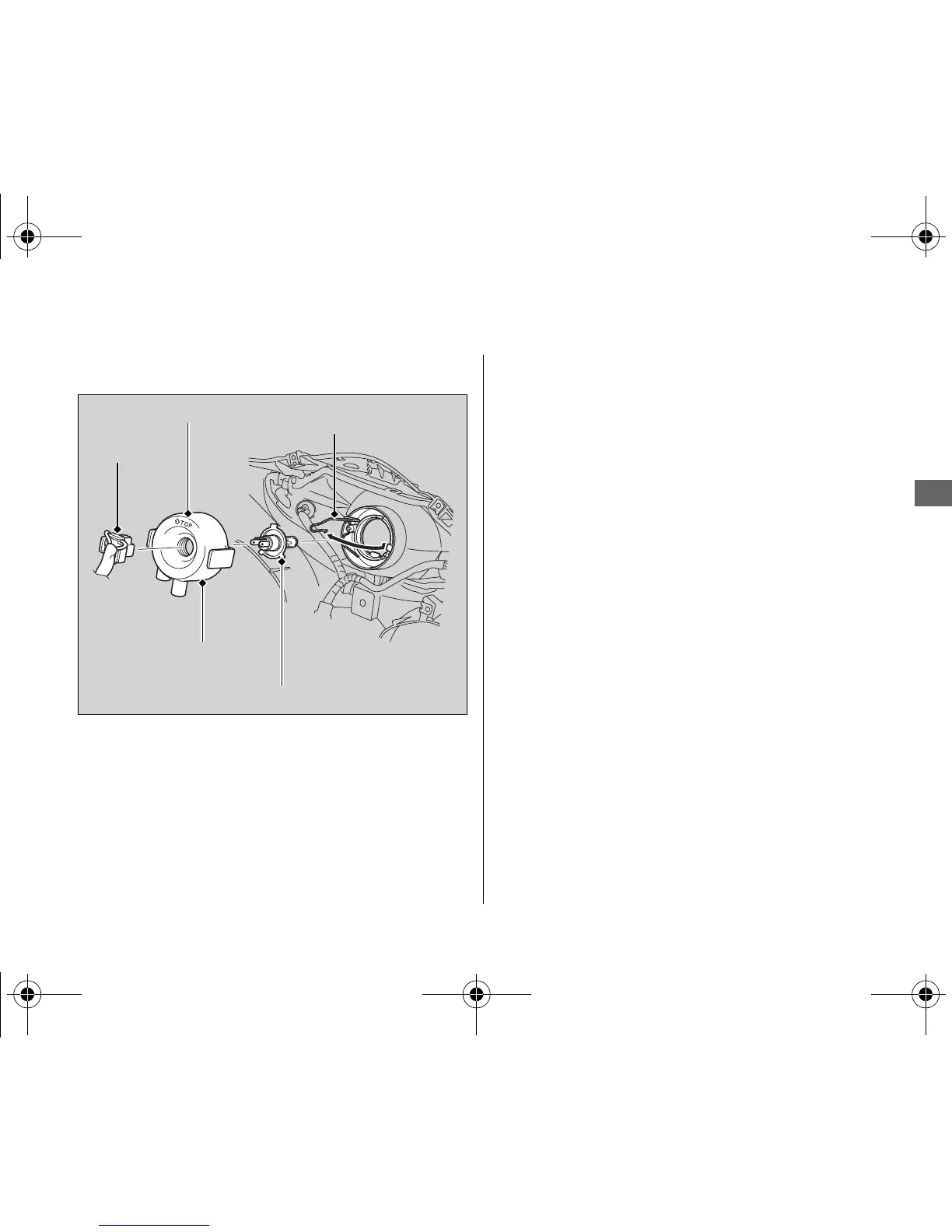

Pin
Bulb
Socket
Dust cover
TOP mark
