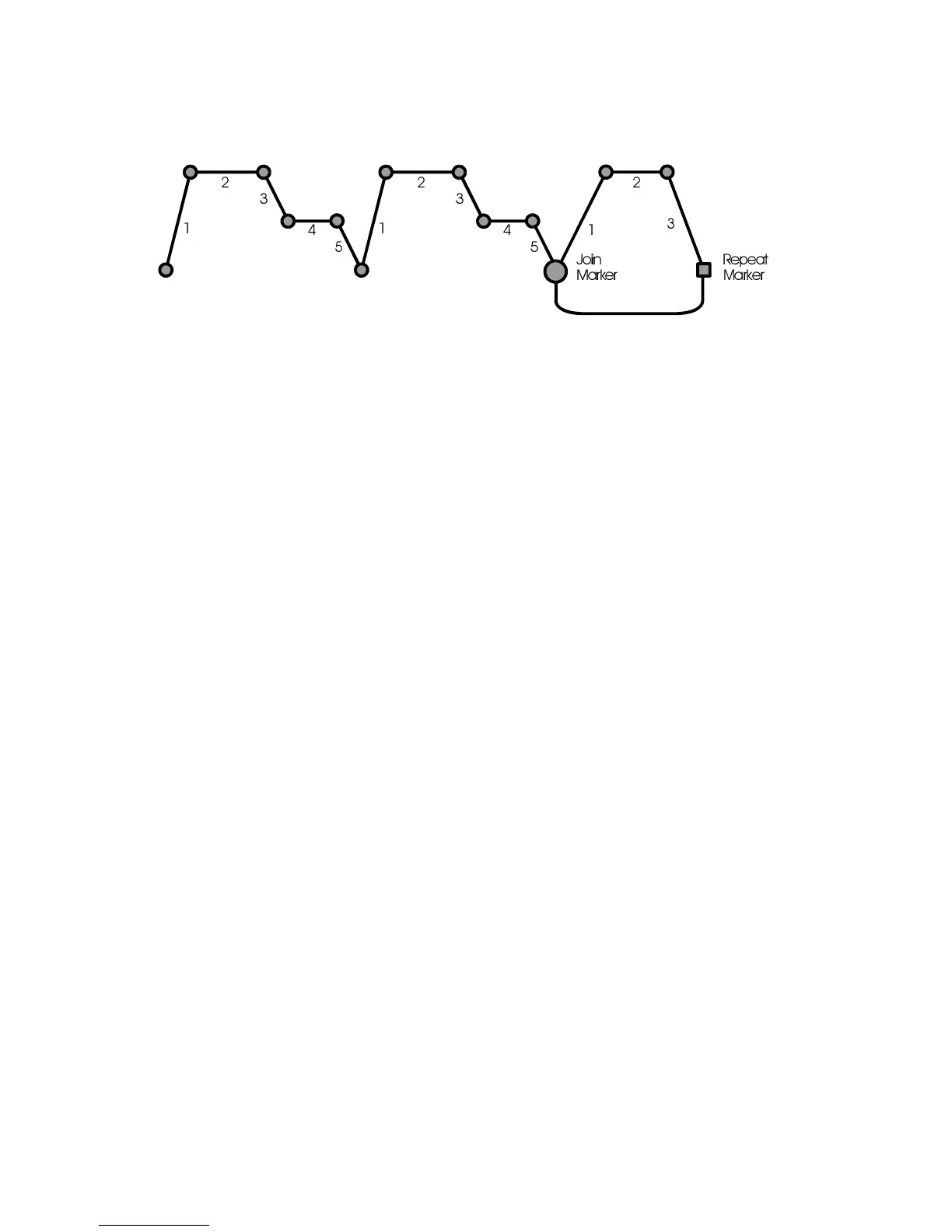

At the end of the tenth cycle of Program 2, the program sequence would end.
8.6 BASIC RULES TO REMEMBER
In any program sequence:
• A pro gram end ing in a Join Marker will per form the re quired number of
cy cles of it self be fore join ing the new pro gram.
• A pro gram end ing in a Re peat Marker (hence, by defi ni tion, the last
pro gram in the se quence) will per form the re quired number of cy cles of
it self be fore end ing the se quence.
• A pro gram end ing in an End Marker (hence, by defi ni tion, the last
pro gram in the se quence) will per form its cy cle count on the en tire
pro gram se quence be fore end ing that se quence.
8.7 EXITING PROGRAM DEFINE MODE
The operator may exit from Program Define Mode by pressing the MODE key until
the Exit ? prompt appears in the Message Display, then pressing the SET UP key,
which will cause a return to the mode from which entry was made.
NOTE: An auto matic re turn is made if there is no key ac tiv ity in
Pro gram De fine Mode for five min utes.
8-8
PROGRAM 1 PROGRAM 2PROGRAM 1
10 cycles

Honeywell dcp100t Specifications

General

Type	Digital Controller
Control Mode	PID, On/Off
Operating Temperature	0 to 50°C (32 to 122°F)
Input	Thermocouple, RTD
Output	Relay, SSR
Power Supply	100-240V AC
Communication	RS-485

Summary

INTRODUCING THE DCP 100T

PROGRAMS

SELECTING AND RUNNING A PROGRAM

Guides on how to select and start a program on the controller.

USING THE SELF-TUNE FACILITY

USING THE PRE-TUNE FACILITY

DEFINING AND VIEWING A PROGRAM (PROGRAM DEFINE MODE)

ENTRY INTO PROGRAM DEFINE MODE

Steps to enter Program Define Mode, including lock code entry.

PARAMETERS COMMON TO ALL PROGRAMS (GLOBAL)

Details global parameters applicable to all programs.

PARAMETERS WHICH APPLY TO A SPECIFIC PROGRAM AS A WHOLE

Covers parameters specific to a single program.

PARAMETERS IN ANY/EACH SEGMENT IN A SPECIFIC PROGRAM

Explains parameters for individual segments within a program.

DEFINING THE CONTROLLER PARAMETERS (CONTROLLER DEFINE MODE)

CONTROLLER PARAMETERS

Lists and explains parameters for controller configuration.

LOOP ALARM AND LOOP ALARM TIME

Explains the loop alarm feature and its time settings.
