Honeywell DVC100 (M) MK2 User Manual

17

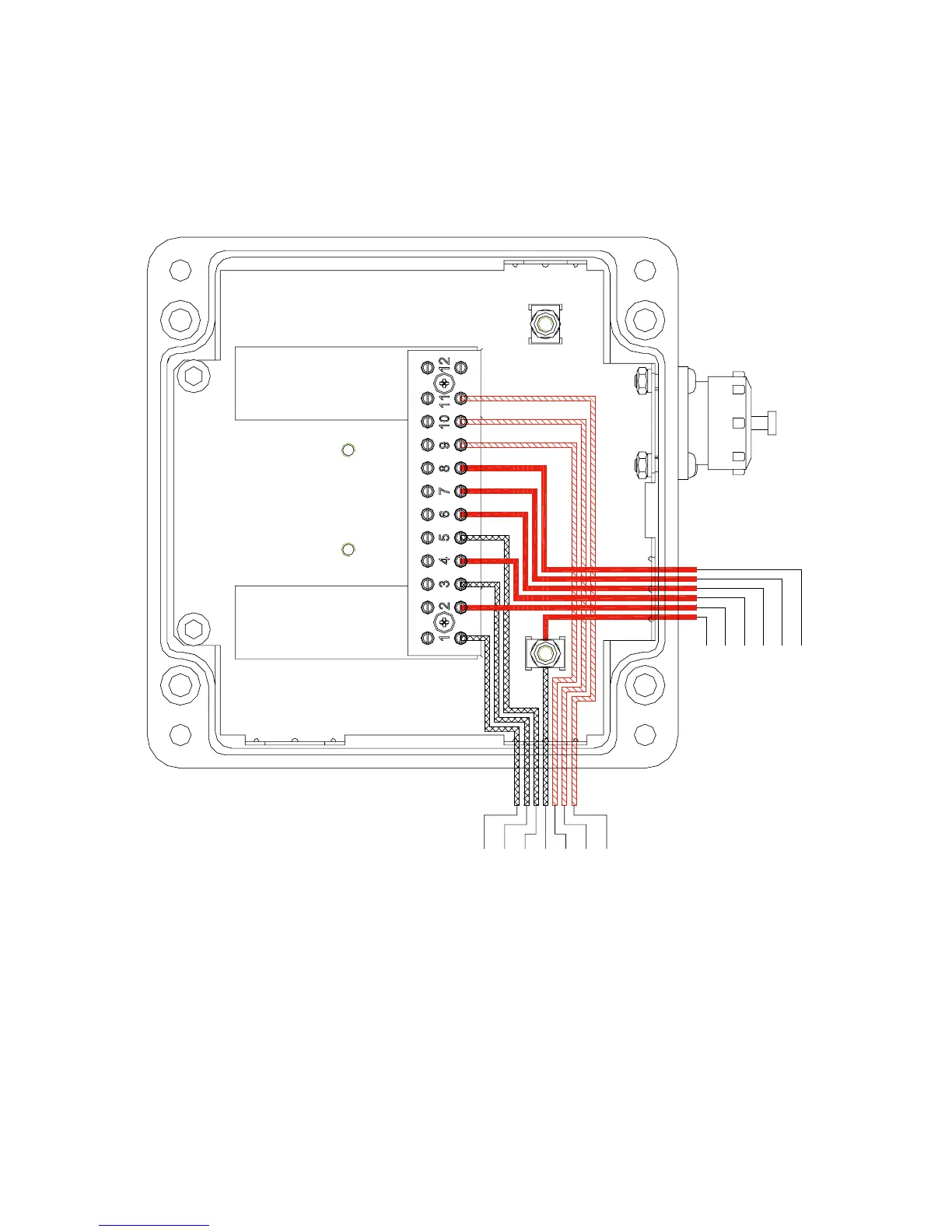

+24VDC IN (Terminal 1)
0V (Terminal 3)
4-20mA (Terminal 5)
Earth Terminal
MOD BUS Drain (Terminal 9)
MOD BUS A (Terminal 10)
MOD BUS B (Terminal 11)
Field Wiring
Excel Receiver
Wiring
Earth Terminal
+24VDC (Red) (Terminal 2)
0V (Black) (Terminal 4)
4-20mA (White) (Terminal 6)
RS485 (A) (Orange) (Terminal 7)
RS485 (B) (Blue) (Terminal 8)
