Installation Guide and Operating Manual
Honeywell 10

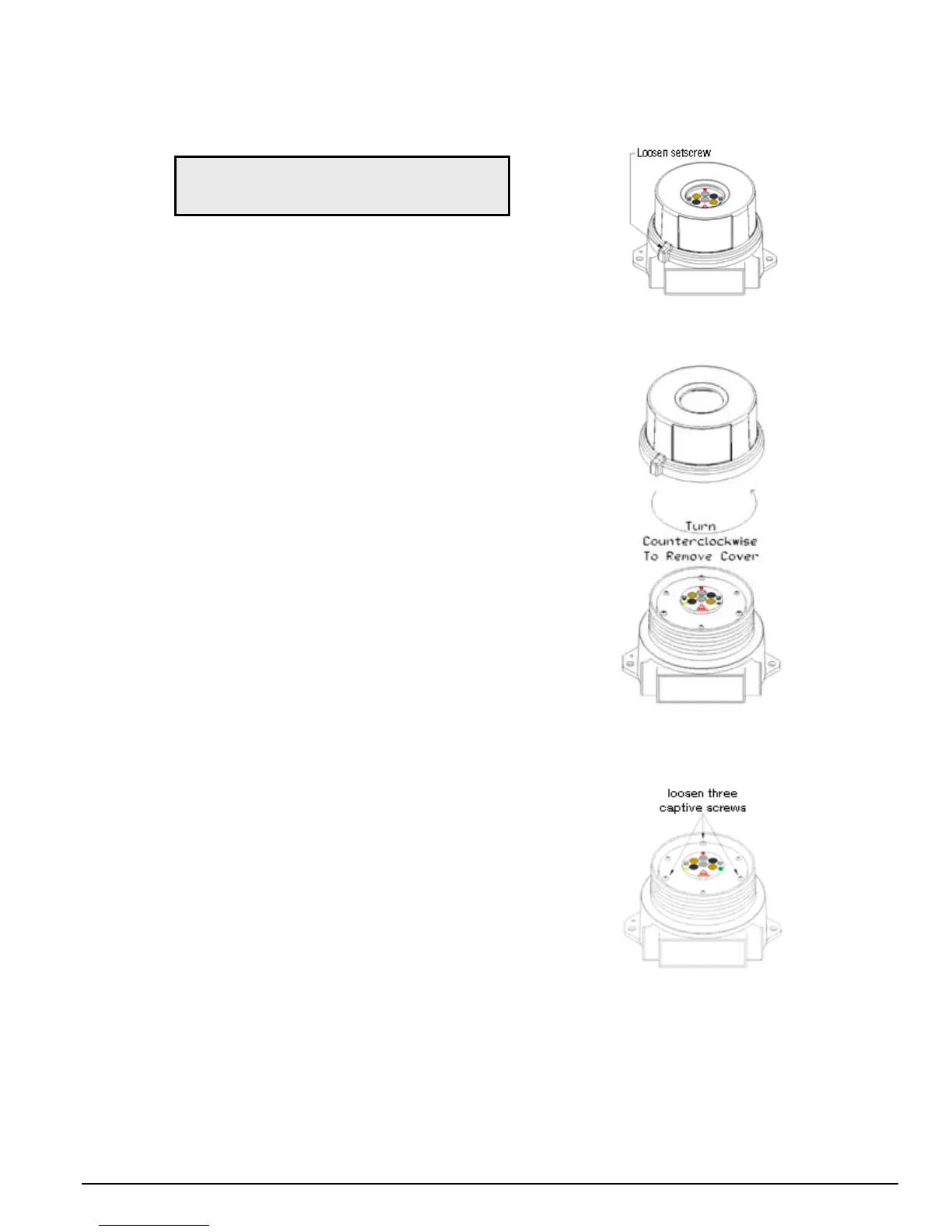

2.2 Opening the Detector
It is necessary to remove the Detector Module puck from the enclosure to access the field connections.
1. Loosen the set screw on the enclosure lid
(see Figure 2-6).
Figure 2-6
2. Turn counterclockwise (CCW) to unscrew
the enclosure lid (see Figure 2-7).
Figure 2-7
3. Loosen the three captive screws on the
Detector Module puck (see Figure 2-8).
Figure 2-8
CAUTION: Disconnect power before
unscrewing the Housing Lid.
