4-1
Section 4
ECS Device Installation
4.1 Connecting AC Power and Batteries
Refer to the FACP’s installation manual for proper AC power connections.
4.2 Installing the ECS-VCM
The ECS-VCM Voice Control Module is contained within the Honeywell Farenhyt Series ECS panel
enclosure. It provides a supervised microphone for live communication and an interface for the
Emergency Communication System. This section provides information on how to install or remove the
ECS-VCM to the control cabinet and how to make the proper wiring connections.
4.2.1 ECS-VCM Board Layout
The following is description of the ECS-VCM voice control module components.

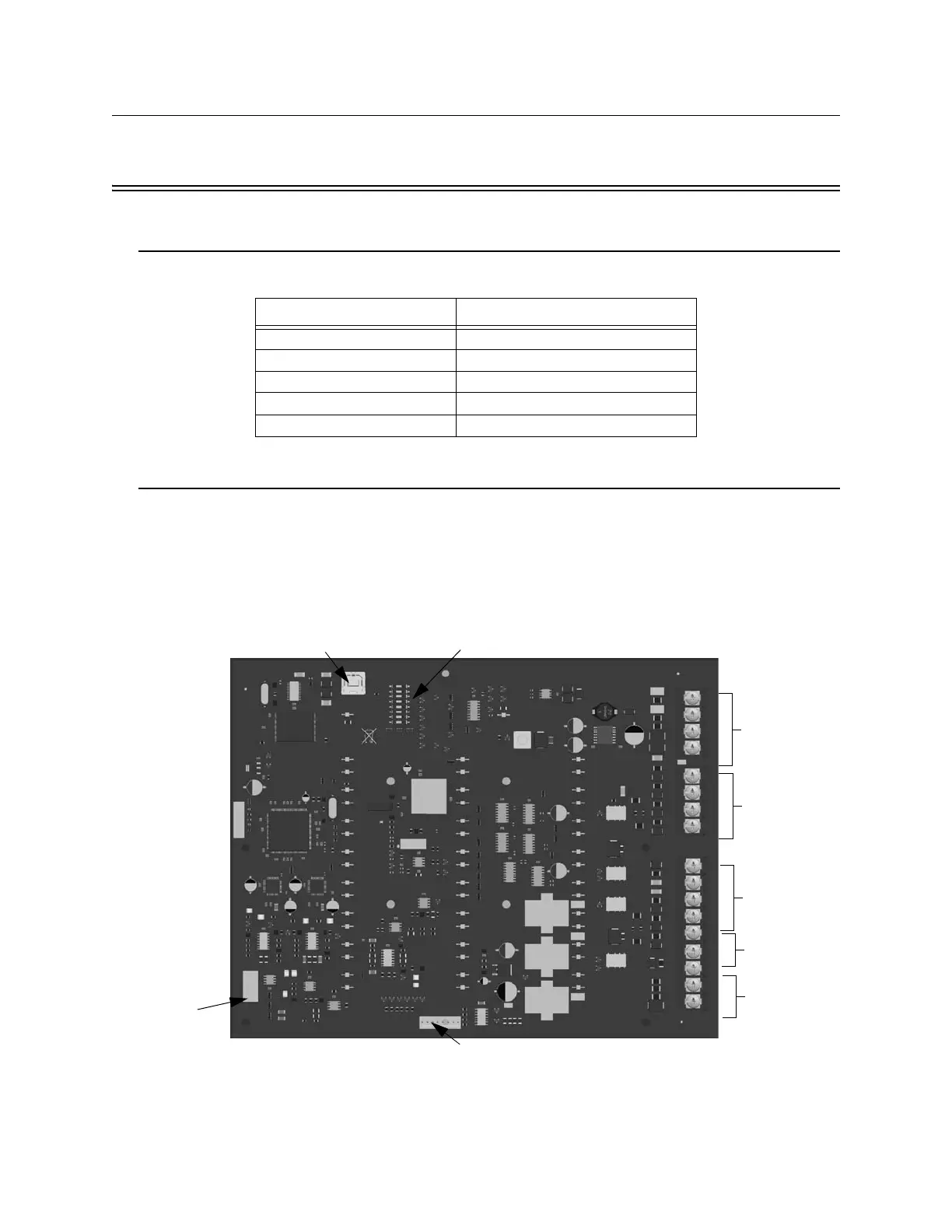

Figure 4-1 Back View of ECS-VCM
ECS Series Model Number FACP Installation Manual
IFP-2000ECS 151430-L8
IFP-1000ECS 151460
IFP-100ECS 151458
IFP-300ECS LS10145-001SK-E
IFP-2100ECS LS10143-001SK-E
AUX
SBUS Address DIPs
VBUS 2
VBUS 1
USB
Microphone
Connector
SBUS
Audio
Trigger
AUX
Audio
Input
ECS-SW24 Connector
