Honeywell IFP-2100ECS Installation And Operation Guide

ECS Device Installation 151455
4-57
4.9 Installing the ECS-50WBU
The ECS-50WBU provides backup capability when operating the ECS-DUAL50W in the 100 watt with
backup mode for both single and dual channel setups.
The ECS-50WBU mounts above the ECS-DUAL50W board on the standoffs provided.
4.9.1 ECS-DUAL50W Board Layout

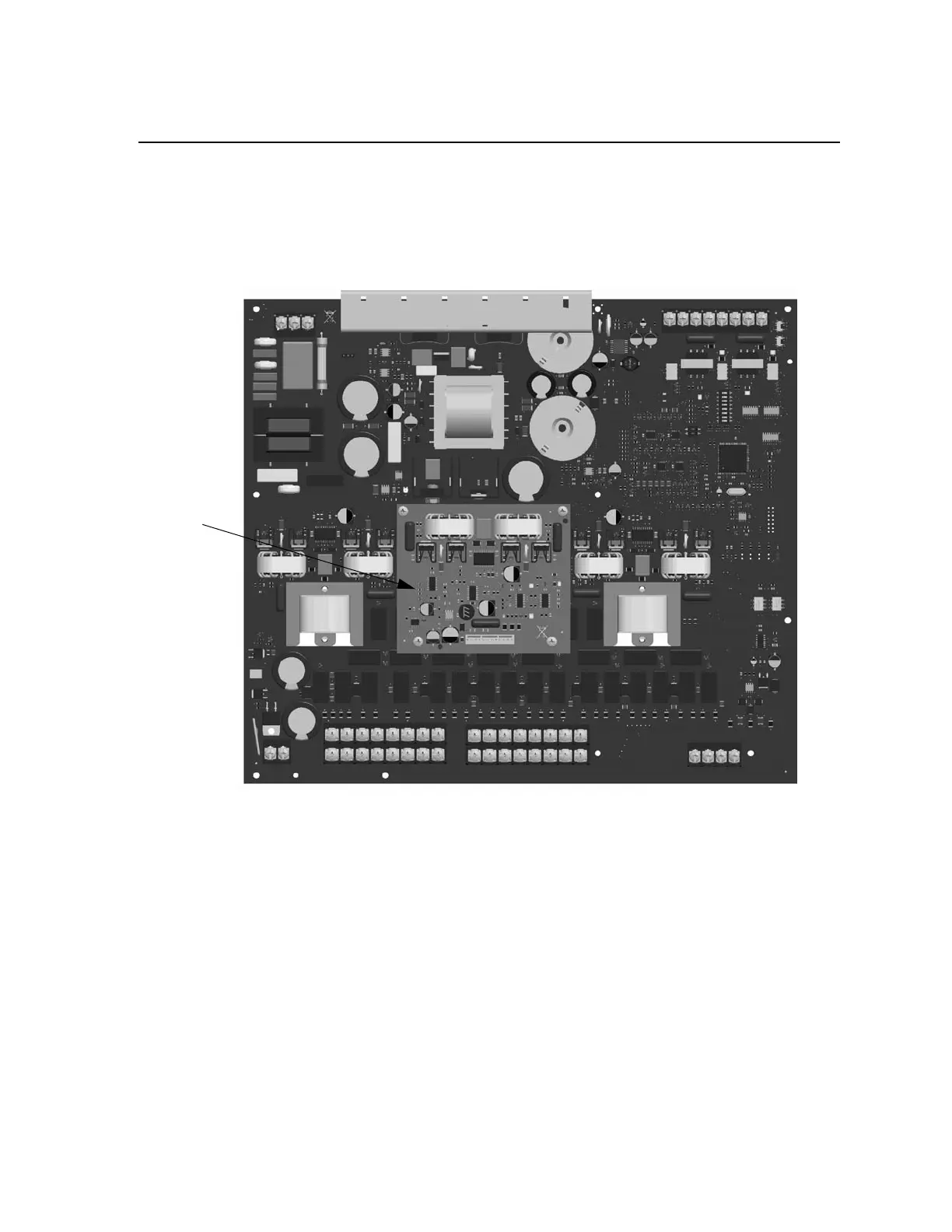

Figure 4-74 shows the location of the ECS-50WBU on the ECS-DUAL50W board.
Figure 4-74 Layout of ECS-50WBU
ECS-50WBU
