Honeywell IFP-2100ECS Installation And Operation Guide

ECS Series Emergency Communication System Installation Manual 151455
4-16
Figure 4-23 provides an example.

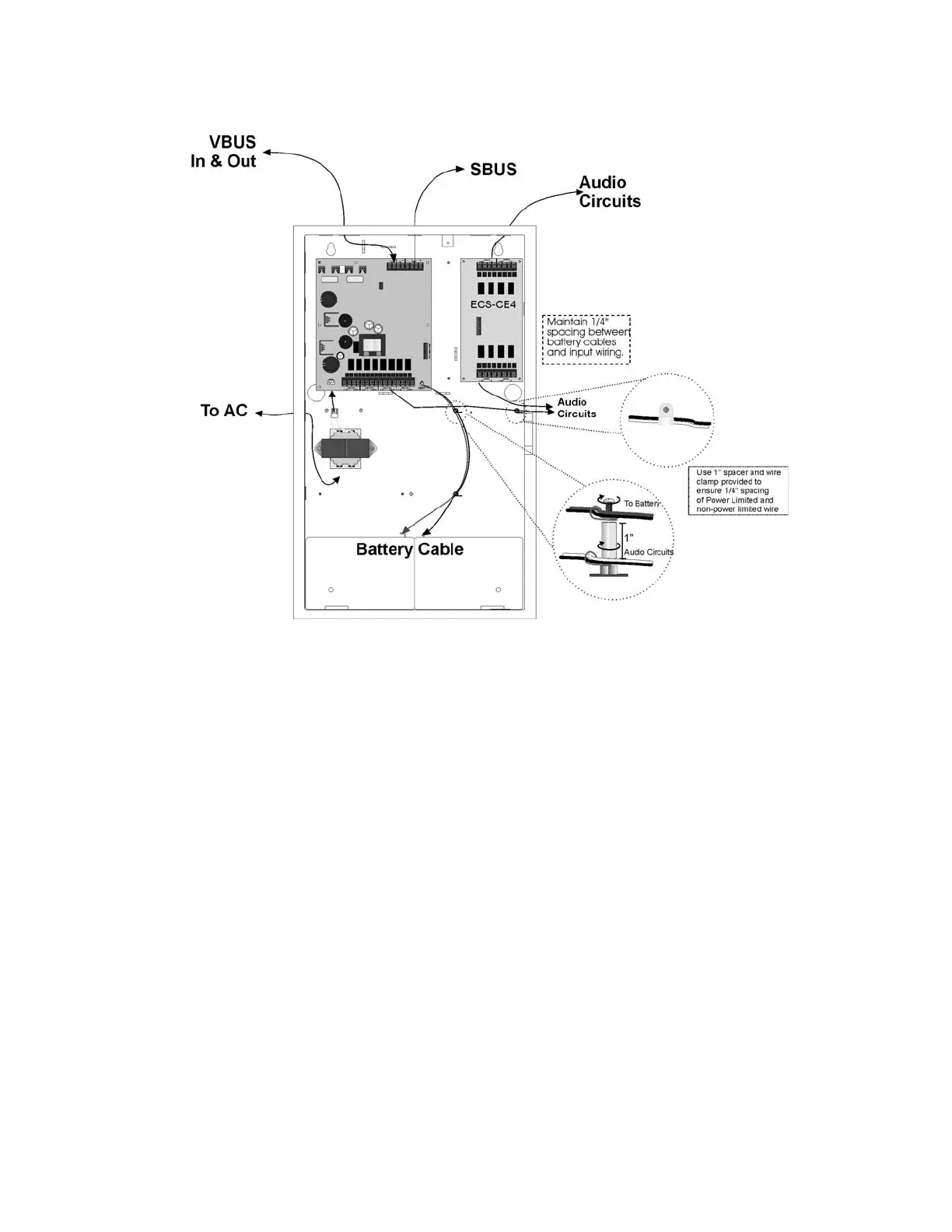

Figure 4-23 Wire Routing Example for ECS-50W
4.4.4 Speaker Wiring
Each ECS-50W supplies four NAC (Notification Appliance Circuit) for speaker connection. The
speaker circuit can be supervised and wired Class B (Style Y) or Class A (Style Z). The speaker circuit
is capable of 50 watts of power at 25 Vrms or 70.7 Vrms.
