Appendix A — Printer Specifications
MP Compact4 Mark III User Guide 39
Approved Media
To achieve optimum print quality and maximum printhead life, Honeywell
specifies the use of Honeywell brand media. These supplies are specially
formulated for use in our printers; use of non-Honeywell supplies may affect the
print quality, performance and life of the printer or its components.
For a current list of approved media for use in direct thermal applications,
please visit www.honeywellaidc.com.

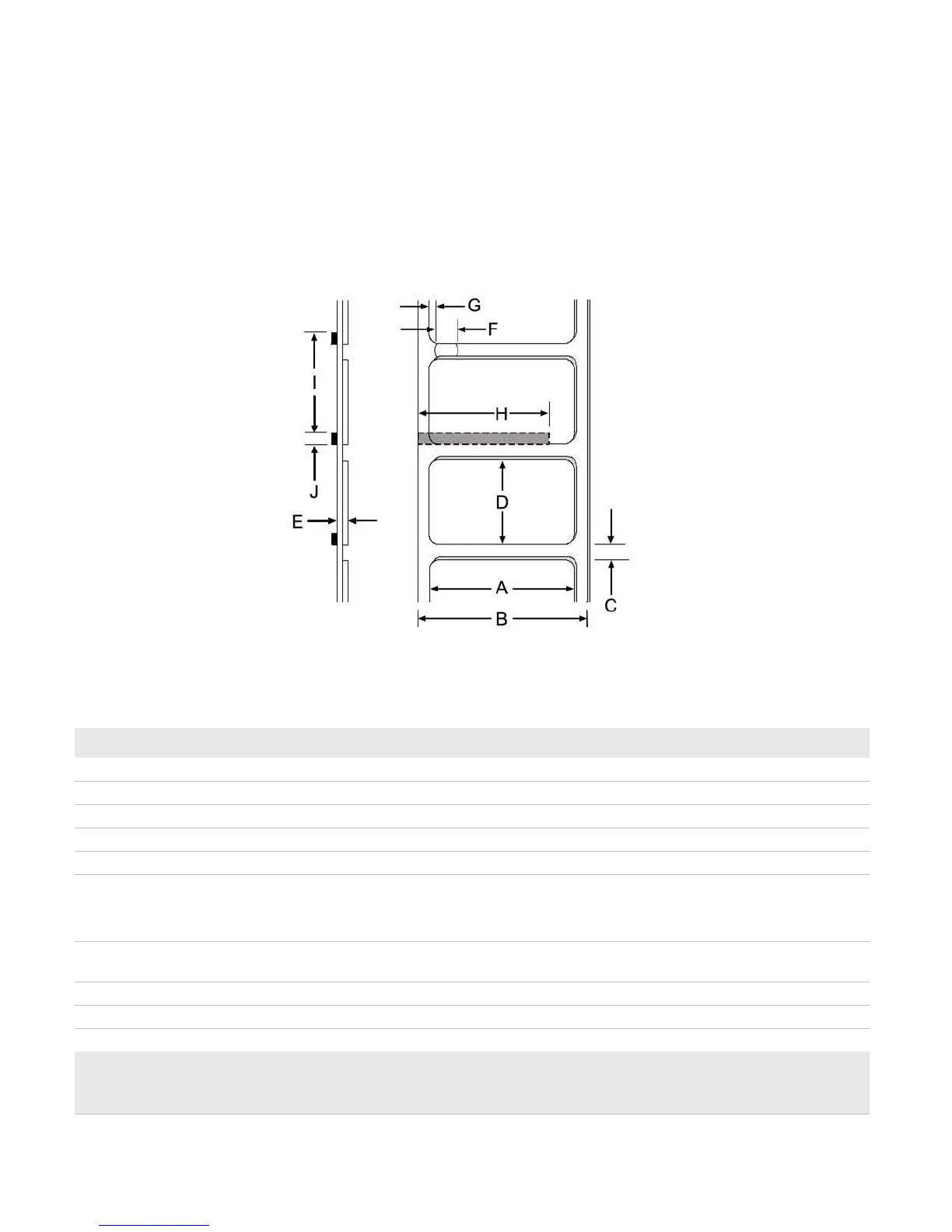

Media dimensions: Side view and top view
Media Dimensions
Designator Description Minimum
1
Maximum
2
A Label width 40 mm (1.58”) 115 mm (4.5”)
B Liner width 40 mm (1.58”) 115 mm (4.5”)
C Gap (or notch) between labels
2
1.7 mm (0.067”) 3 mm (0.12”)
D Label length 10 mm (0.39”) —
E Media thickness 58 μm (0.0023) 180 μm (0.0071”)
F Notch opening width
• Short sensor
• Long sensor
5 mm (0.20”)
23 mm (0.90”)
—
—
G Distance from media edge to media sensor aperture (left
justified)
1.7 mm (0.067”) 2 mm (0.08”)
H Reflective (black) mark width
1
40 mm (1.58”) 115 mm (4.5”)
I Distance between reflective marks
2
10 mm (0.39”) —
J Reflective mark length
2
1.7 mm (0.067”)
1
The reflective (black) mark must be carbon based, placed on the backside of the stock, and the reflectance shall be less than 10% at
wavelengths of 950 and 640 N m.
2
The maximum allowable length of the combined label and gap (or mark) measurement cannot exceed 2.54 m (99.99 in.).
