POL-200-TS User Manual

The ISO terminals must be properly wired and the devices must support Advanced Proto-

col to obtain the right mapping.

Devices like View FSL751 or Pinnacle only answer in CLIP protocol, so do not include an

isolator to be activated from POL200TS.

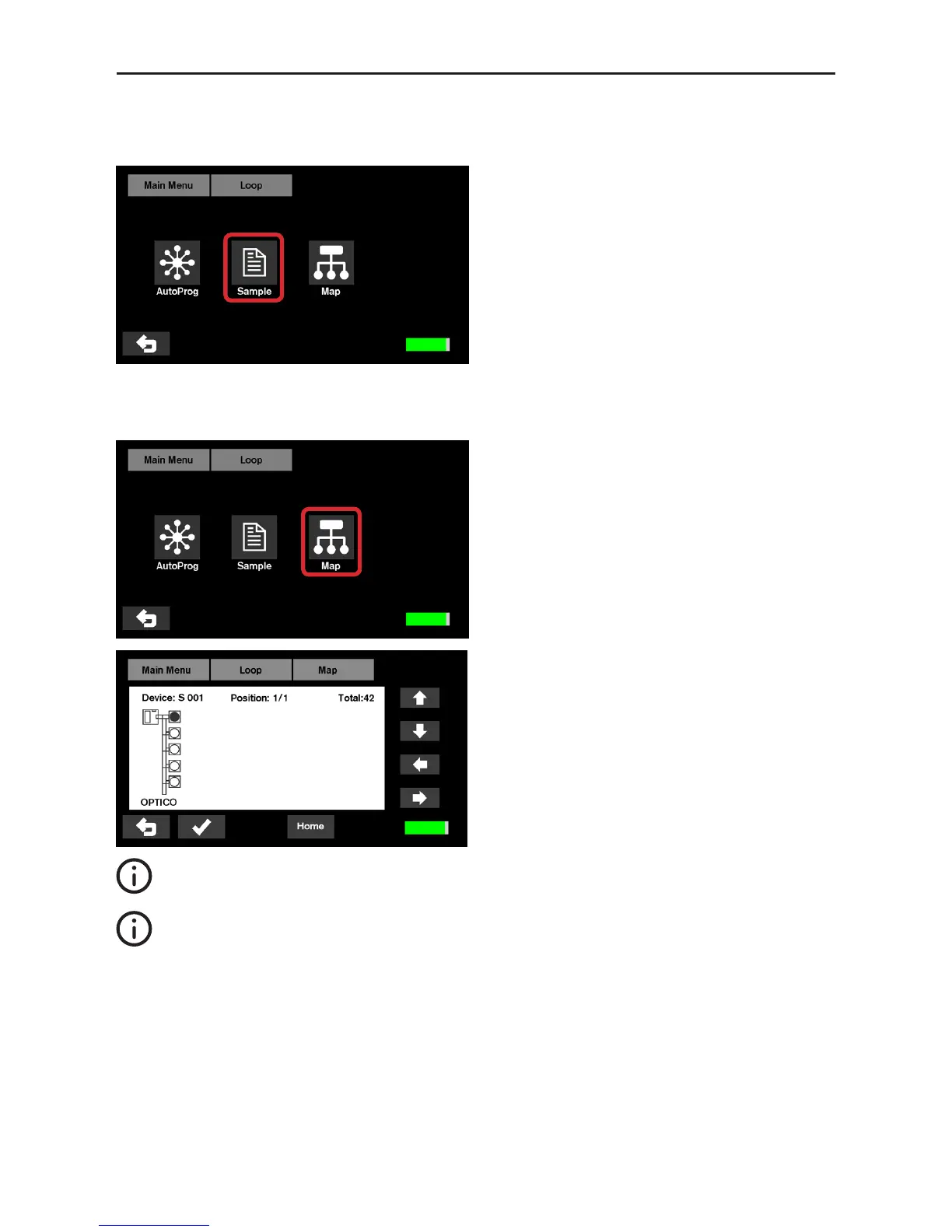

3.9 Map

3.8 Sample

By pressing “Map” it is possible to visual-

ly check the loop wiring map. Follow the in-

structions below:

If the installer has correctly wired the isolators

using the +IN, +OUT terminals in the B501AP

or in the module terminals, POL200TS will

activate the isolator and a graph is displayed.

POL200TS provides a device map for any

of the protocols, CLIP or Advanced. Given the

characteristics of each protocol, the position

of each device may change according to the

information obtained.

Remember that in CLIP protocol and mul-

ti-module devices, each input or output oc-

cupies one address in the loop. For Advanced

protocol only the main address will be visible.

The Sample option allows the user to select a

list of devices that will be monitored continu-

ously with detailed information in CLIP mode

for address below 99.
