l The angle of the clip should follow the contour of the
hard hat with the rubber stops on the back side of the
clip facing the hard hat.
l Align the tab of the clip to fit into the slot.
l Slide the clip into the slot until the tab clicks in place
and it is firmly seated.

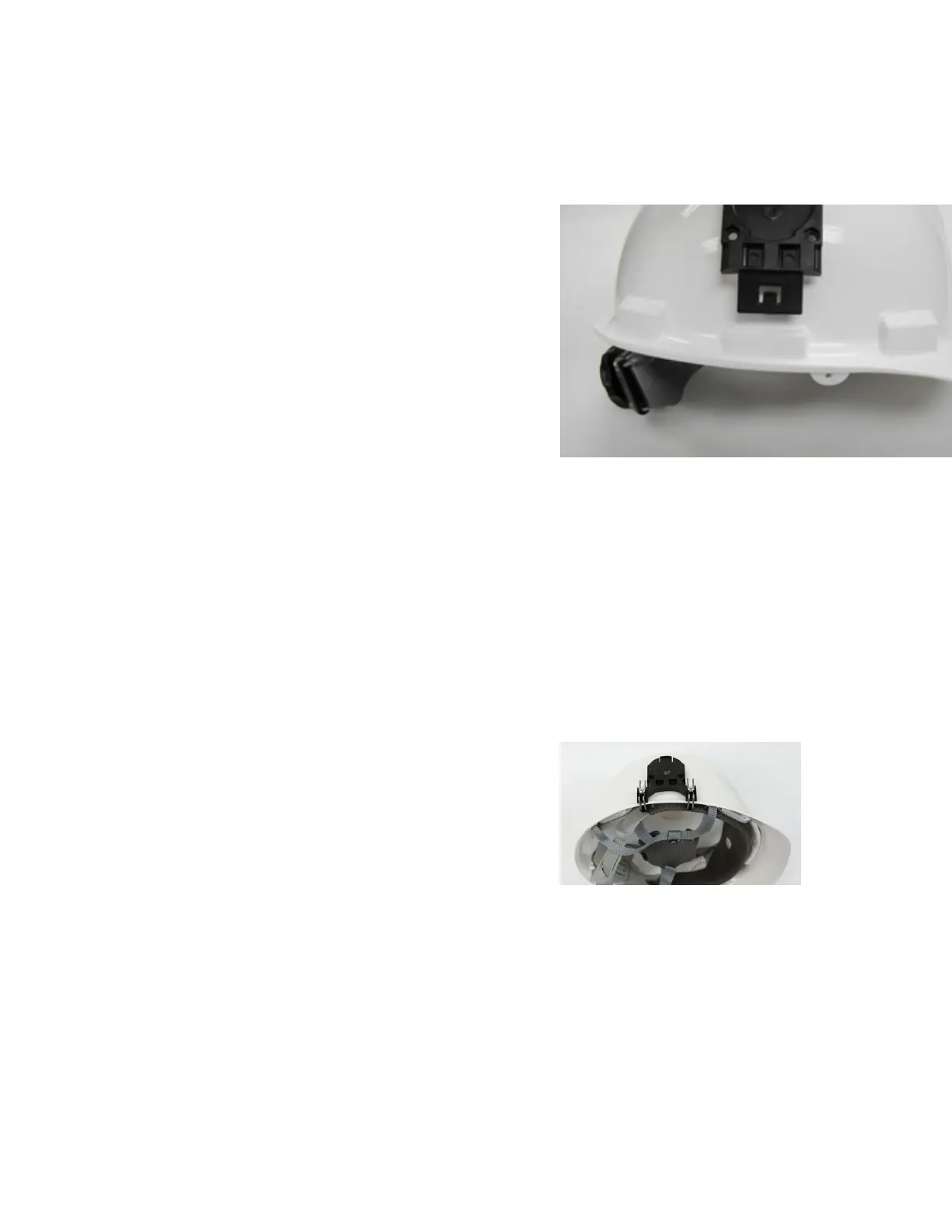

l Mounting a brim-mount clip on a hard hat
l Loosen the screws that secure the two clip brackets to
the clip.
For large brim hats, it may be necessary to remove the
brackets completely in order to fit them over the brim
without the clip in place.
l From the under side of the hat, slide the brackets over
the brim. If the brackets were removed, slide the
bracket ends back under the screws in the clip.
l Position the clip on the outside of the hard hat,
centered on the side of the hat.
l Tighten the screws to secure the bracket and clip to the
hard hat.
l Removing a clip from a hard hat
l For a slotted-mount clip, push the end of the spring
arms from under the brim in until they fit back through
the slot. It may be necessary to use a tool to pry the
arms from their installed position.
l For a brim-mount clip, loosen the bracket screws and
slide the brackets and clip off the hard hat.
29 SRX3 User Guide - Preliminary
