Mounting and Operating Instructions Doorguard for MB panels BUS-2 39

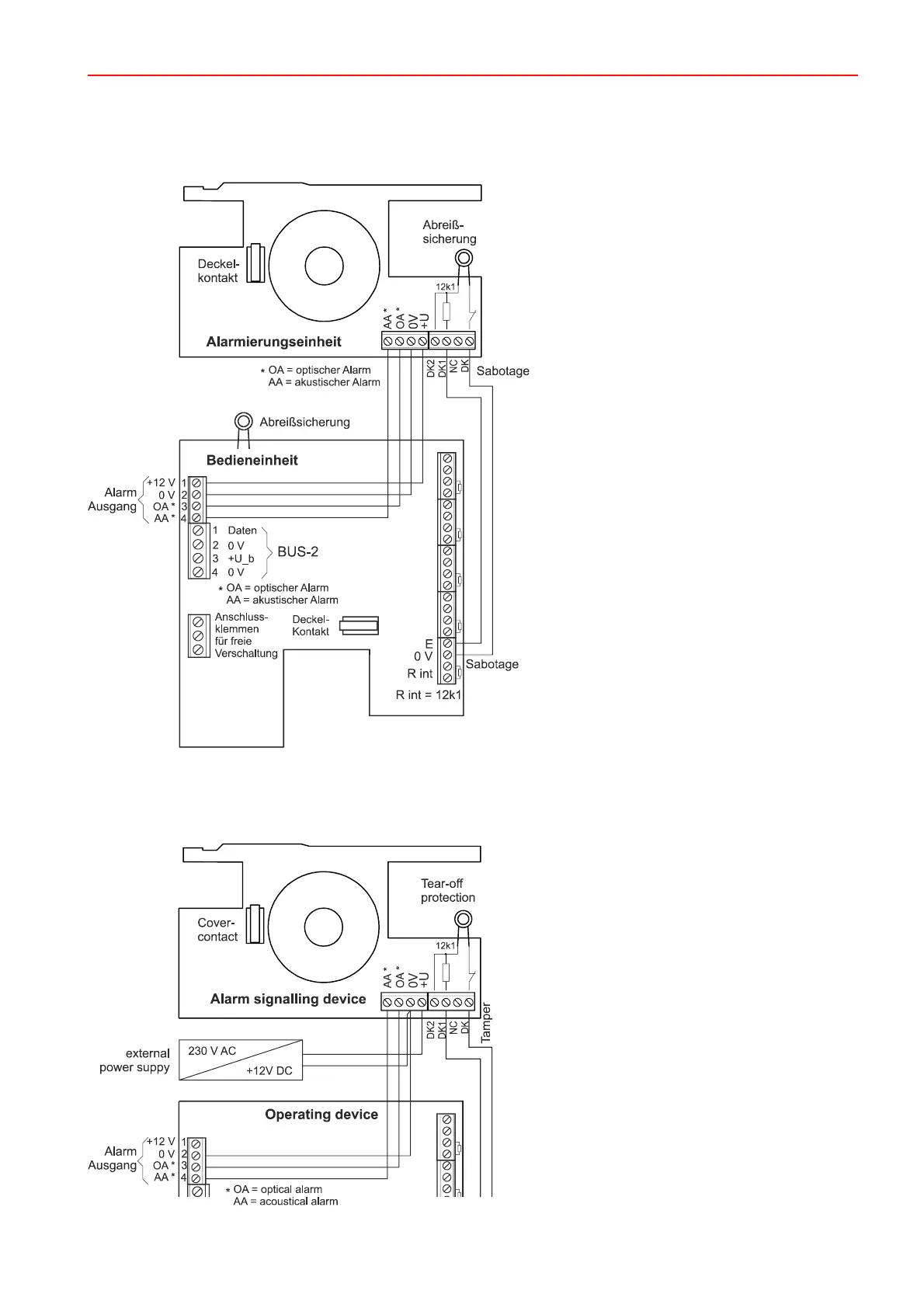

7.2 Alarm signalling device
7.2.1 Alarm signalling device with internal supply voltage
7.2.2 Alarm signalling device with external supply voltage
Notes to external supply voltage
The alarm signalling device can be supplied by an
external voltage source. (The operating unit must be
supplied via the BUS-2). The external supply voltage
must fulfill the following technical data on the
secondary side:
Operating voltage U_b 12 V DC
Operating voltage range 9 V DC to 15 V DC
Current per alarm signalling device min. 75 mA
Several alarm signalling devices can be supplied by
the same external supply voltage.
