VPI PRESSURE INDEPENDENT CONTROL VALVES & ACTUATORS

17 31-00383-01

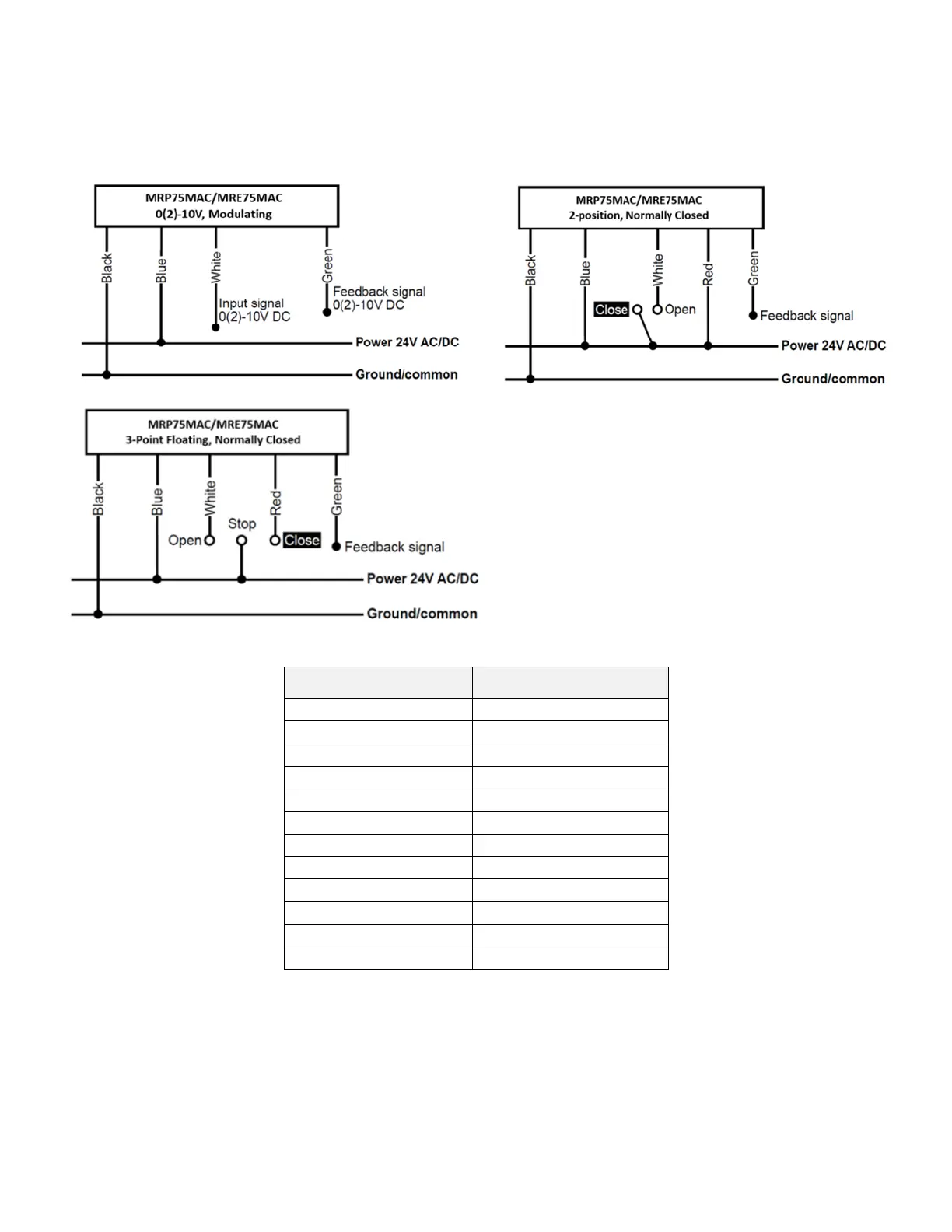

Electrical Wiring for Actuators Compatible to DN50-250

MRP75MAC / MRE75MAC

Table 5. List of Reference Valve Codes

Honeywell Part codes

Reference Valve Codes*

VPI050FPH4

50H

VPI065FPH4

65H

VPI080FPL4

80L

VPI080FPH4

80H

VPI100FPL4

100L

VPI100FPH4

100H

VPI125FPL4

125L

VPI125FPH4

125H

VPI150FPL4

150L

VPI150FPH4

150H

VPI200FPH4

200H

VPI250FPH4

250H

*While setting up the reference code on the valve, please select the reference code on the actuator to get the

maximum flow settings.

Proper Use1
Application1
Effective Flow Rate1
Flow Characteristic1
When Installing this Product2
Preparation2
Equipment Damage Hazard2
Mechanical Installation3
Installation for DN15-323
Flow Setting3
Dial Gauge for DN 15/20 (LF) and DN323
Flow Setting Chart for DN 15 -324
Replacement of Flow Regulator5
Procedure to Remove the Flow Regulator5
Procedure to Install the Flow Regulator5
Removing Flow Regulator from Valve Body5
Installation for DN40-506
DN40-50 Valve Components6
Flow Setting for DN40-507
Dial Gauge for DN 40- 507
Flow Setting Chart for DN40 – DN508
Flow Settings Chart for DN40-508
Installation of DN50-2509
Flow Direction Icon on DN50-250 Valve9
Groove Location on DN200-250 Valve9
Flow Setting Chart for DN50-10010
Flow Setting Chart for DN125-DN250 Picvs11
Control Curve of Flow12
Control Curve of Flow from MR Series Actuators12
Installation of Actuators Compatible with DN 15-5013
Procedure to Install the Actuator13
Mounting Position13
Procedure to Remove the Actuator13
Installation of Thermoelectric Actuators (MLP41TNA and MLP71TNA)14
Actuator Mounting for IP5414
Installation of Thermoelectric Actuator on Valve (Example)14
Installation of Actuators Compatible with DN50 – 25015
Actuator Assembly for DN 50-25015
Actuator De-Assembling15
Electrical Installations16
Electrical Wiring for Actuators Compatible to DN15-5016
MLP71MAA Actuators16
MLP41MNA Actuators16
MLE-71MAA Actuators17
Start up Sequence17
Auto Cycle Sequence17
Electrical Override17
MLP75MAB and MLE75MAB Actuators18
Configuration and Setup18
Re-Calibration (MLP75MAB)18
Manual Override (MLP75MAB)18
MLP41TNA and MLP71TNA (Thermoelectric) Actuators19
Electrical Override (MLE75MAB)19
Failsafe Mode (MLE75MAB)19
For Fail-Safe Actuators (MLE71MAA and MLE75MAB)20
For Non - Fail-Safe Actuators (MLE71MAA and MLE75MAB)20
LED Status20
Electrical Wiring for Actuators Compatible to DN50-25021
List of Reference Valve Codes21
Typical Display of MR Series Actuators22
List of Programming Menus22
Password22
Select Language22
In Operation for DN50 – DN25024
Display Details During Operation24
List of Information from Upper Part of Display During Operation24
Alarm Menu25
List of Error Display with Details25
Auto-Stroke Sequence for DN 50- 25026
Failsafe Mode for DN 50- 25026
Operation & Checkout26
Manual Override26
