WEB-700 WEB-700-O CP-700
21 95-7776—01
WEB-700; WEB-700-O; CP-700
EXTERNAL 12V BACKUP BATTERY
A 2-position connector provides support for an external 12V sealed lead-acid (SLA) type rechargable battery. For more details,
see About the Backup Batteries, page 23.

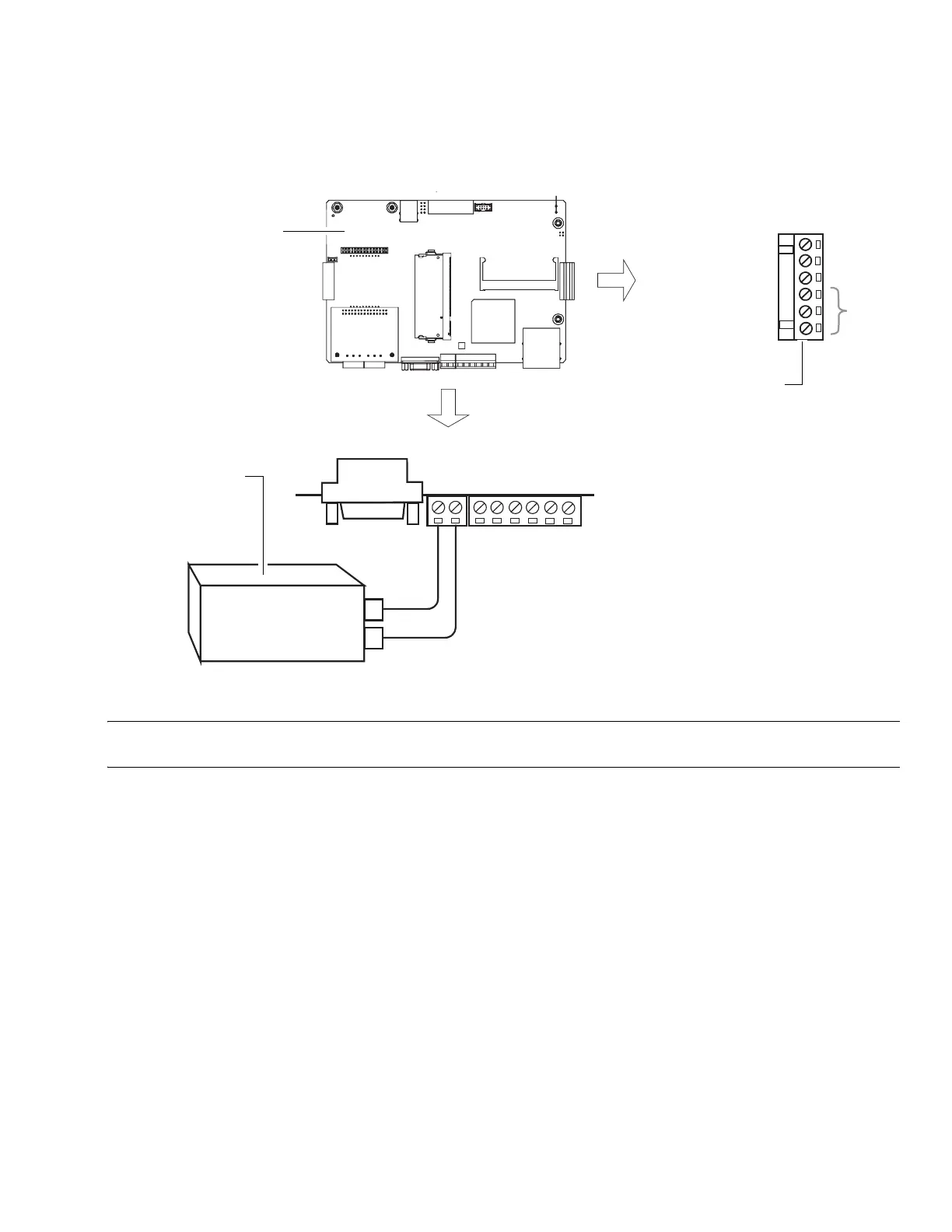

Fig. 11. Sealed lead-acid backup battery connection on WEB/CP-700.
NOTE: The minimum wire size for battery connections is 18AWG (1.0mm
2
) for up to 4 ft. (1.22m), or 16AWG (1.29mm
2
) for up
to 12 ft. (3.66m).
UPS AC
UPS B ATT
GND
GND
GND
DOOR TMP
–
+
BT+
BT–
PS+
PS–
BB
RS-485
WEB/
CP-700
712BNP 12V Sealed
Lead Acid Backup
Battery(ies)
15Vdc power and
backup battery
passed through
6-position
connector
To Next Page
