Media card reader board
Description Spare part number
Media card reader board (includes cable) 730897-001
Before removing the media card reader board, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the battery (see
Battery on page 33), and then remove the following components:
a. Service door (see
Service door on page 34)
b. Display assembly (see
Display assembly on page 46)
c. Bottom cover (see
Bottom cover on page 54)

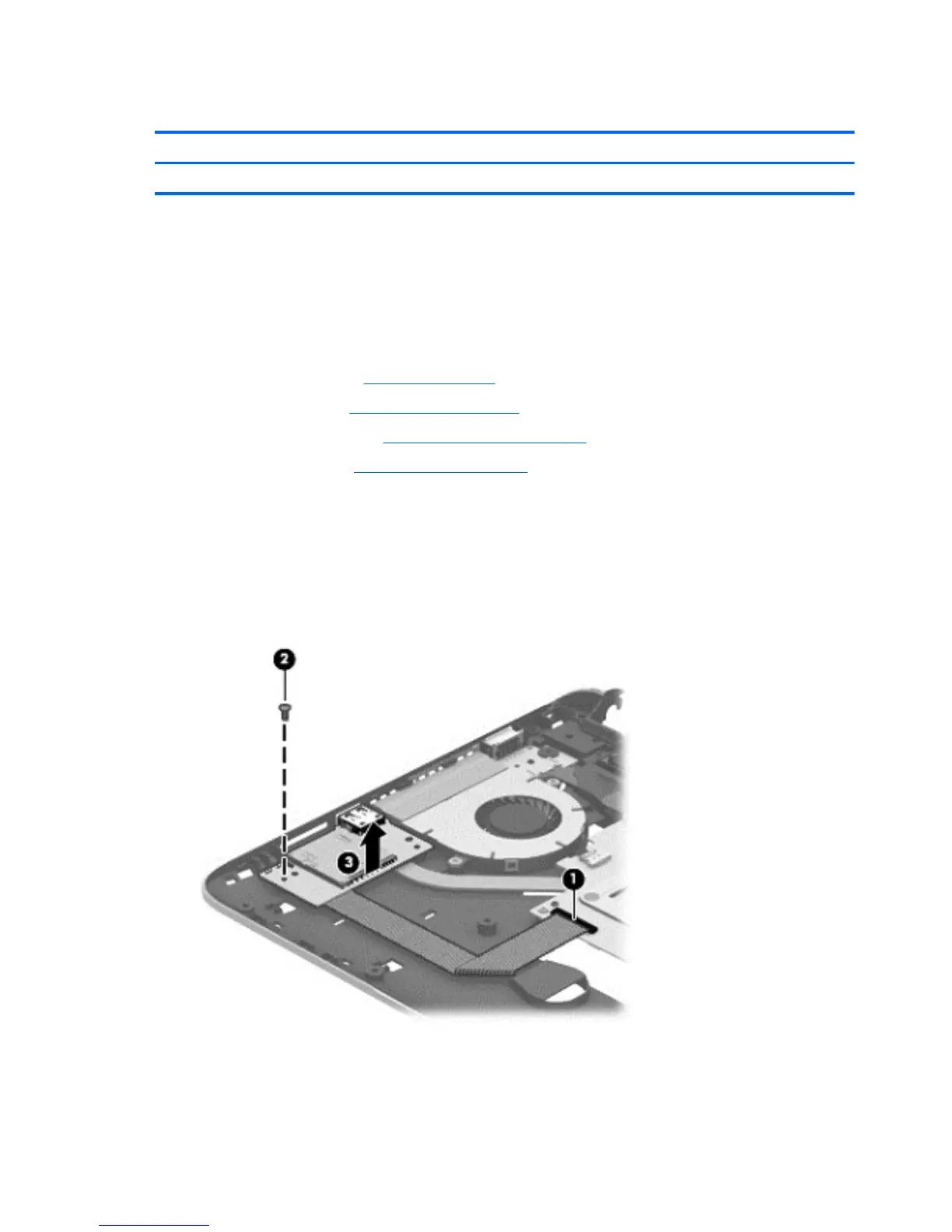

Remove the media card reader board:
1. Release the ZIF connector (1) to which the media card reader board cable is attached, and then
disconnect the media card reader board cable from the system board.
2. Remove the Phillips PM2.0×4.5 screw (2) that secures the media card reader board to the
top cover.
3. Remove the media card reader board (3) and cable.
Reverse this procedure to install the media card reader board.
60 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
