Front Bezel
Description Spare part number
Front bezel 710542-001
The front bezel is located on the front of the computer and is secured to the display panel bracket
with 6 screws. You can remove the bezel without removing most of the main computer components,
which the following procedure demonstrates.
To remove the front bezel while removing the minimal number of components:
1. Prepare the computer for disassembly (see
Preparing to Disassemble the Computer
on page 37).
2. Remove the rear cover (see
Rear Cover on page 38).
3. Remove the foot assembly (see
Foot assembly on page 41).
4. Remove the security bracket (see
Security Bracket on page 74).
5. Remove the side I/O cover (see
Side I/O Cover on page 65).

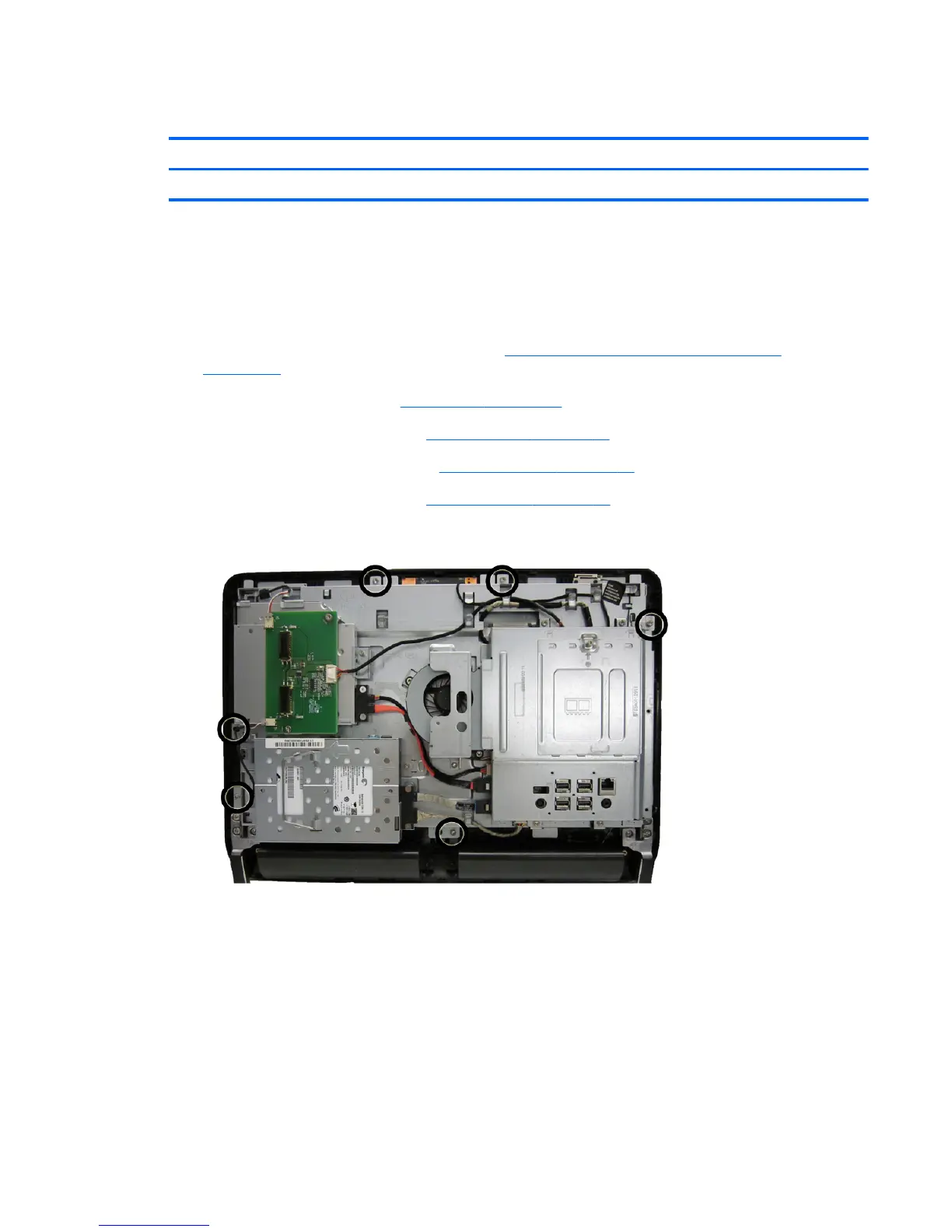

6. Remove the 6 screws that secure the bezel to the computer.
7. Lift the computer from the bezel.
To install the front bezel, reverse the removal procedures.
Front Bezel 75
