To detect a handshake violation
1 Select the timing analyzer Trigger menu.
2 Define the Edge1 term to represent either transition on the first
handshake line, and the Edge2 term to represent either transition on
the second handshake line.
You can rename these terms to match your problem, for example, to REQ
and ACK.
3

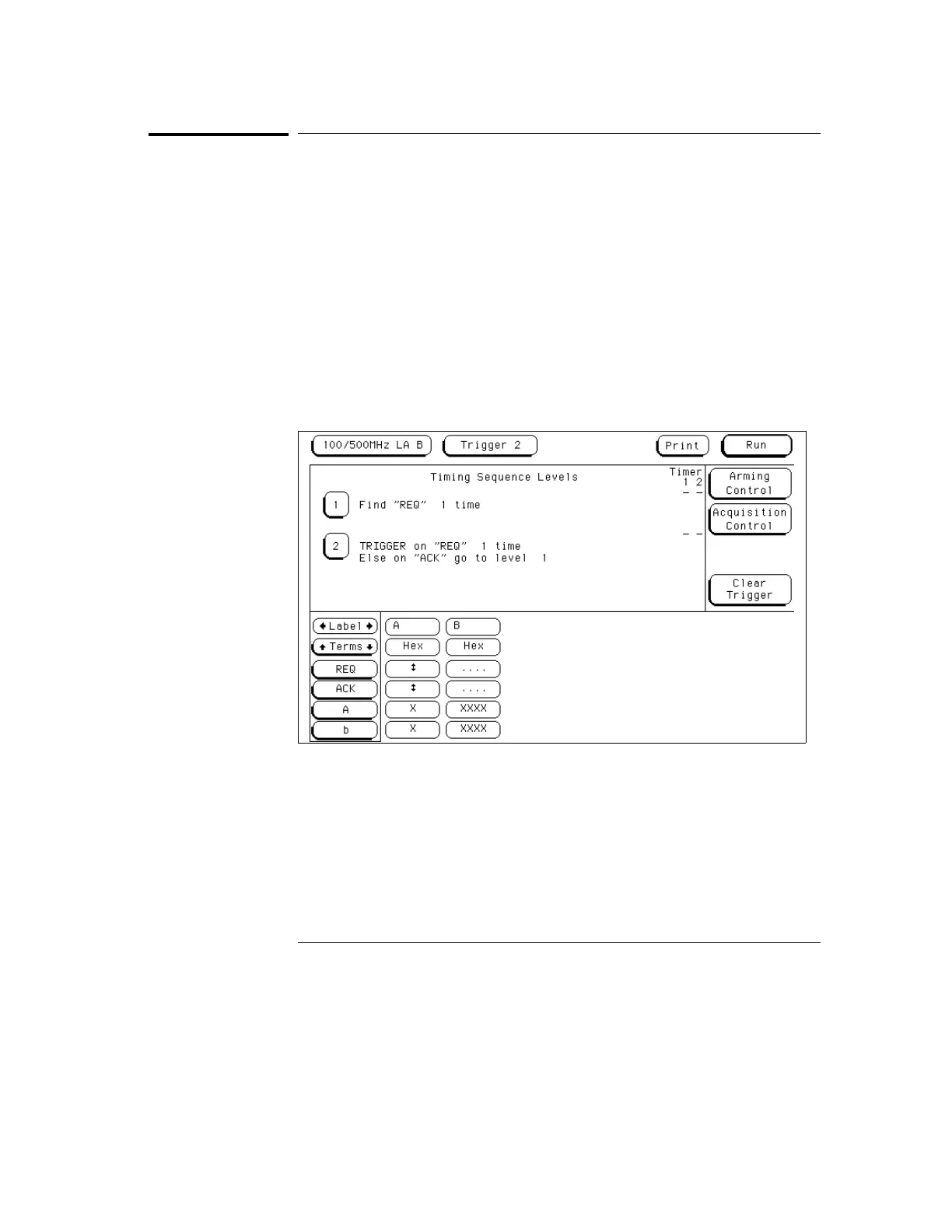

Under Timing Sequence Levels, enter the following sequence
specification:
•
Find “REQ” 1 time
•
TRIGGER on “REQ” 1 time Else on “ACK” go to level 1
Triggering on a Handshake Violation
Triggering
To detect a handshake violation
1–20
