HP 5344S User Manual

Operating Information
Model 8756A
3-2

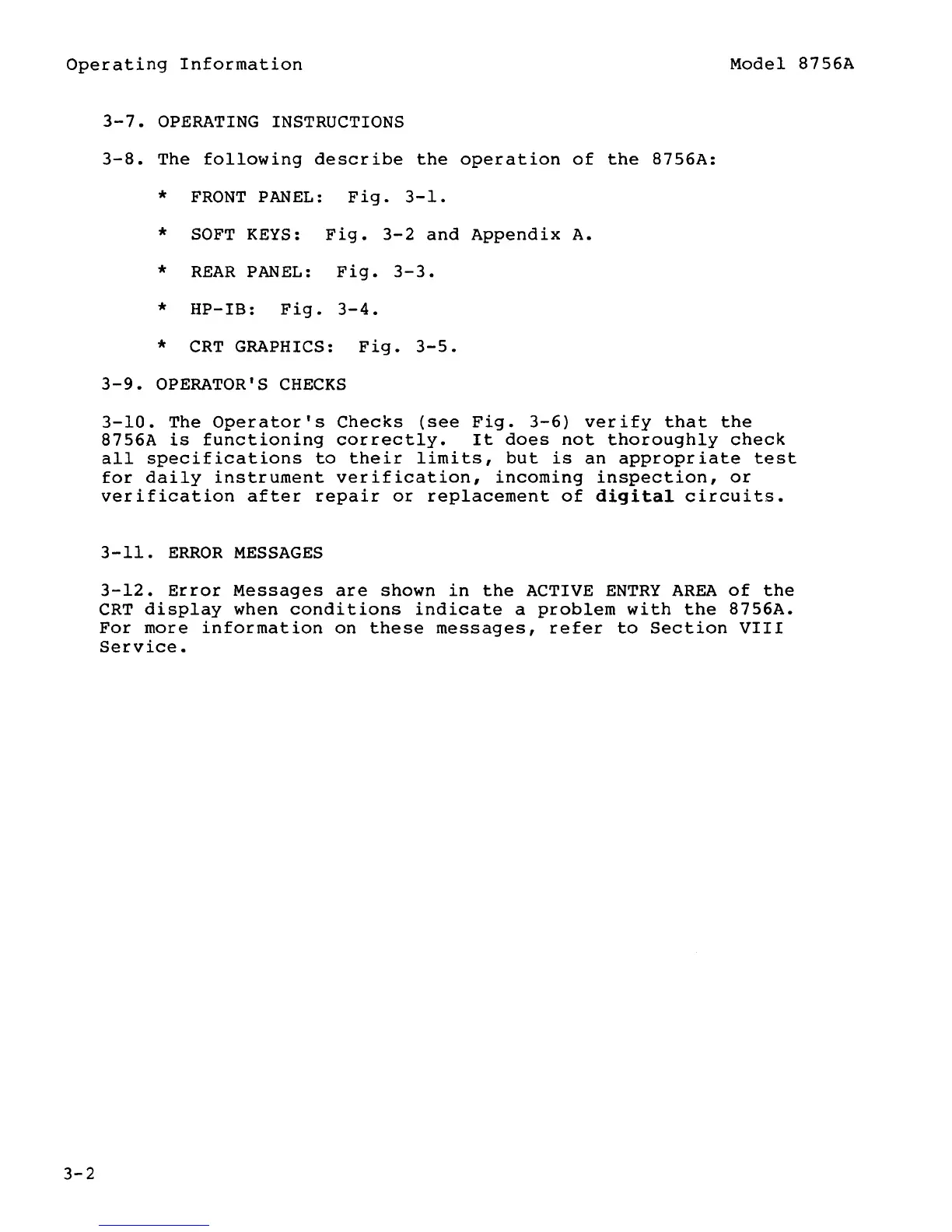

3-7. OPERATING INSTRUCTIONS
3-8. The following describe the operation of the 8756A:
*
FRONT PANEL: Fig. 3-l.
*
SOFT KEYS: Fig. 3-2 and Appendix A.
*
REAR PANEL: Fig. 3-3.
* HP-IB: Fig. 3-4.
* CRT GRAPHICS: Fig. 3-5.
3-9. OPERATOR'S CHECKS
3-10. The Operator's Checks (see Fig. 3-6) verify that the
8756A is functioning correctly. It does not thoroughly check
all specifications to their limits, but is an appropriate test
for daily instrument verification, incoming inspection, or
verification after repair or replacement of digital circuits.
3-11. ERROR MESSAGES
3-12. Error Messages are shown in the ACTIVE ENTRY AREA of the
CRT display when conditions indicate a problem with the 8756A.
For more information on these messages, refer to Section VIII
Service.
