Operating Information
Model 8756A
PROCEDURE
The following Procedure assumes a working familiarity with the
8756A front panel controls. Refer to Fig. 3-1 for more
information on operating the 8756A Front Panel, if necessary.
Refer also to the Sweep Oscillator Operating & Service Manual
for its operation.
Self-Test, HP INTERFACE BUS, and 8756 SYSTEM INTERFACE Checks
1. Set up the equipment as shown below.
/
HP·IB
CABLE
-
HP INTERFACE
8756 SYST
BUS
INTERFAC
.....,
D
CJ! 'D
00000
D
D D
DODD
D
DODD
§:
o, ,o
000000
D
D D
DCJDD
D
D D
D
---'
• • •
SCALAR
NETWORK ANALYZER
EM
Operator's Setup for Self-Test, HP-IB, and 8756 SYSTEM
INTERFACE Checks
2. Turn on the 8756A. Press [PRESET] to start the built-in
Self-Test routine. If the Self-Test passes, the graticule,
MODE LABELS, and MAIN MENU will appear on the display. If
the Self-Test fails, an error message will be displayed in
the ACTIVE ENTRY AREA.
3. On the 8756A, press the Soft Keys [MORE] [SERVICE] [A6
HPIB] • Press the Soft Key [HPIB LSTN] to begin the first
HP-IB test. If this test passes, the message "HPIB LSTN
PASS" will appear in the ACTIVE ENTRY AREA. If this test
fails, a FAIL message will appear. Press [MAIN MENU] to
end this test.
4. Press the Soft Key [A6 HPIB] again to run the second HP-IB
test, then press the Soft Key [HPIB TALK]. If this test
passes, the message "HP TALK PASS" will appear in the
ACTIVE ENTRY AREA. If this test fails, a FAIL message will
be displayed. Press [PRESET] to end this test, and remove
HP-IB cable.

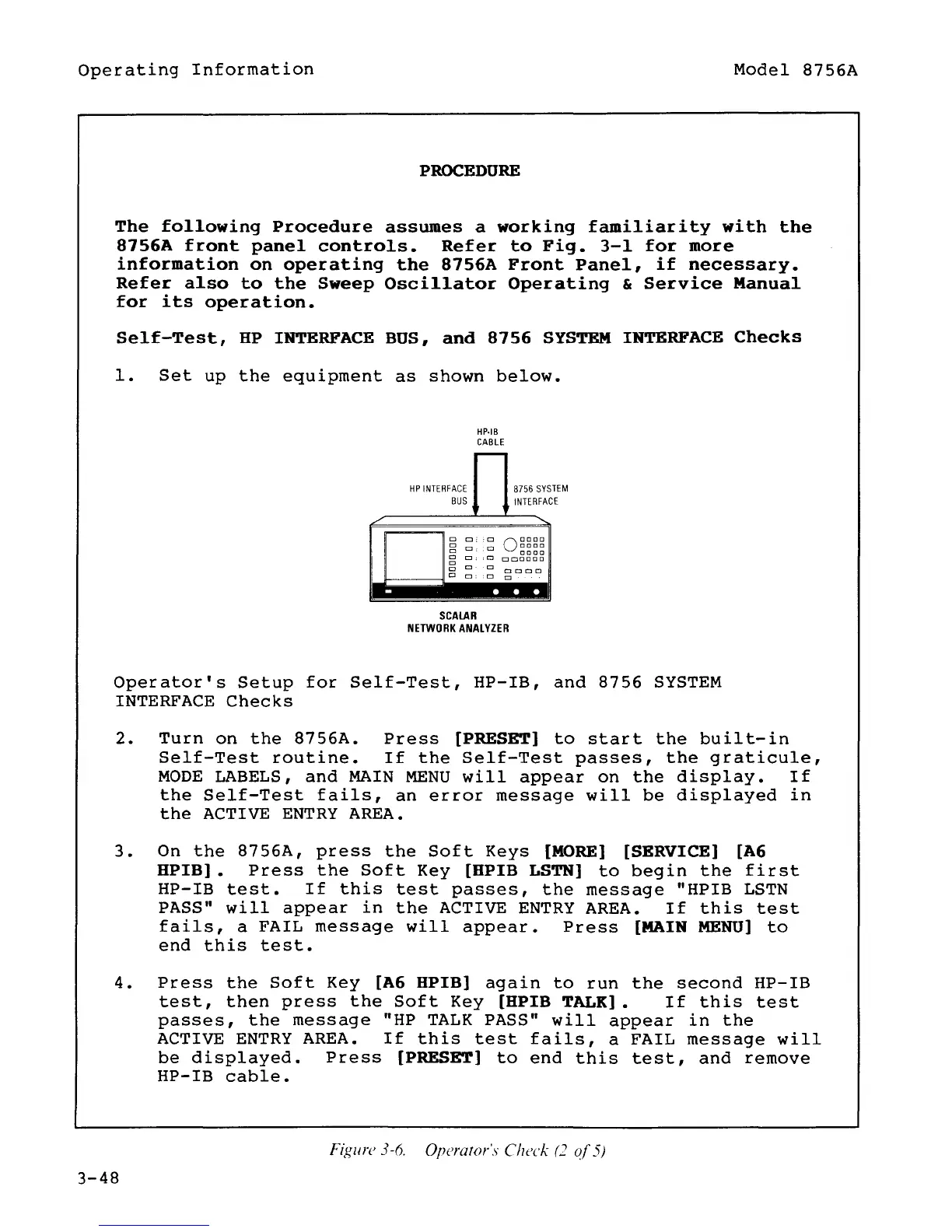

Figure 3-6. Operator's Check (2 of 5)
3-48
