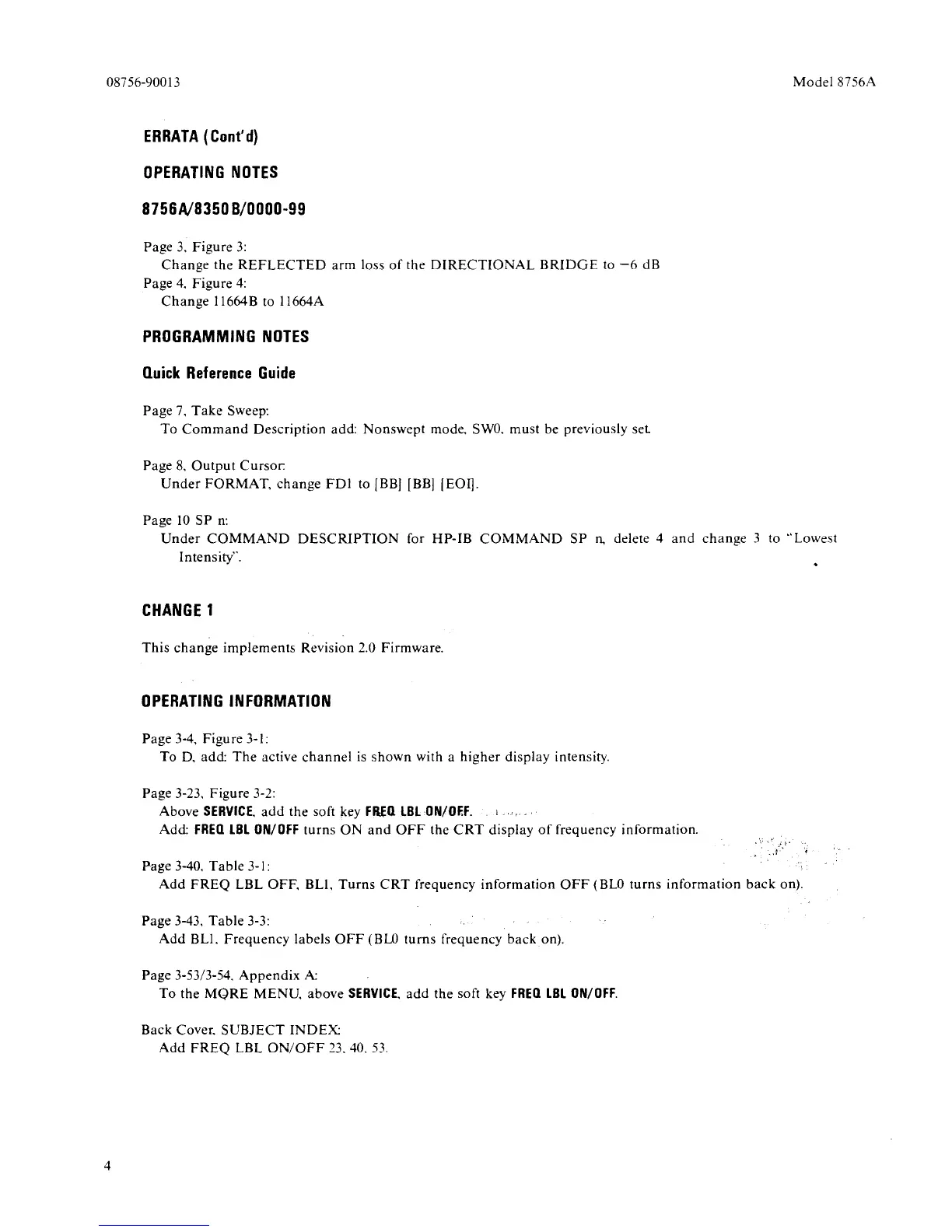

ERRATA (Cont'd)
OPERATING NOTES
8756A/8350 8/0000-99
Page 3. Figure 3:
Change the REFLECTED arm loss of the DIRECTIONAL BRIDGE to -6 dB
Page 4. Figure 4:
Change 11664B to 11664A
PROGRAMMING NOTES
Quick Reference Guide
Page 7. Take Sweep:
To Command Description add: Nonswept mode, SWO. must be previously set
Page 8, Output Cursor.
Under FORMAT, change FDl to (BB) [BB) [EOI).
Page 10 SP n:
Under COMMAND DESCRIPTION for HP-IB COMMAND SP n, delete 4 and change 3 to "Lowest
Intensity".
CHANGE 1
This change implements Revision 2.0 Firmware.
OPERATING INFORMATION
Page 3-4, Figure 3-1:
To D, add: The active channel is shown with a higher display intensity.
Page 3-23, Figure 3-2:
Above SERVICE. add the soft key FREQ LBL ON/OF.F. 1 • , , •.
Add: FREQ LBL ON/OFF turns ON and OFF the CRT display of frequency information.
Page
3-40, Table 3-1:
Add FREQ LBL OFF, BLI, Turns CRT frequency information OFF (BLO turns information back on).
Page 3-43, Table 3-3:
Add BLI. Frequency labels OFF (BLO turns frequency back on).
Page 3-53/3-54. Appendix A:
To the MGRE MENU. above SERVICE. add the soft key FREQ LBL ON/OFF.
Back Cover. SUBJECT INDEX
Add FREQ LBL ON/OFF 23. 40. 53.
