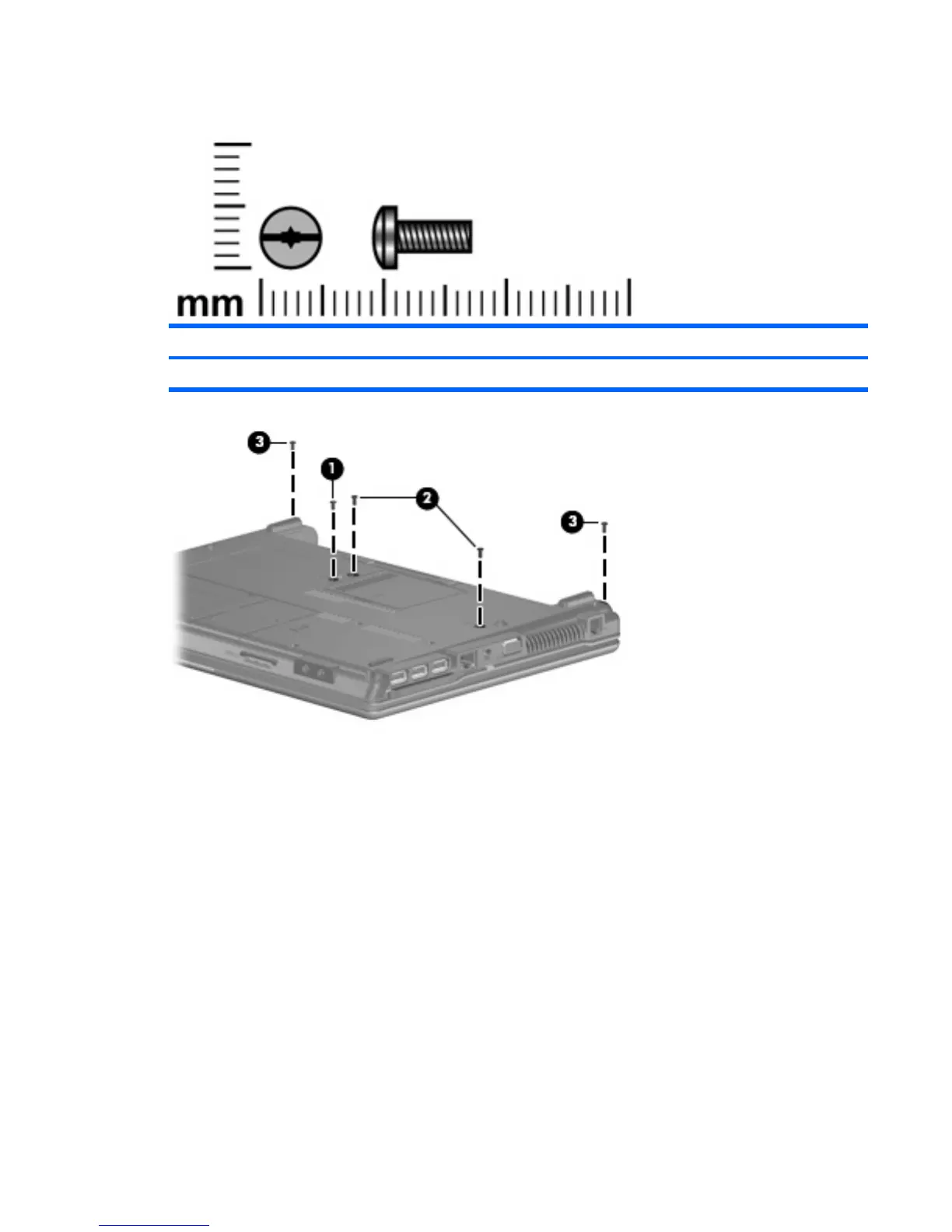

Slotted Torx ST8M2.5×7.0 screw
Color
Q
uantity
Length
Thread
Head diameter
Black
18
7.0 mm
2.5 mm
5.0 mm
Where used
:
(1)
One screw that secures the op
tical drive to the computer
(2)
Two screws that secure th
e keyboard to t
he computer
(3)
Two screws that secure the
switch cover to the computer
Slotted Torx ST8M2.5×7.0 screw
103
110
112
Table of Contents
Default Chapter
5
Table of Contents
5
1 Product Description
9
2 External Component Identification
15
Top Components
15
Touchpad
15
Buttons, Lights, and Speaker
16
Keys
17
Front Components
18
Right-Side Components
18
Left-Side Components
19
Bottom Components
20
Wireless Antennae (Select Models Only)
21
3 Illustrated Parts Catalog
22
Serial Number Location
22
Computer Major Components
23
Plastics Kit
27
Cable Kit
28
Mass Storage Devices
29
Miscellaneous Parts
30
Sequential Part Number Listing
32
4 Removal and Replacement Procedures
37
Preliminary Replacement Requirements
37
Tools Required
37
Service Considerations
37
Plastic Parts
37
Cables and Connectors
38
Drive Handling
38
Grounding Guidelines
39
Electrostatic Discharge Damage
39
Packaging and Transporting Guidelines
40
Workstation Guidelines
40
Equipment Guidelines
41
Unknown User Password
42
Component Replacement Procedures
43
Serial Number
43
Computer Feet
44
Battery
45
Hard Drive
46
WLAN Module
48
Memory Module
51
Optical Drive
53
Switch Cover and Keyboard
55
Speaker
59
Display Lid Switch Module
60
Display Assembly
61
Top Cover
66
Touchpad Board and Touchpad Button Board
69
Bluetooth Module
72
System Board
74
Fan
77
Heat Sink
79
Processor
82
Modem Module
84
RTC Battery
86
Expresscard Assembly
87
5 Computer Setup
89
Starting Computer Setup
89
Using Computer Setup
90
Navigating and Selecting in Computer Setup
90
Restoring Factory Settings in Computer Setup
90
Computer Setup Menus
91
File Menu
91
Security Menu
92
Diagnostics Menu
92
System Configuration Menu
93
6 Specifications
96
Computer Specifications
96
14.1-Inch, WXGA Display Specifications
97
Hard Drive Specifications
98
DVD±RW and CD-RW Double-Layer Combo Drive Specifications
99
DVD/CD-RW Combo Drive Specifications
100
System DMA Specifications
101
System Interrupt Specifications
102
System I/O Address Specifications
103
System Memory Map Specifications
105
7 Screw Listing
106
Phillips PM2.0×5.0 Captive Screw
107
Phillips PM2.5×12.0 Captive Screw
108
Phillips PM3.0×4.0 Screw
109
Phillips PM2.5×4.0 Screw
110
Slotted Torx ST8M2.5×7.0 Screw
111
Phillips PM2.0×4.0 Screw
114
Torx T8M2.5×3.0 Broad-Head Screw
116
Torx T8M2.5×4.0 Screw
117
Torx T8M2.5×6.0 Screw
118
Phillips PM2.0×2.0 Broad-Head Screw
119
Phillips PM2.0×6.0 Screw
120
Phillips PM2.5×7.0 Screw
121
Phillips PM2.5×7.0 Captive Screw
122
Phillips PM2.5×10.0 Captive Screw
123
Phillips PM2.0×8.0 Screw
125
8 Backup and Recovery
126
Backup and Recovery in Windows Vista
127
Overview
127
Backing up Your Information
127
Performing a Recovery
128
Using the Windows Recovery Tools
128
Using a Windows Vista Operating System DVD (Purchased Separately)
129
Using F11
129
Backup and Recovery in Windows XP
131
Overview
131
Backing up Your Information
131
Performing a Recovery
132
Recovering the Operating System and Programs
132
Recovering Your Information
132
9 Connector Pin Assignments
133
Audio-Out (Headphone)
133
Audio-In (Microphone)
133
External Monitor
134
Modem)
135
Network)
136
Universal Serial Bus
136
10 Power Cord Set Requirements
137
Requirements for All Countries and Regions
137
Requirements for Specific Countries and Regions
138
11 Recycling
139
Battery
139
Display
139
Index
145
