Power connector cable
Description Spare part number
Power connector cable 641394-001
Before removing the power connector cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 43), and then remove the following components:
{
Optical drive (see
Optical drive (select models only) on page 44)
{
Keyboard (see
Keyboard on page 53)
{
Top cover (see
Top cover on page 56)
{
USB board (see
USB board on page 62)
Remove the power connector cable:
1. Close the computer.
2. Turn the computer upside down, with the front toward you.

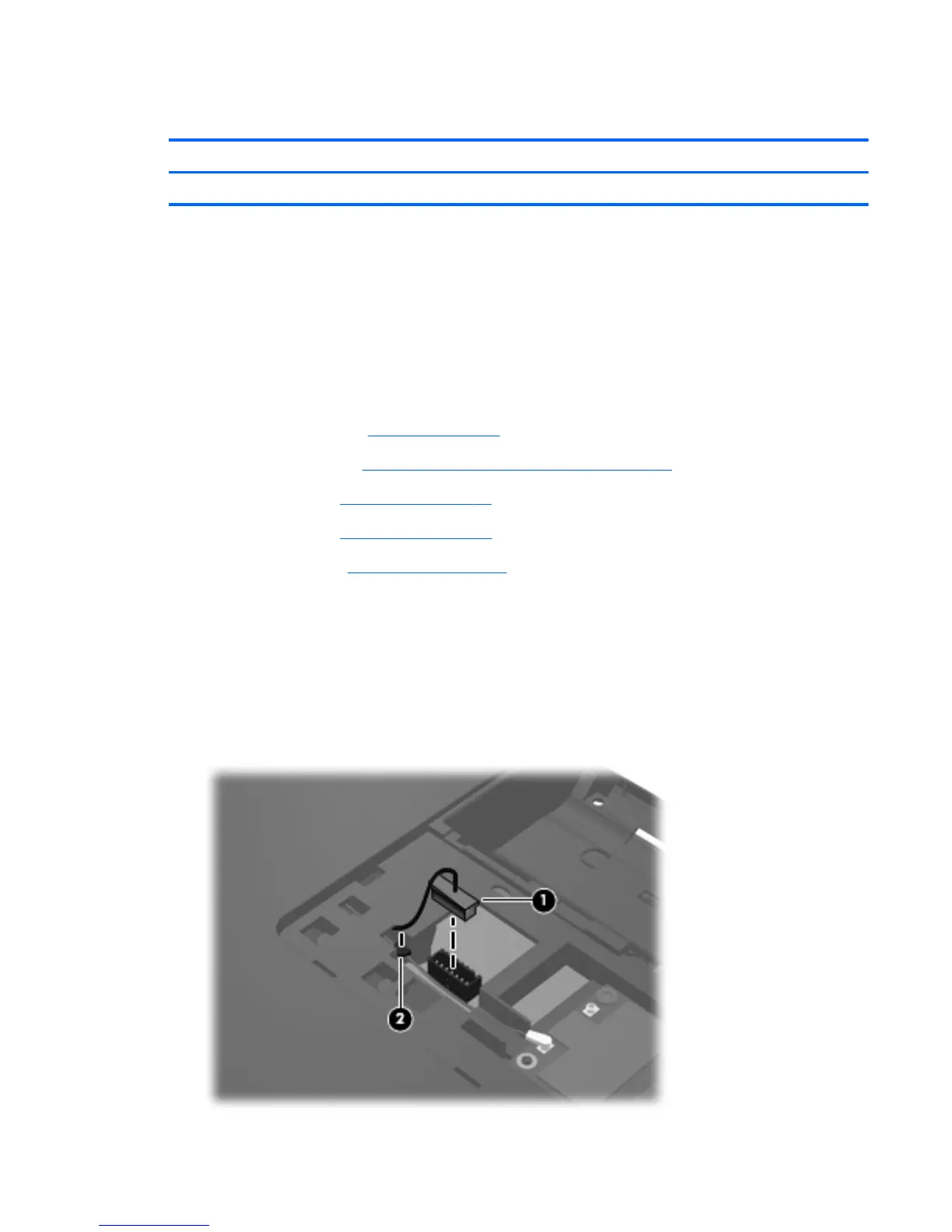

3. Disconnect the power connector cable (1) from the system board.
4. Release the power connector cable from the clips (2) built into the base enclosure.
Component replacement procedures
63
