2.5 Remove the Side Panel
Remove the side panel of the cabinet into which you are going to install the
I/O drawer. You need access to the side rails of this cabinet to properly
ground your I/O drawer.

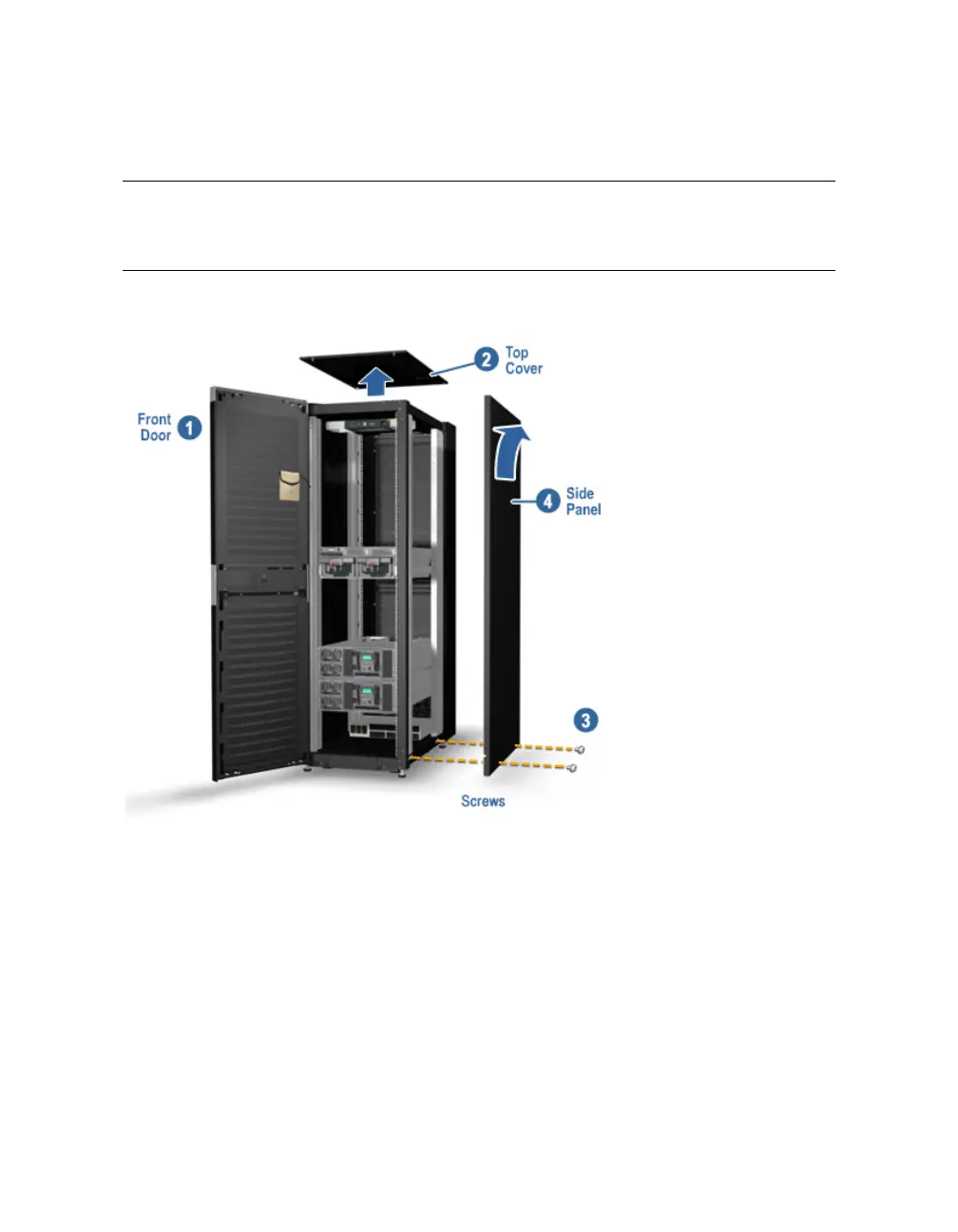

Figure 2–2 Remove Side Panel (Example)
d. Open the front door.
e. Pry the top panel off and lift it up. Set it aside.
f. For 34U and 41U cabinets, remove the screws at the bottom of the side panel (front and
rear). In this illustration, it is the right side panel (as viewed from the front). If your
cabinet is a 42U cabinet, use your door key to unlock the side panels and then proceed.
g. Starting at the bottom, pry the side panel away from the cabinet
Lift the side panel out and up, and remove it.
Prepare the System 2-7
