Bottom cover
Table 5-1 Bottom cover, Rubber Foot Kit, and Miscellaneous Kit descriptions and part numbers
Description Spare part number
Bottom cover for use in cloud blue models L54802-001
Bottom cover for use in mineral silver models L54803-001
Rubber Foot Kit for use on cloud blue models L54801-001
Rubber Foot Kit for use on mineral silver models L54833-001
Miscellaneous Kit (includes screw covers) L54819-001
Before disassembling the computer, follow these steps:
▲ Prepare the computer for disassembly (Preparation for disassembly on page 22).

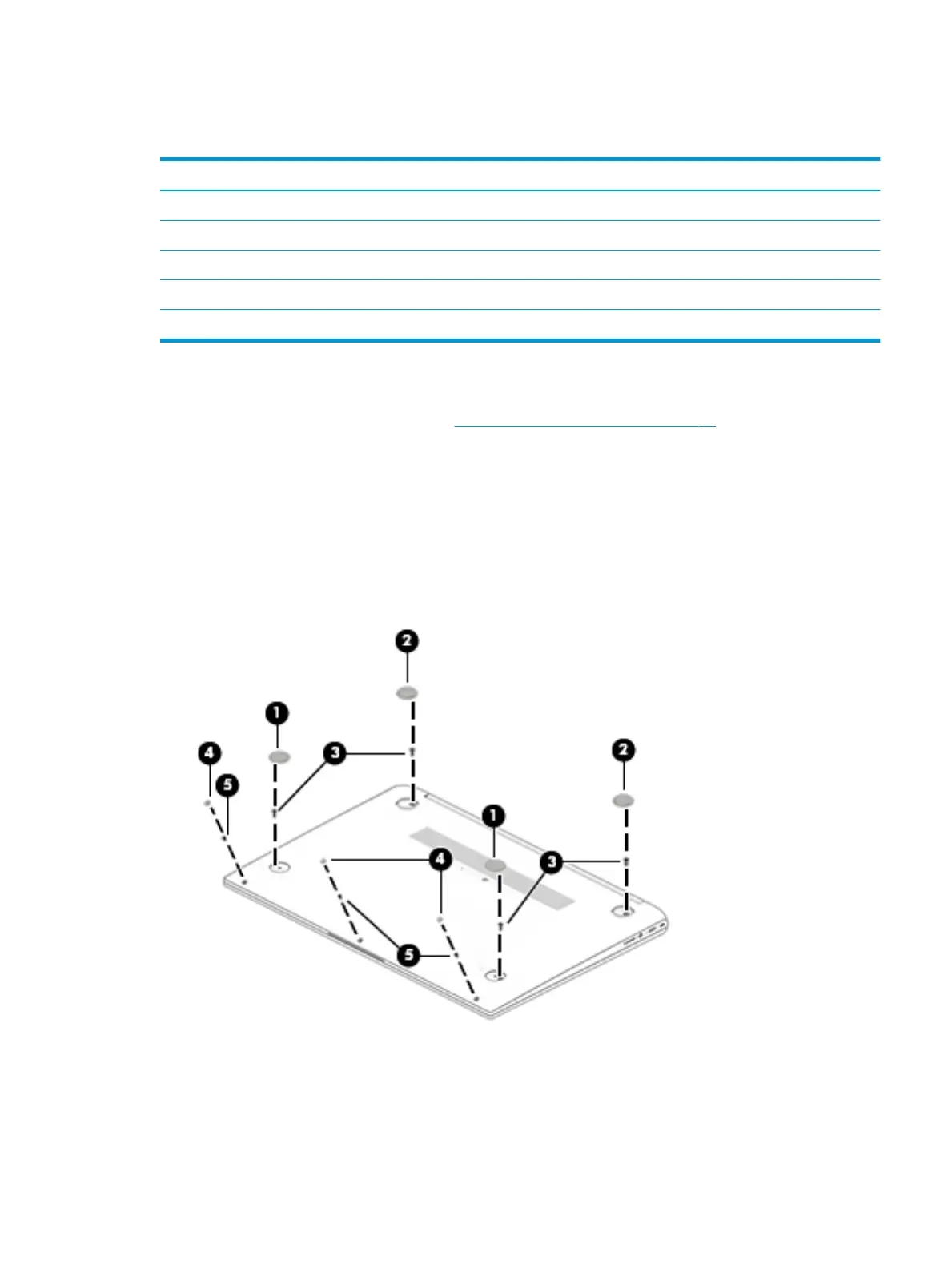

Remove the rubber feet and bottom cover:
1. Position the computer upside down.
2. Remove the two front rubber feet (1).
3. Remove the two rear rubber feet (2).
4. Remove the Phillips M2.5 × 6.0 screw (3) from under each foot.
5. Remove the three screw covers (4) and three Phillips M2.0 × 3.0 screws (5) from the bottom edge.
6. Place a suction cup on the bottom cover (1), and then rotate the handle (2) to lock the suction cup in
place.
7. Using the suction cup handle (3), pull the bottom cover free from the computer (4).
Component replacement procedures 23
