Display assembly
NOTE: The display assembly is spared at the subcomponent level. For display assembly spare part
information, see the individual removal subsections.
Before removing the display assembly, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 22).
2. Remove the bottom cover (see Bottom cover on page 23).
3. Disconnect the battery cable from the system board (see Battery on page 25).
Remove the display assembly:

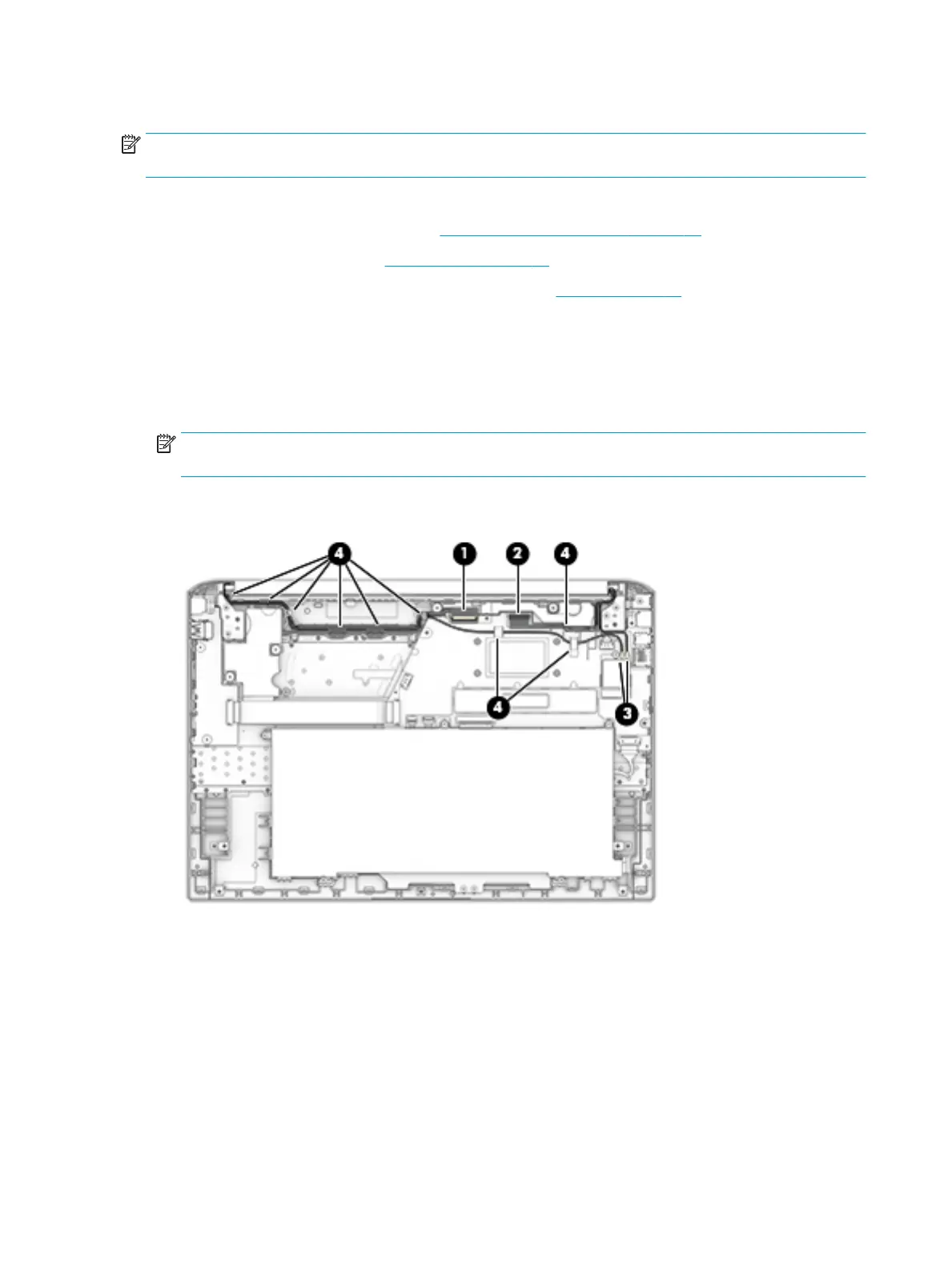

1. Disconnect the display cable (1) from the system board.
2. Disconnect the transfer board cable (2) from the system board.
3. Disconnect the WLAN antenna cables (3) from the terminals on the WLAN module.
NOTE: The WLAN antenna cable labeled "1/MAIN" connects to the WLAN module "Main" terminal. The
WLAN antenna cable labeled "2/AUX" connects to the WLAN module "Aux" terminal.
4. Release the cables from the retention clips and routing channels (4) built into the computer.
5. Remove the ve Phillips M2.5 × 5.0 screws (1) from the hinges.
6. Open the computer as far as possible (2).
38 Chapter 5 Removal and replacement procedures for authorized service provider parts
