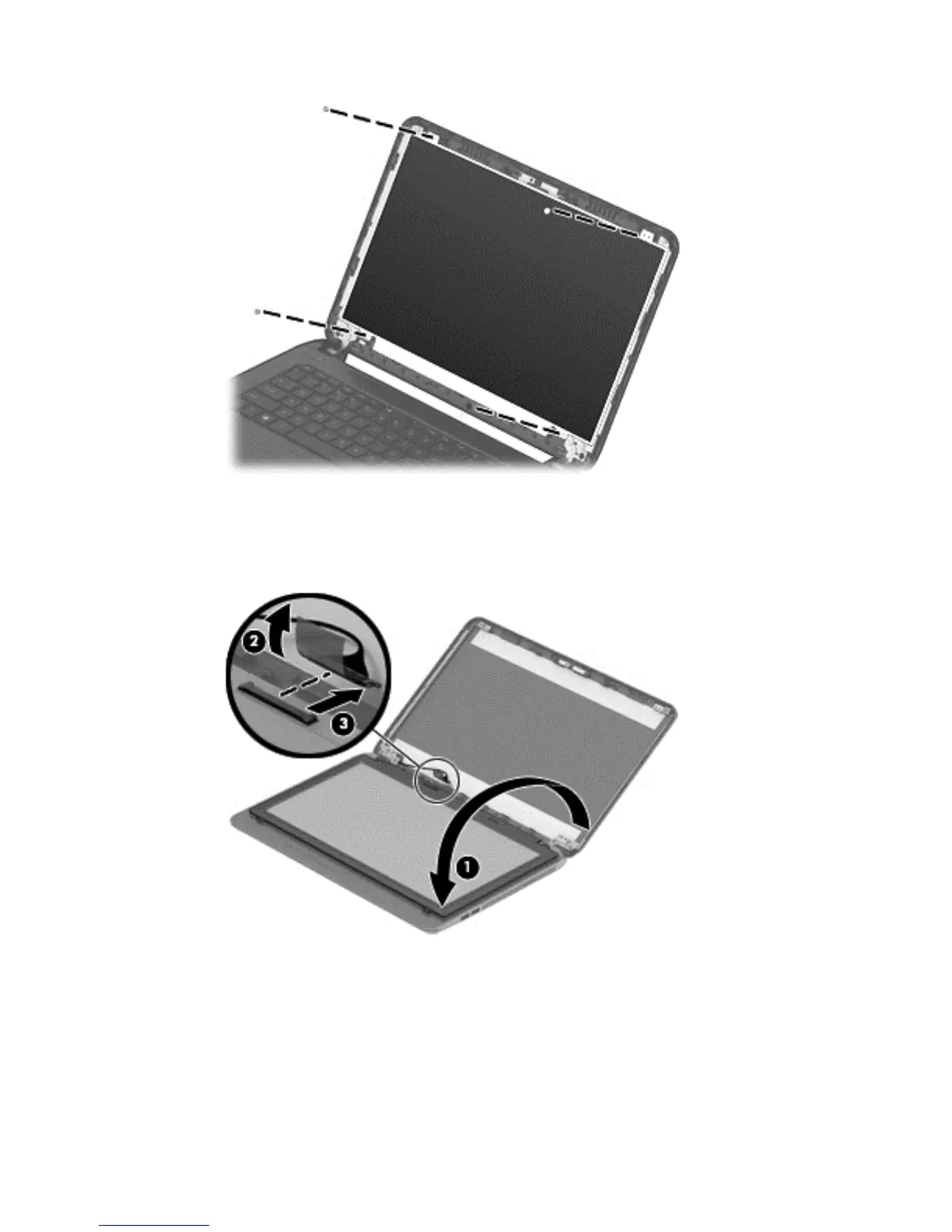

b. Rotate the display panel onto the keyboard to gain access to the display cable connection on the
back of the panel (1).
c. On the back of the display panel, release the adhesive strip (2) that secures the display panel cable
to the display panel, and then disconnect the cable (3).
Reverse this procedure to reassemble and install the display bezel, webcam/microphone module, and display
panel.
52 Chapter 4 Removal and replacement procedures
