Power connector cable
Description Spare part number
Power connector cable 760104-001
Before removing the power connector cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 49), and then remove the following components:
●
Service cover (see
Service cover on page 55)
●
Keyboard (see
Keyboard on page 57)
●
Top cover (see
Top cover on page 60)

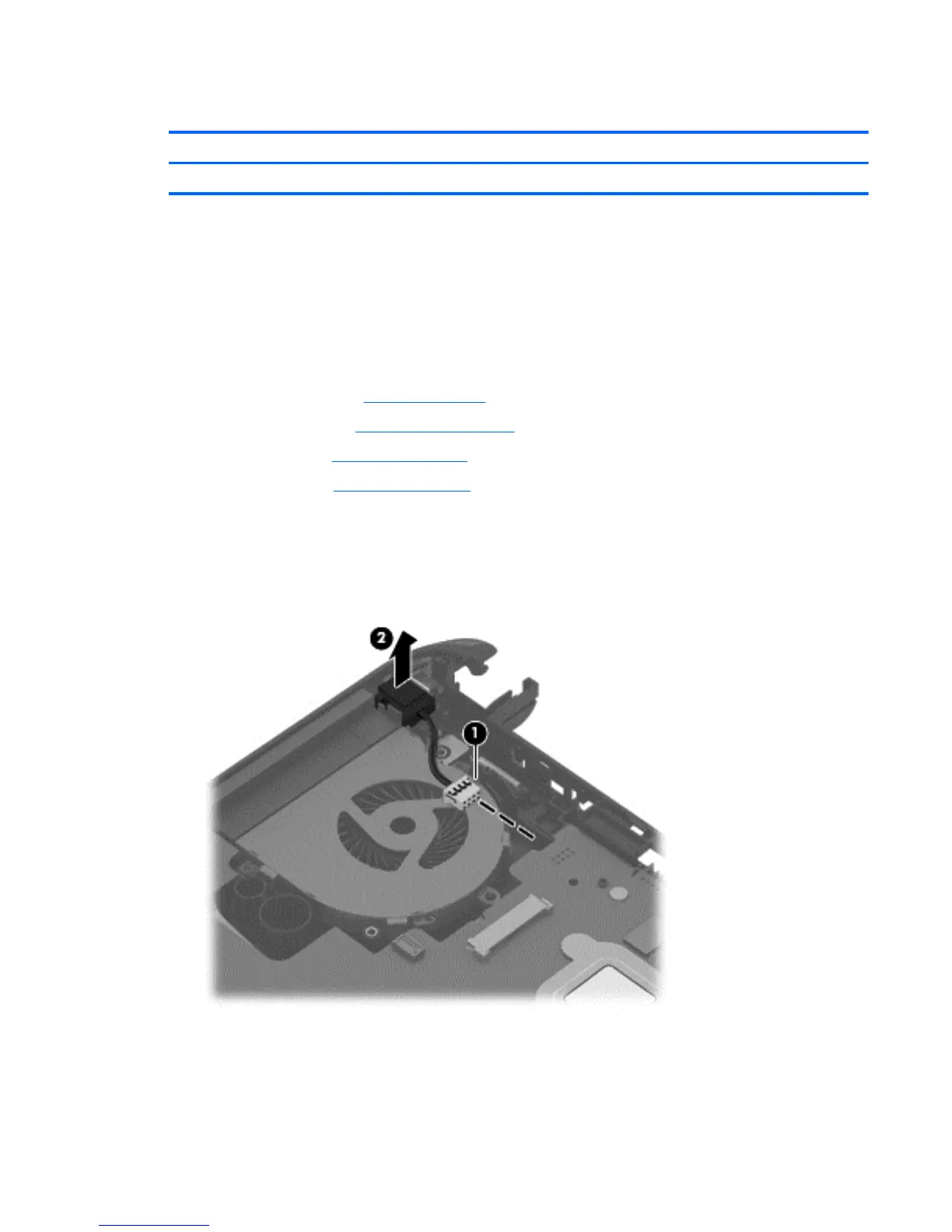

To remove the power connector cable:
1. Position the computer upright.
2. Disconnect the power connector cable (1) from the system board.
3. Remove the power connector cable (2).
Reverse this procedure to install the power connector cable.
Component replacement procedures 73
