Service Reference Guide, d200 336493-004 6–11
Removal and Replacement Procedures— Microtower Type 2 Chassis
6.7.3 Removing a Diskette Drive
1. Prepare the computer for disassembly (Section 6.1, “Preparation for Disassembly”).
2. Remove both the right and left access panels (Section 6.2, “Access Panel”).
3. Remove the front bezel (Section 6.3, “Front Bezel”).
4. Disconnect the power, and data cables from the back of the drive.

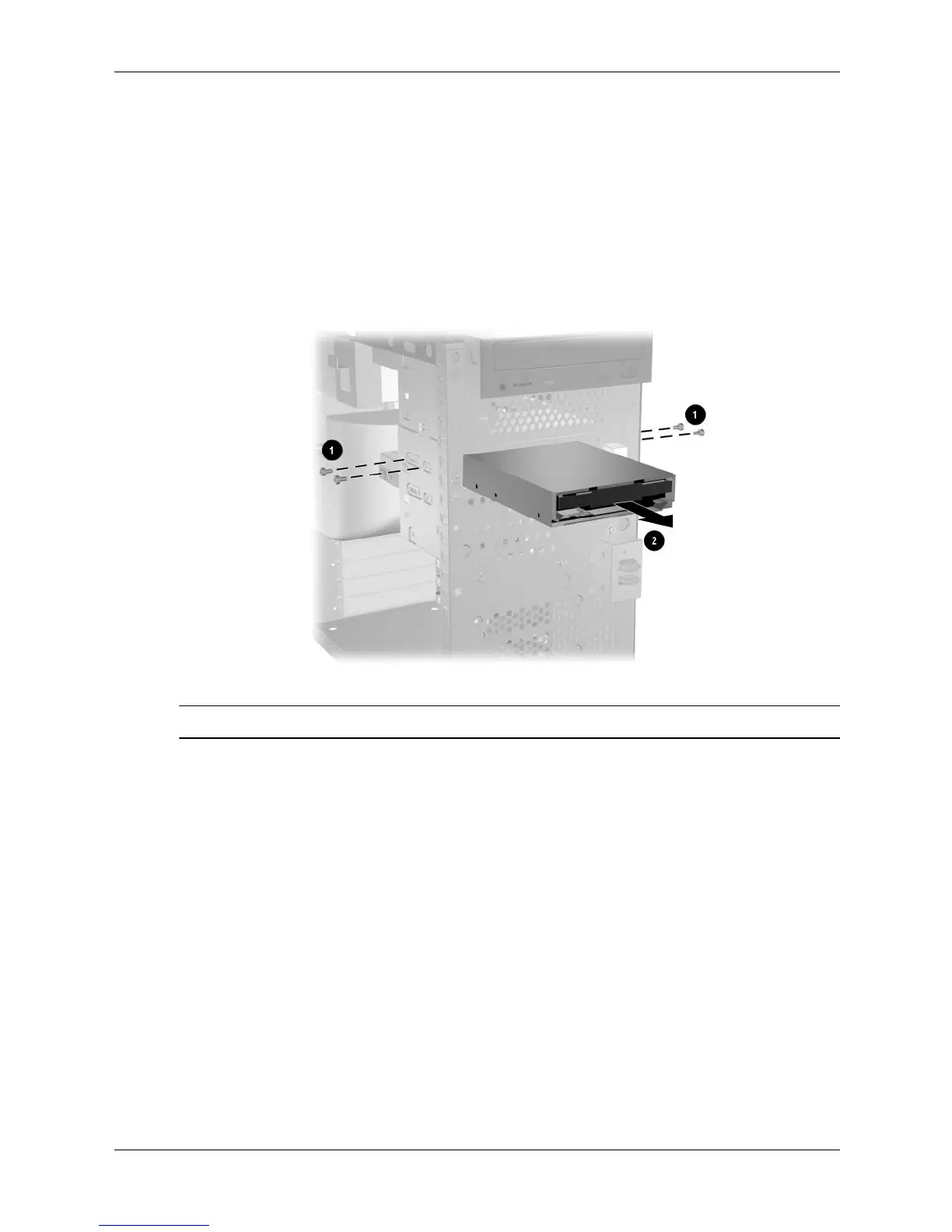

5. Remove the four screws, two from each side, that secure the drive in the drive cage 1.
6. Slide the drive out of the front of the chassis 2.
✎
Some models may not have an air shroud surrounding the processor.
To replace the diskette drive, reverse removal procedure.
