Service Reference Guide, d200 336493-004 6–13
Removal and Replacement Procedures— Microtower Type 2 Chassis

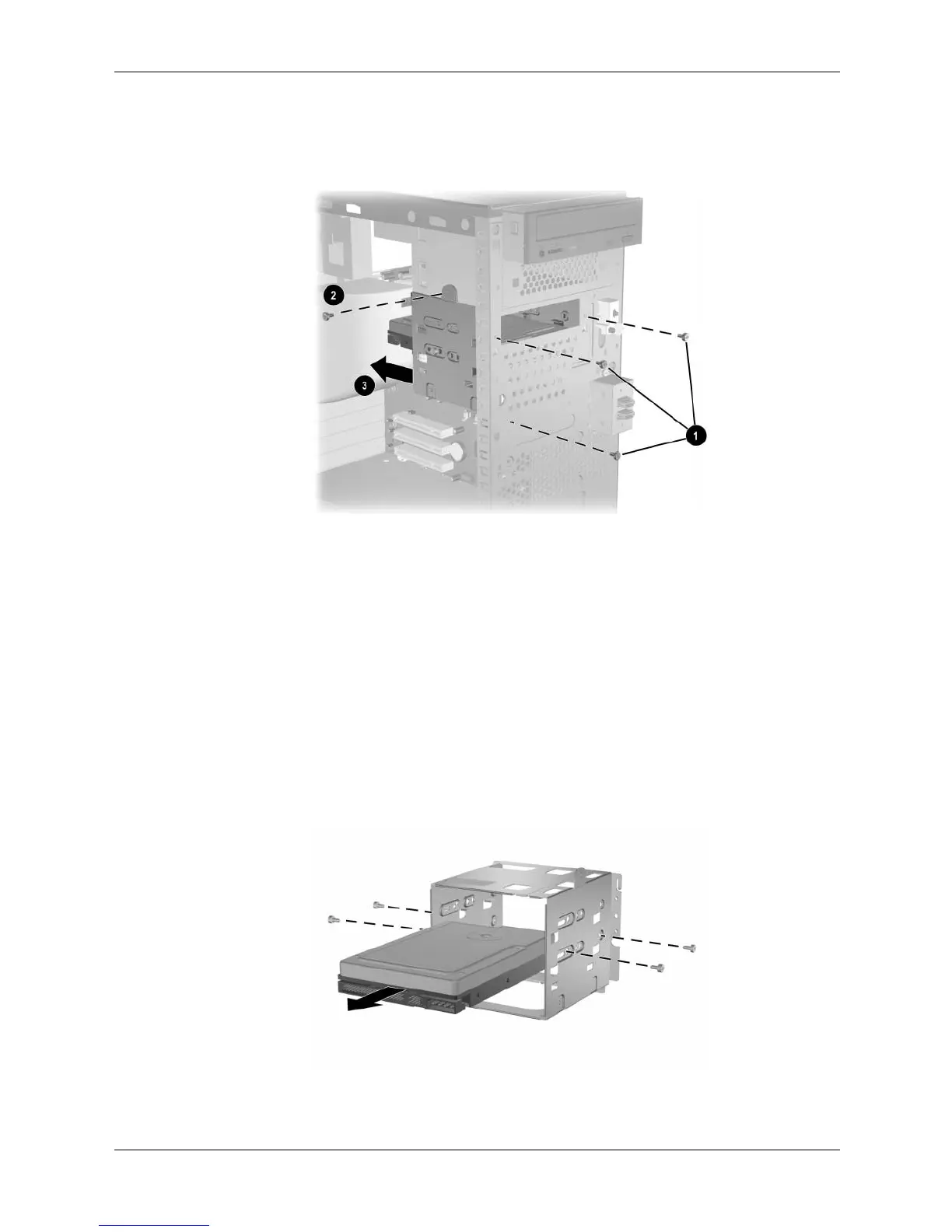

The d240 and d248 chassis shown below has only three mounting screws on its front for securing
the lower drive cage.
6.7.5 Removing a 3.5" Hard Drive
1. Prepare the computer for disassembly (Section 6.1, “Preparation for Disassembly”).
2. Remove both the right and left access panels (Section 6.2, “Access Panel”).
3. Remove the front bezel (Section 6.3, “Front Bezel”).
4. Remove the diskette drive (Section 6.7.3, “Removing a Diskette Drive”).
5. Disconnect the power, and data cables from the back of all installed 3.5" drives.
6. Remove the lower drive cage (Section 6.7.4, “Removing the Lower Drive Cage”).
7. Remove the four screws, two from each side, that secure the drive in the drive cage 1.
8. Slide the drive out of the drive cage 2.
To replace the drive cage, reverse the removal procedure.
