6–28 483941-001 Service Reference Guide
Removal and Replacement Procedures— Microtower (MT)/Small Form Factor (SFF) Chassis
6.9 Front I/O Panel Housing Assembly - MT chassis
1. Prepare the computer for disassembly (Section 6.1, “Preparation for Disassembly”).
2. Remove the access panel and rotate the computer so the system board is parallel to the table
to make it easier to work on (
Section 6.1, “Preparation for Disassembly”).
3. Disconnect two attaching cables from the system board: the power switch/LED cable, and
the front USB cable.

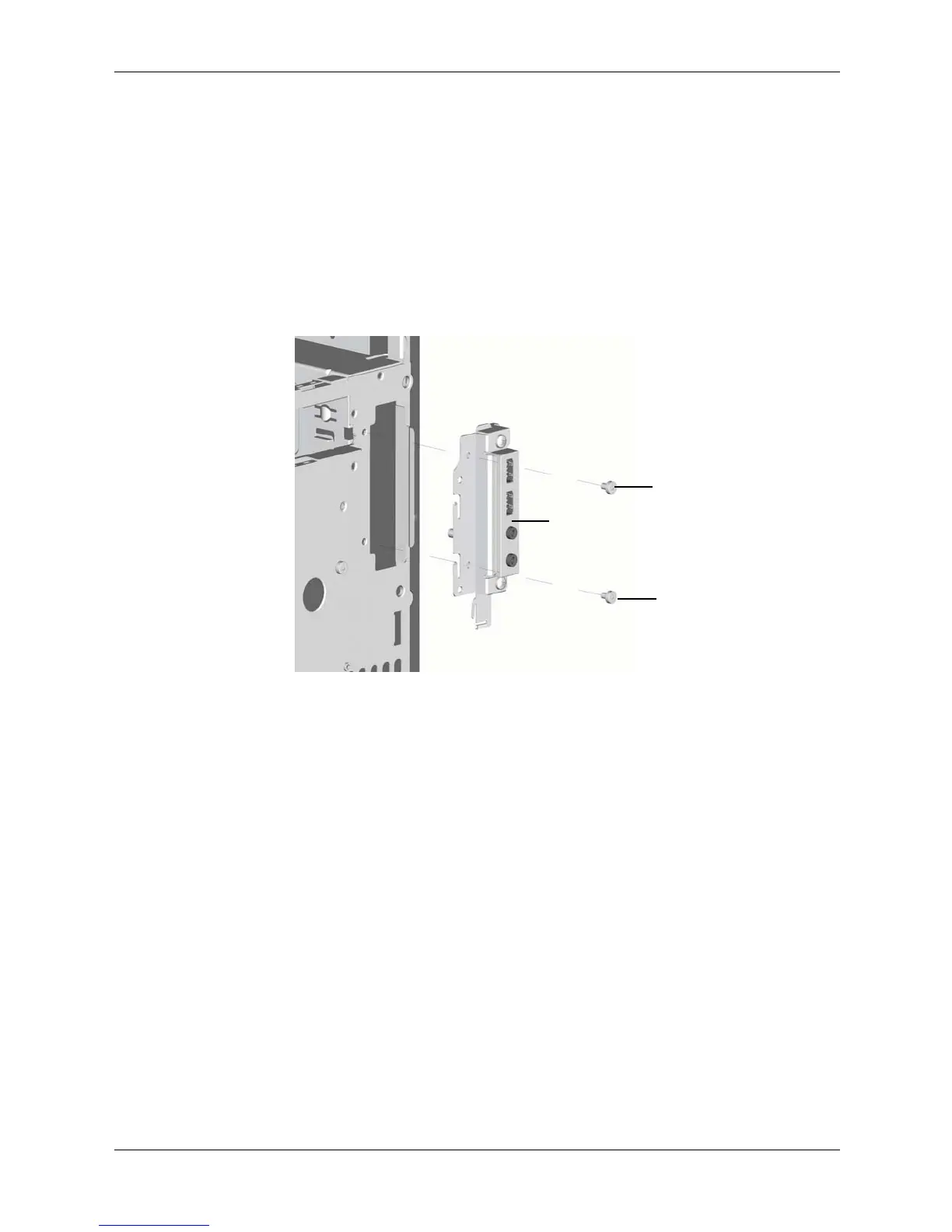

4. Remove the two screws 1 that secure the housing to the chassis and then pull the housing 2
away from the chassis.
To install the housing assembly, reverse the removal procedures.
The installtion method for SFF is similar to MT.
1
1
2
To Next Page
