Service Reference Guide 483941-001 6–29
Removal and Replacement Procedures— Microtower (MT)/Small Form Factor (SFF) Chassis
6.10 System Fan
1. Prepare the computer for disassembly (Section 6.1, “Preparation for Disassembly”).
2. Remove the access panel (Section 6.2, “Remove the computer access panel and front bezel
(MT chassis and SFF chassis)”).
3. Disconnect the cable that connects the system fan to the system board.

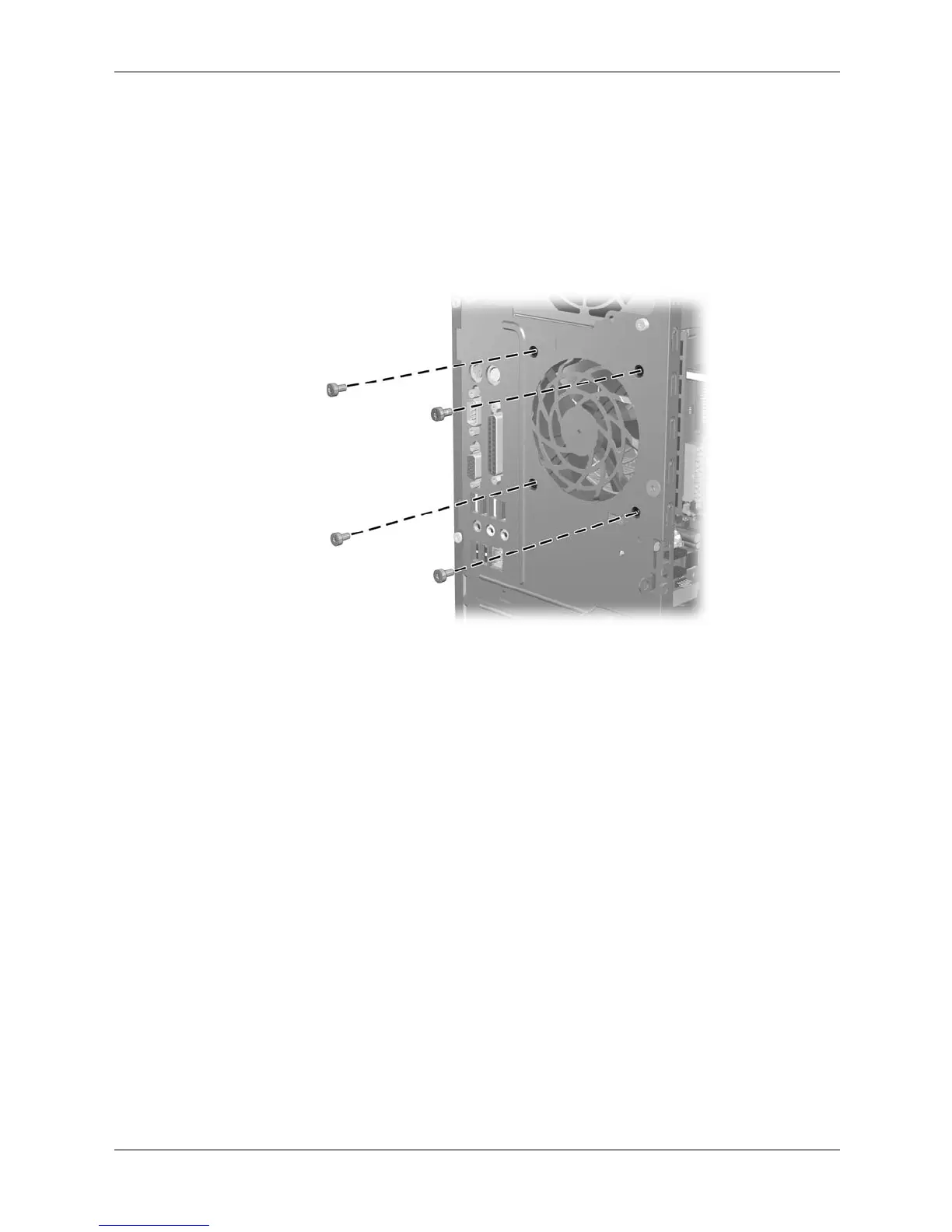

4. Remove the four screws that secure the fan to the chassis and remove the fan.
To install the fan, reverse the removal procedures.
Note: Similar installtion procedure is lying on SFF for System Fan.
