Front bezel
The front bezel is located on the front of the computer and is secured to the main system bracket with
eight Torx screws.
Replacement bezels include the webcam shutter and capacitive sensor board. On models that do not
include a webcam, you must remove the shutter and install the webcam insert (Webcam assembly
kit) into the slot in which the webcam would otherwise be installed.
To remove the front bezel:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 32).
2. Remove the access panel (see
Access panel on page 36).
3. Remove the stand (see
Stand on page 38).
4. Remove the lower panel (see
Lower panel on page 40).
5. Remove the optical drive (see
Replacing the optical disc drive on page 47).
6. Remove the metal plate (see
Metal plate on page 41).
7. Remove the power supply (see
Power supply on page 80).
8. Remove the side panels (see
Side panels on page 78).
9. Remove the speakers (see
Speakers on page 76).
10. Remove the power button board (see
Power button board on page 91).
11. Lift the bracket from the bottom-left side of the computer.

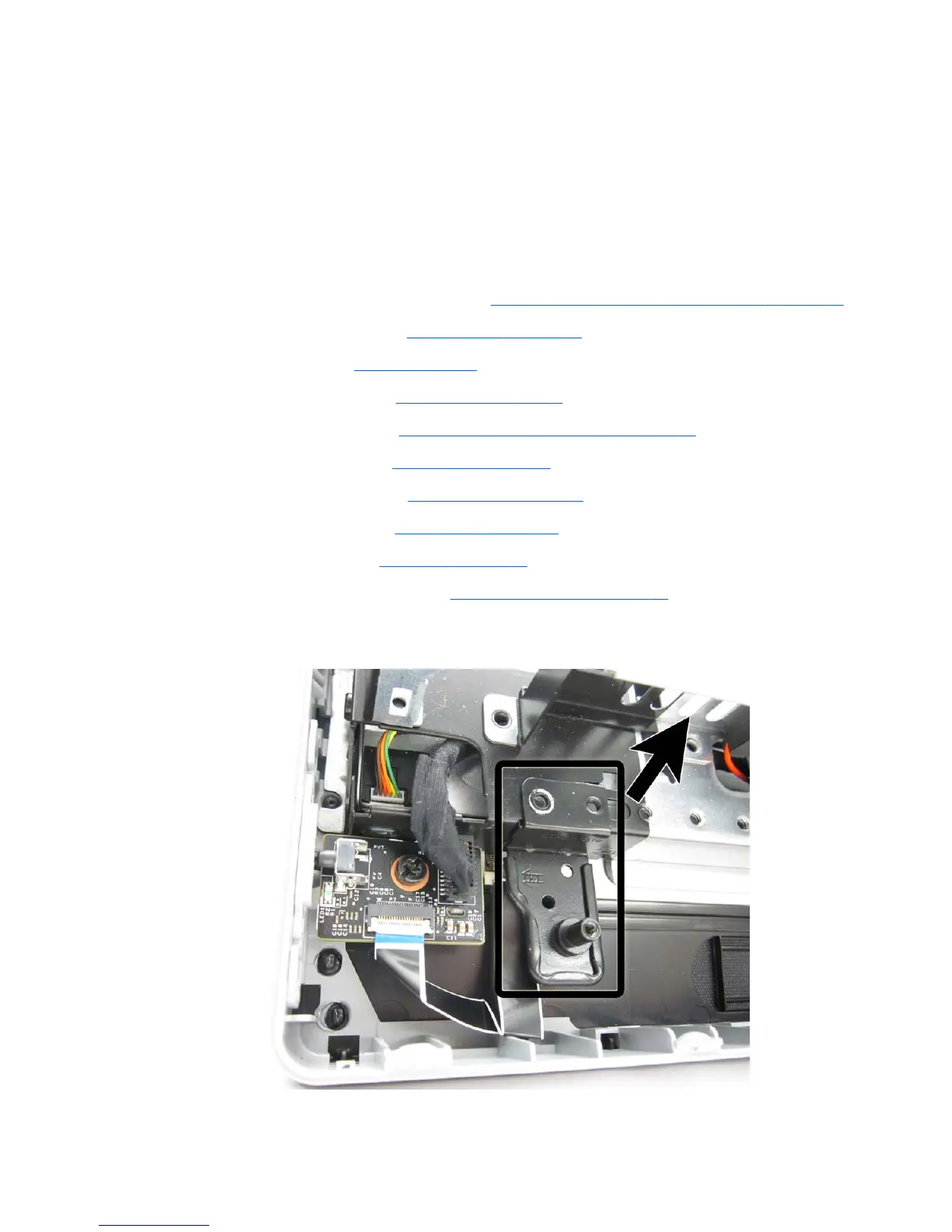

Figure 7-73 Removing the bracket
94 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis
