13. Note the routing path for each antenna for replacement.

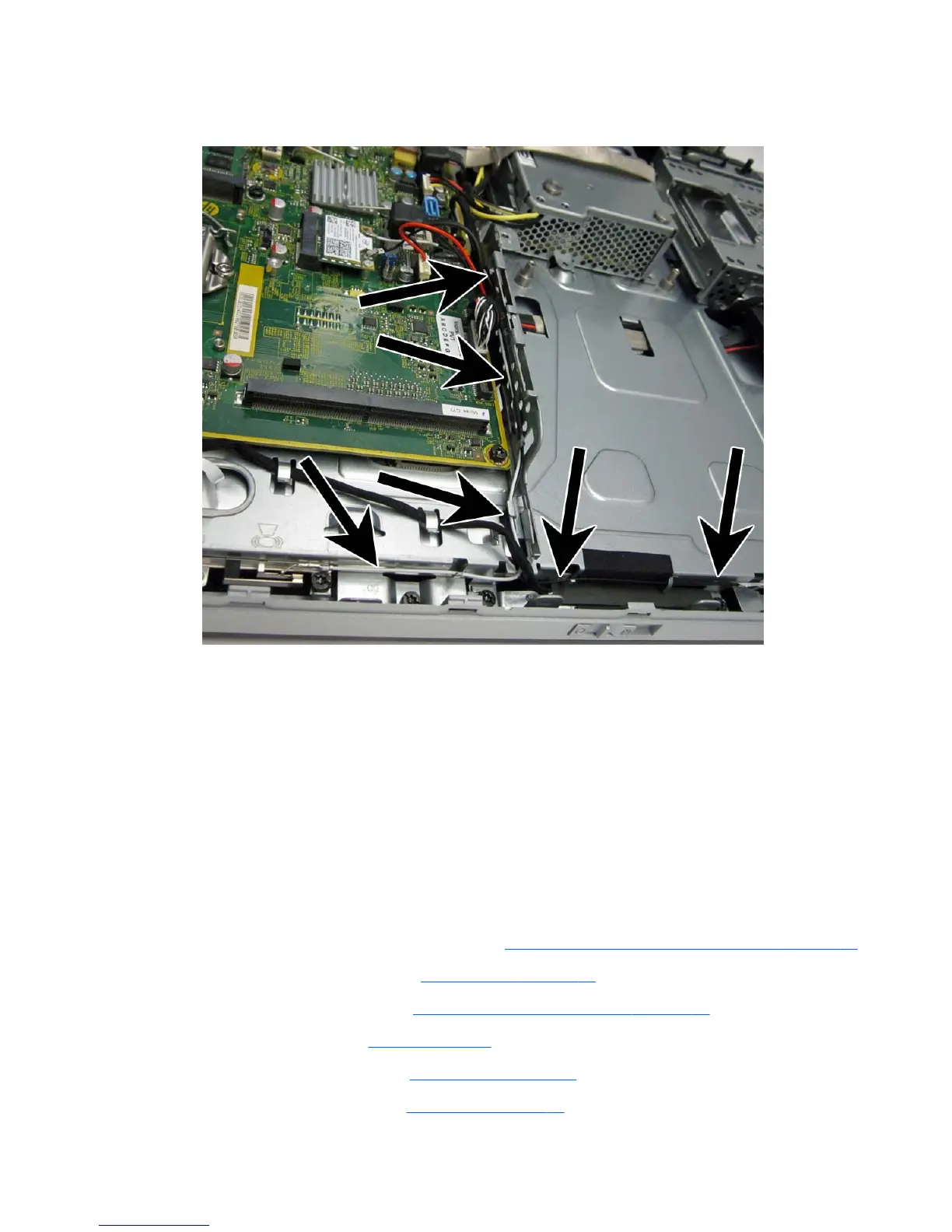

Figure 7-78 Antenna routing paths
To install the antenna, reverse the removal procedures.
Display panel
Model 6300 offers three different display panels – LG, AUO, and CMI.
Model 8300 offers three different display panels – LG, Samsung, and CMI.
Display panels require a backlight cable specific to the manufacturer. Make sure you use the
backlight cable packaged with the display panel.
The display panel is secured to the base pan with four Torx screws.
To remove the display panel:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 32).
2. Remove the access panel (see
Access panel on page 36).
3. Remove the optical drive (see
Replacing the optical disc drive on page 47).
4. Remove the stand (see
Stand on page 38).
5. Remove the lower panel (see
Lower panel on page 40).
6. Remove the metal plate (see
Metal plate on page 41).
Display panel 99
