5.8 Bluetooth Board
1. Prepare the notebook for disassembly (refer to Section 5.3).
2. Position the notebook with the right side toward you.
3. Loosen the PM1.5×3.0 screw 1 that secures the Bluetooth
cover to the notebook.
4. Remove the Bluetooth cover 2 from the notebook.
✎
The Bluetooth cover is included in the Miscellaneous Plastics
Kit, spare part number 382691-001.
5. Disconnect the Bluetooth cable 3 from the system board.

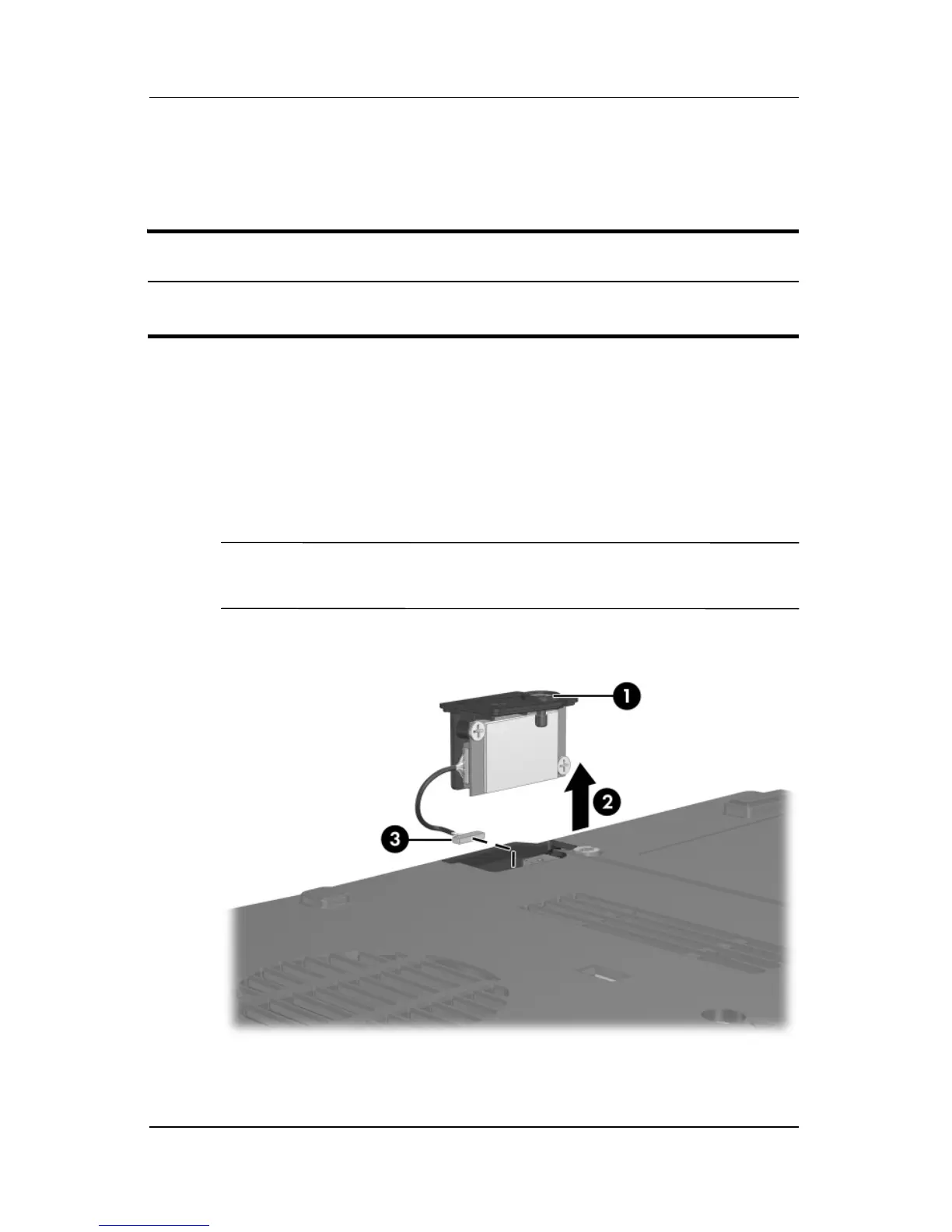

Removing the Bluetooth Board
Bluetooth Board Spare Part Number Information
Broadcomm Bluetooth wireless board (includes
Bluetooth board cable)
367871-001
