5–34 Maintenance and Service Guide
Removal and Replacement Procedures
5.15 TPM Security Card
1. Prepare the notebook for disassembly (Section 5.3).
2. Release the keyboard (Section 5.9).
3. Remove the PM1.5×3.0 screw 1 that secures the TPM
security card to the notebook.
4. Lift up on the right side of the card to disconnect it from the
system board and remove the card 2.

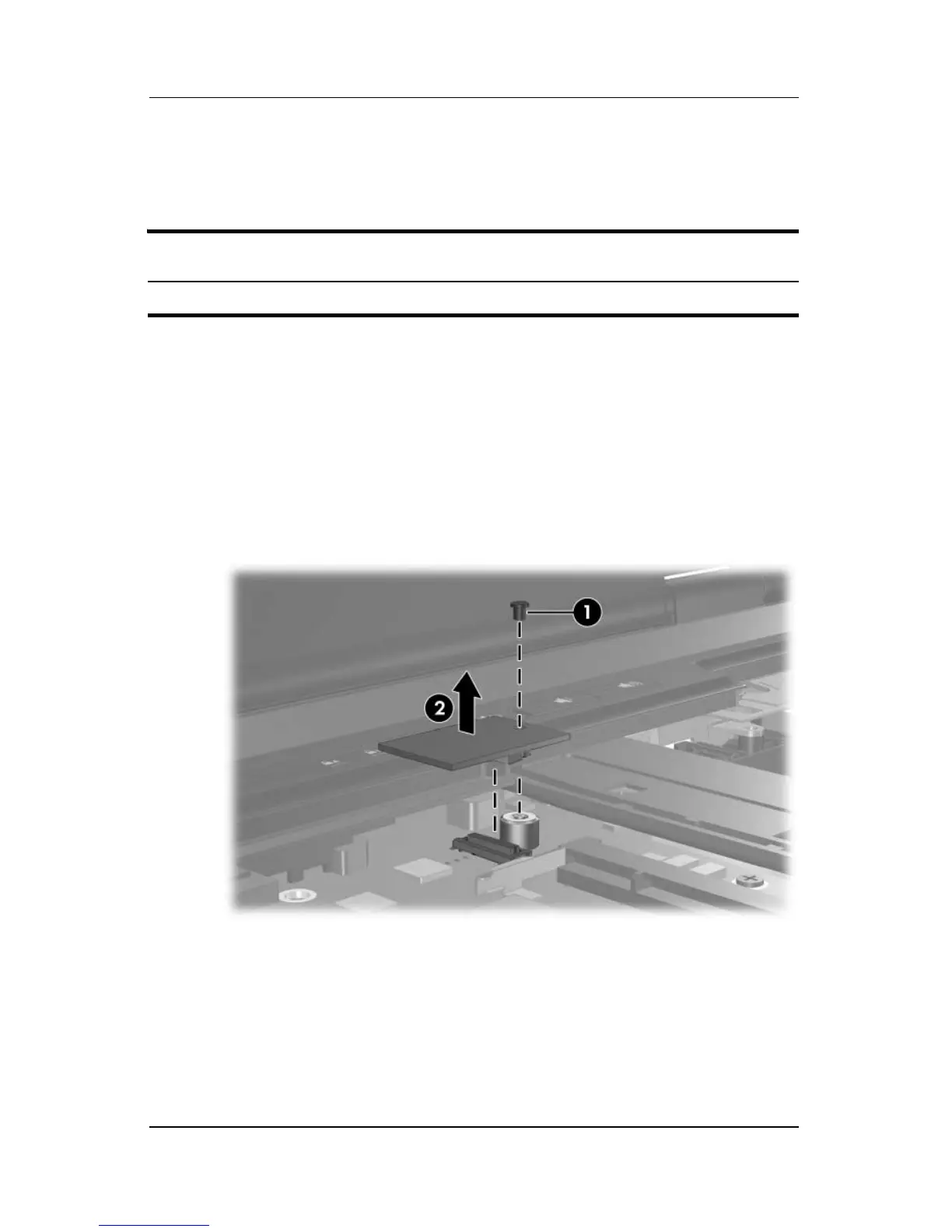

Removing the TPM Security Card
Reverse the above procedure to install the TPM security card.
TPM Security Card Spare Part Number Information
TPM security card 379807-001
