HP Compaq Pro 4300 User Manual

Drive Positions

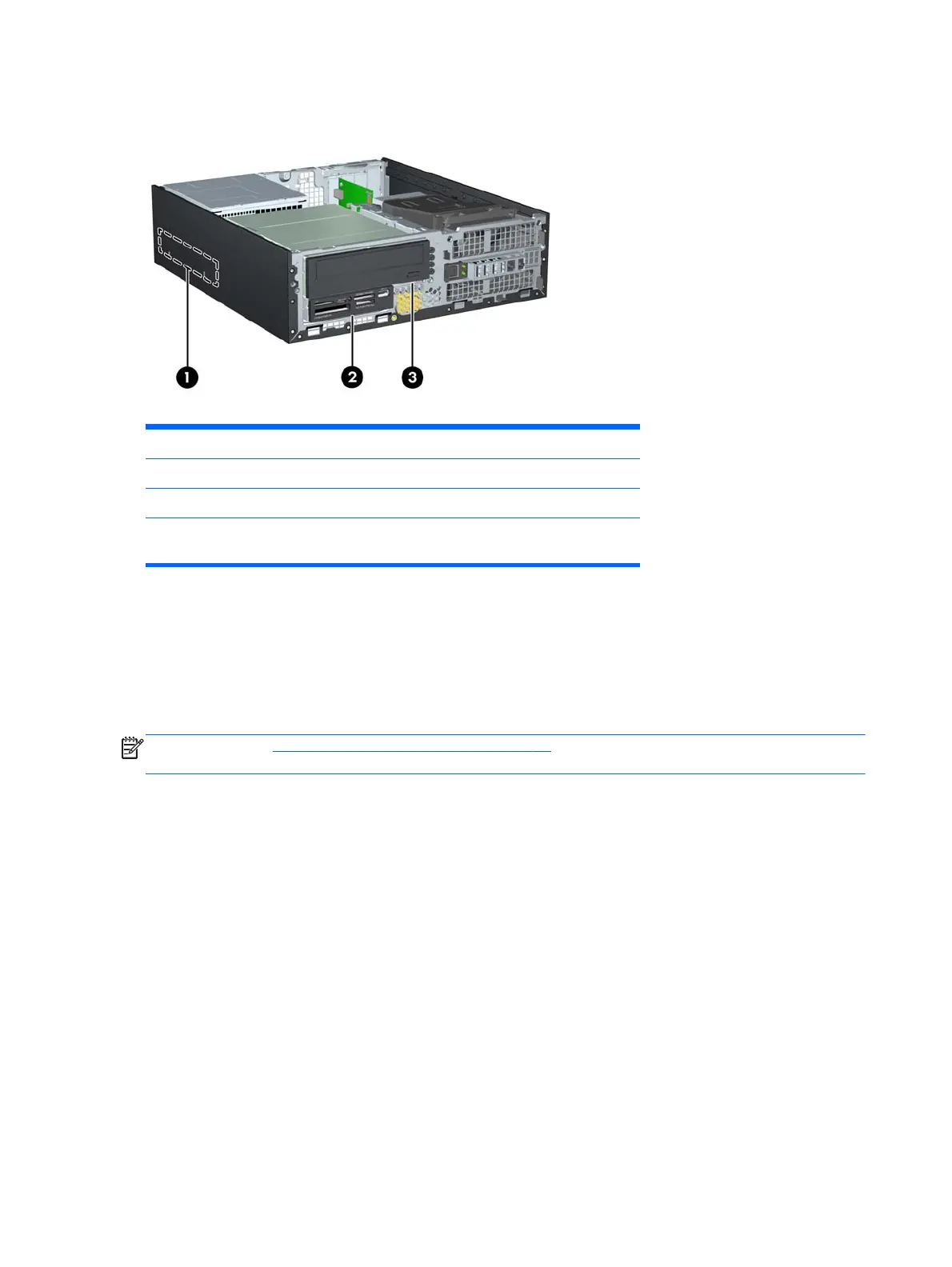

Figure 7-15 Drive Positions
Table 7-2 Drive Positions
1 3.5-inch internal hard drive bay
2 3.5-inch internal drive bay for optional drives (media card reader shown)
3 5.25-inch internal drive bay for optional drives (optical drive shown)
NOTE: The drive configuration on your computer may be different than the drive
configuration shown above.
To verify the type, size, and capacity of the storage devices installed in the computer, run Computer
Setup.
Installing and Removing Drives
When installing additional drives, follow these guidelines:
NOTE: Refer to System Board Connections on page 53 for an illustration of the system board drive
connectors.
●
The primary Serial ATA (SATA) hard drive must be connected to the dark blue primary SATA
connector on the system board labeled SATA0.
●
Connect a SATA optical drive to the white SATA connector on the system board labeled SATA1.
●
Connect a media card reader USB cable to the USB connector on the system board labeled
MEDIA1.
●
The power cable for the SATA drives is a three-headed cable that is plugged into the system
board with the first connector routed to the rear of the hard drive, the second connector routed to
the rear of the 3.5” drive, and the third connector routed to the rear of the 5.25” optical drive.
●
The system does not support Parallel ATA (PATA) optical drives or PATA hard drives.
●
You must install mounting screws to ensure the drive will line up correctly in the drive cage and
lock in place. HP has provided extra mounting screws for the internal drive bays (five 6-32
standard screws and four M3 metric screws), installed in the front of the chassis, under the front
bezel. The 6-32 standard screws are required for a secondary hard drive (not supported). All
other drives (except the primary hard drive) use M3 metric screws. The HP-supplied metric
screws are black and the HP-supplied standard screws are silver.
66 Chapter 7 Removal and Replacement Procedures Small Form Factor (SFF) Chassis

HP Compaq Pro 4300 Specifications

General

Full HD	No
Panel type	TN
LED backlight	Yes
Display diagonal	20 \
Display resolution	1600 x 900 pixels
Native aspect ratio	16:9
Tcase	65.3 °C
Bus type	DMI
Processor cache	3 MB
Processor cores	2
Processor model	i3-3240
System bus rate	5 GT/s
Processor family	Intel® Core™ i3
Processor series	Intel Core i3-3200 Desktop Series
Processor socket	LGA 1155 (Socket H2)
Processor threads	4
Processor codename	Ivy Bridge
Processor frequency	3.4 GHz
Processor cache type	Smart Cache
Processor lithography	22 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	2.0
Processor operating modes	64-bit
PCI Express configurations	1x16, 2x8
Thermal Design Power (TDP)	55 W
CPU multiplier (bus/core ratio)	34
Memory types supported by processor	DDR3-SDRAM
Memory channels supported by processor	Dual
Memory clock speeds supported by processor	1333, 1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Maximum internal memory supported by processor	32 GB
Product type	All-in-One PC
Motherboard chipset	Intel® H61
Internal memory	4 GB
Memory slots type	SO-DIMM
Memory clock speed	1600 MHz
Maximum internal memory	16 GB
Memory layout (slots x size)	1 x 4 GB
HDD speed	7200 RPM
HDD interface	SATA
Storage media	HDD
Optical drive type	DVD Super Multi
Total storage capacity	500 GB
Compatible memory cards	SD
Autonomy mode	-
Storage drive interface	Serial ATA
On-board graphics card ID	0x152
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 2500
On-board graphics card family	Intel® HD Graphics
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1050 MHz
Number of displays supported (on-board graphics)	3
RMS rated power	4 W
Wi-Fi standards	Not supported
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Headphone outputs	1
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Bundled software	Adobe Flash Player\\r HP Marketplace\\r Bing\\r Microsoft Internet Explorer\\r PDF Complete Corporate Edition\\r WinZip Basic\\r Yahoo\\r Compre Office
Recovery operating system	Windows 8 Pro
Operating system installed	Windows 7 Professional
Processor ARK ID	65690
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX, SSE4.1, SSE4.2
Thermal solution specification	PCG 2011C
Intel Secure Key Technology version	0.00
Intel Identity Protection Technology version	1.00
Product color	Black
Country of origin	China
Total megapixels	1.3 MP
AC adapter power	150 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	15 - 80 %
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	220 mm
Width (with stand)	507 mm
Height (with stand)	406 mm
Weight (with stand)	5730 g
