5–12 Maintenance and Service Guide
Removal and Replacement Procedures
5.4 Real Time Clock Battery
Perform the following steps to remove the RTC battery:
1. Prepare the tablet PC for disassembly (refer to Section 5.3,
“Preparing the Tablet PC for Disassembly”).
2. Turn the tablet PC upside down, with the power switch and
jog dial toward you.
3. Disconnect the RTC battery cable from the system board
1.
4. Remove the RTC battery
2 from the tablet PC.

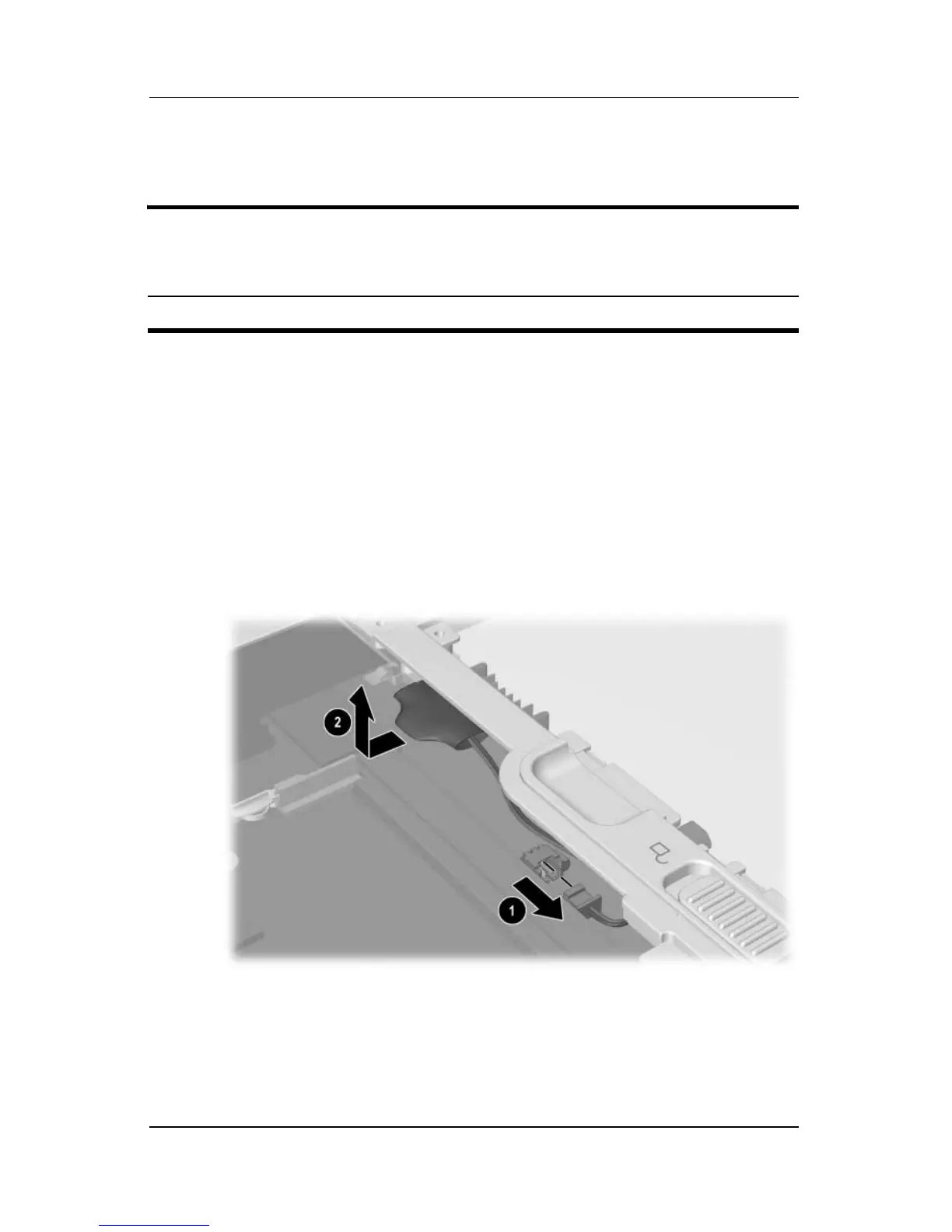

Removing the RTC Battery
Reverse the preceding procedures to install the RTC battery.
Real Time Clock (RTC)Battery
Spare Part Number Information
RTC battery 348329-001
