1–60 Maintenance and Service Guide
Product Description

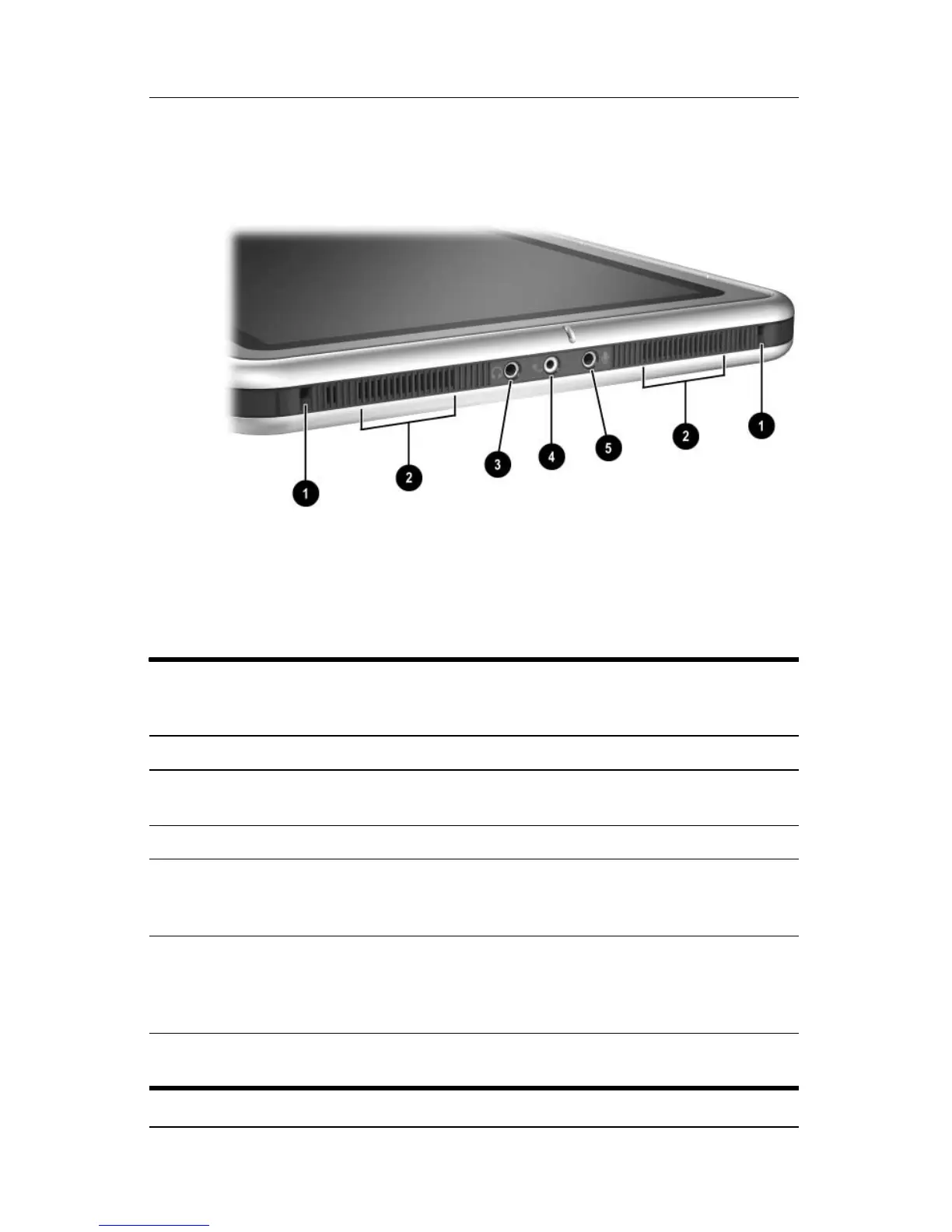

The external components on the bottom side of the tablet PC are
shown in the following illustration and described in Table 1-51.
Bottom-side Components
Table 1-51
Rear Components
Item Component Function
1 Docking alignment slots (2) Secure the tablet PC to an optional
Tablet PC Docking Station.
2 Speakers (2) Produce stereo sound.
3 Audio-out (headphone) Connects optional stereo
headphones or powered stereo
speakers.
4 Headset jack Connects an optional headset, such
as a mobile telephone headset with
a microphone and a monaural ear
piece.
5 Audio-in (microphone) Connects an optional stereo
microphone.
