6–12 Maintenance and Service Guide
Removal and Replacement Procedures
6.6 Bluetooth Module
1. Prepare the tablet PC for disassembly (Section 6.3).
2. Remove the hard drive cover (Section 6.4).
3. Position the tablet PC with the front toward you.
4. Loosen the two PM2.0×5.0 screws 1 that secure the
Bluetooth cover to the tablet PC.
5. Remove the Bluetooth cover 2.
✎
The Bluetooth cover is included in the Miscellaneous
Plastics/Hardware Kit, spare part number 383549-001.

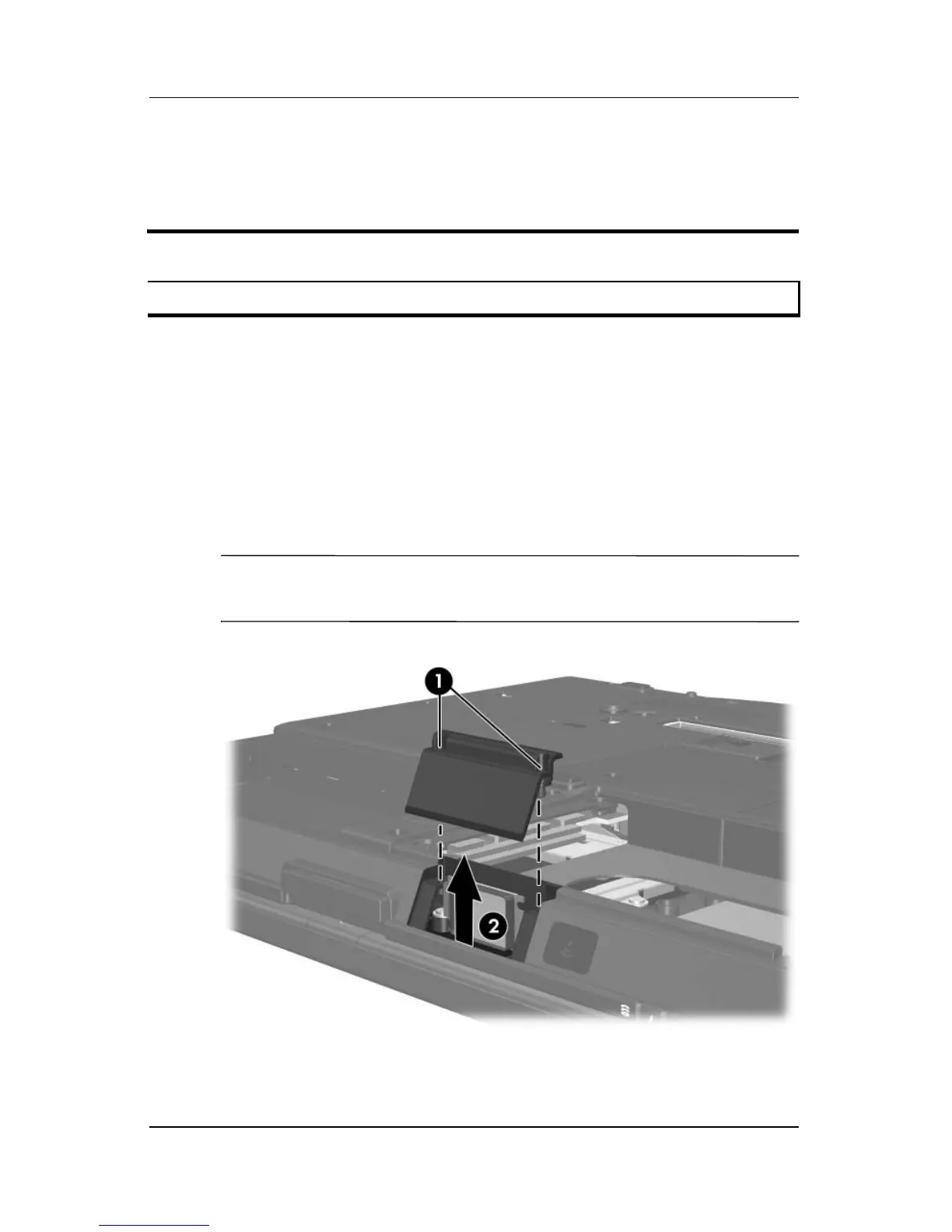

Removing the Bluetooth Cover
Bluetooth Module Spare Part Number Information
Bluetooth wireless module (includes Bluetooth module cable) 370429-001
