Removal and Replacement Procedures
Maintenance and Service Guide 6–25
6.11 Fan
1. Prepare the tablet PC for disassembly (Section 6.3).
2. Remove the keyboard cover (Section 6.9).
3. Release the keyboard (Section 6.10).
4. Disconnect the fan cable 1 from the system board.
5. Remove the three T8M2.0×7.5 screws 2 that secure the fan
to the tablet PC.
6. Remove the fan 3.

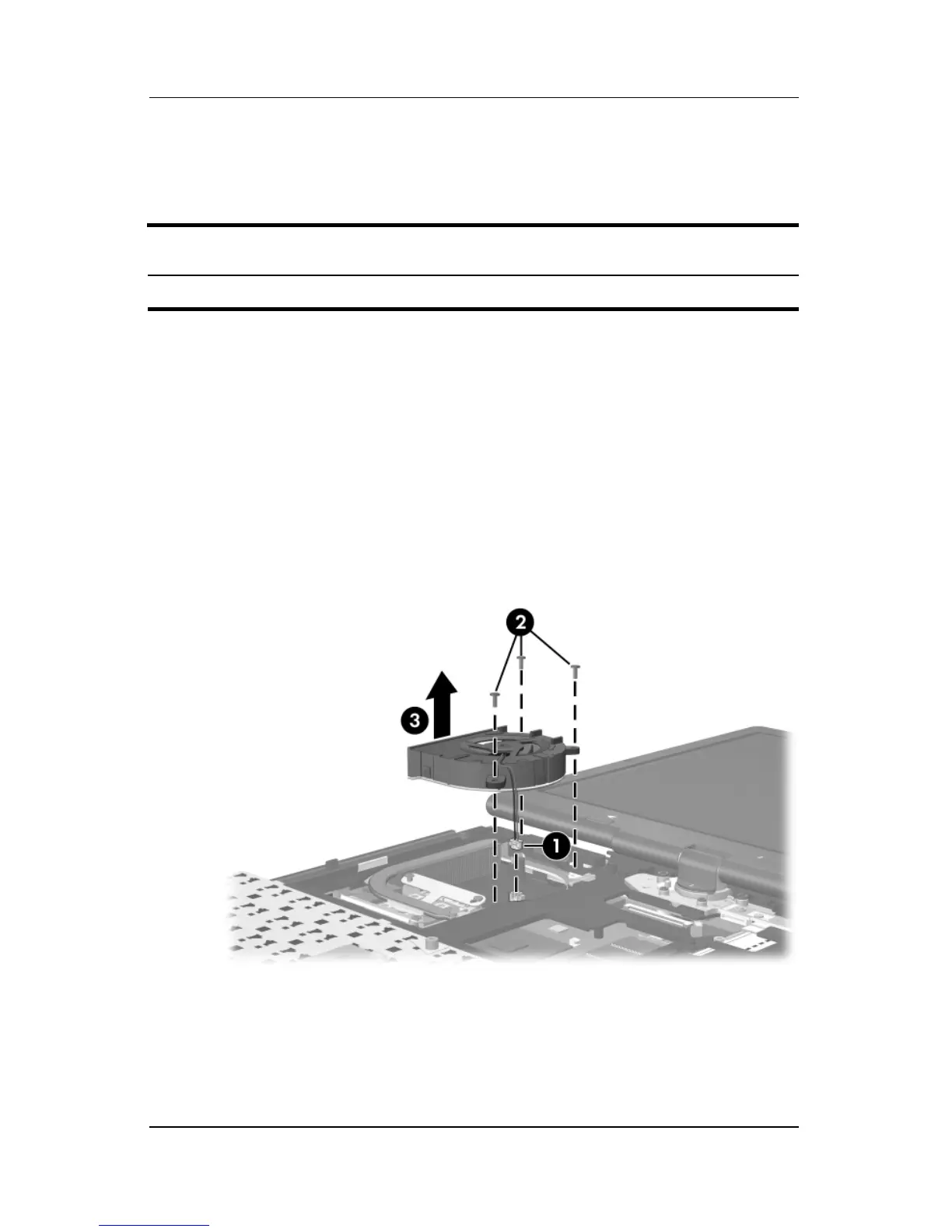

Removing the Fan
Reverse the above procedure to install the fan.
Fan Spare Part Number Information
Fan 383528-001
