HP EliteBook 850 G4 User Manual

●

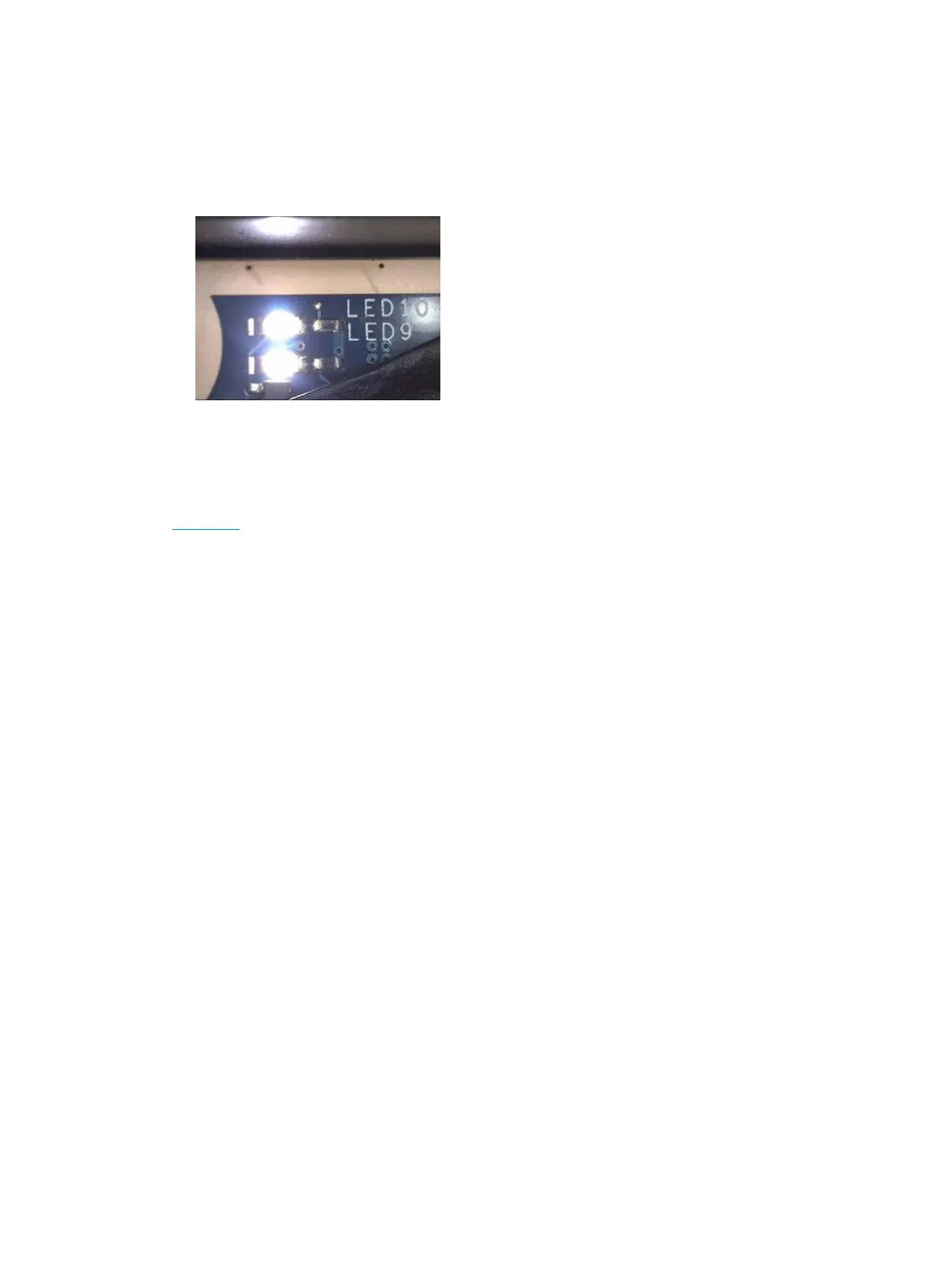

Example: System board needs replacement. When (1) system 3.3V exists, but one power rail is bad then
(2) power good is low (0V), and troubleshooting lights will turn on.
After you press the system power button, troubleshooting lights will turn on for 5 seconds and turn
o. The system external lights will not light up. Follow general troubleshooting steps (i.e., remove
recently added hardware, test with minimum conguration, etc.) prior to replacing the system board.
Resolve the issue
8. Hard reset
A hard reset (or forced reset) erases all information in the computer's memory and may restore functionality.
Resetting the computer forces the system to clear and reestablish the connections between the BIOS and the
hardware.
Performing a hard reset might x the following common conditions:
●
Windows stops responding.
●
Computer stops before Windows loads, indicated by incomplete boot-up, blinking cursor on a black
background, and errors relating to operating system not found or a missing drive.
●
Display suddenly goes blank and stays blank.
●
Software freezes.
●
Keyboard stops responding.
●
The computer does not exit Sleep or Suspend state.
●
An external device stops responding. Turn o the power to that device in addition to performing the
steps in this document.
Before performing a hard reset, you must disconnect or remove all peripheral devices. You should start and
test the computer by itself, and if the problem is not resolved, reconnect one peripheral device at a time. To
resolve the startup or operational problem, run HP Support Assistant, or manually install all updated drivers
from Microsoft and HP.
Before beginning, turn the computer over and look for a battery compartment door (service door). For 2015
platforms, the battery is considered removable but not accessible. See the battery section for how to remove/
unplug the battery.
To perform a hard reset on a computer with a sealed or non removable battery, use the following steps:
1. Turn o the computer.
2. Remove the computer from any port replicator or docking station.
3. Disconnect all external connected peripheral devices such as USB storage devices, external displays, and
printers.
General troubleshooting steps 95

HP EliteBook 850 G4 Specifications

General

Form factor	Clamshell
Product type	Laptop
Product color	Silver
Country of origin	China
Bus type	OPI
Stepping	H0
Tjunction	100 °C
Processor cache	3 MB
Processor cores	2
Processor model	i5-7200U
System bus rate	4 GT/s
Processor family	Intel® Core™ i5
Processor socket	BGA 1356
Processor threads	4
Processor codename	Kaby Lake
Configurable TDP-up	25 W
Processor frequency	2.5 GHz
Processor cache type	Smart Cache
Configurable TDP-down	7.5 W
Processor lithography	14 nm
Processor manufacturer	Intel
PCI Express slots version	3.0
Processor boost frequency	3.1 GHz
Processor operating modes	64-bit
ECC supported by processor	No
PCI Express configurations	1x2+2x1, 1x4, 2x2, 4x1
Thermal Design Power (TDP)	15 W
Configurable TDP-up frequency	2.7 GHz
Configurable TDP-down frequency	0.8 GHz
Maximum number of PCI Express lanes	12
Numeric keypad	Yes
Pointing device	Touchpad
Memory slots	2x SO-DIMM
Internal memory	8 GB
Memory clock speed	2133 MHz
Internal memory type	DDR4-SDRAM
Maximum internal memory	32 GB
Memory layout (slots x size)	1 x 8 GB
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
SSD interface	PCI Express
Storage media	SSD
Total storage capacity	256 GB
Compatible memory cards	SD, SDHC, SDXC
Number of SSDs installed	1
Display diagonal	15.6 \
Native aspect ratio	16:9
On-board graphics card ID	0x5916
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 620
On-board graphics card family	Intel® HD Graphics
On-board graphics card OpenGL version	4.4
On-board graphics card base frequency	300 MHz
On-board graphics card DirectX version	12.0
On-board graphics card dynamic frequency (max)	1000 MHz
Battery capacity	51 Wh
Battery life (max)	14.7 h
Number of battery cells	3
AC adapter power	45 W
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.2
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Charging port type	DC-in jack
USB 2.0 ports quantity	0
Sustainability certificates	ENERGY STAR
Processor code	SR2ZU
Processor ARK ID	95443
Processor package size	42 x 24 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Intel Identity Protection Technology version	1.00
Intel Stable Image Platform Program (SIPP) version	0.00
Intel segment tagging	Home Office, Small Business
HP segment	Business
HP Management tools	HP Driver Packs, HP SoftPaq Download Manager (SDM), HP System Software Manager (SSM), HP BIOS Config Utility (BCU), HP Client Catalog, HP Management Integration Kit, HP Device Access Manager, HP BIOSphere, HP Sure Start, HP Client Security
HP Software provided	HP ePrint Driver+JetAdvantage, HP Hotkey Support, HP Noise Cancellation, HP Workwise, HP Velocity
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	257.7 mm
Width	383.6 mm
Height	19.4 mm
Weight	1840 g
