Card reader board cable
NOTE: The card reader board cable is available using spare part number L53535-001.
Before removing the card reader board cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and then
unplugging the AC adapter from the computer.
4. Remove the bottom cover (see Bottom cover on page 28).
5. Remove the battery (see Battery on page 30).
Remove the card reader board cable:

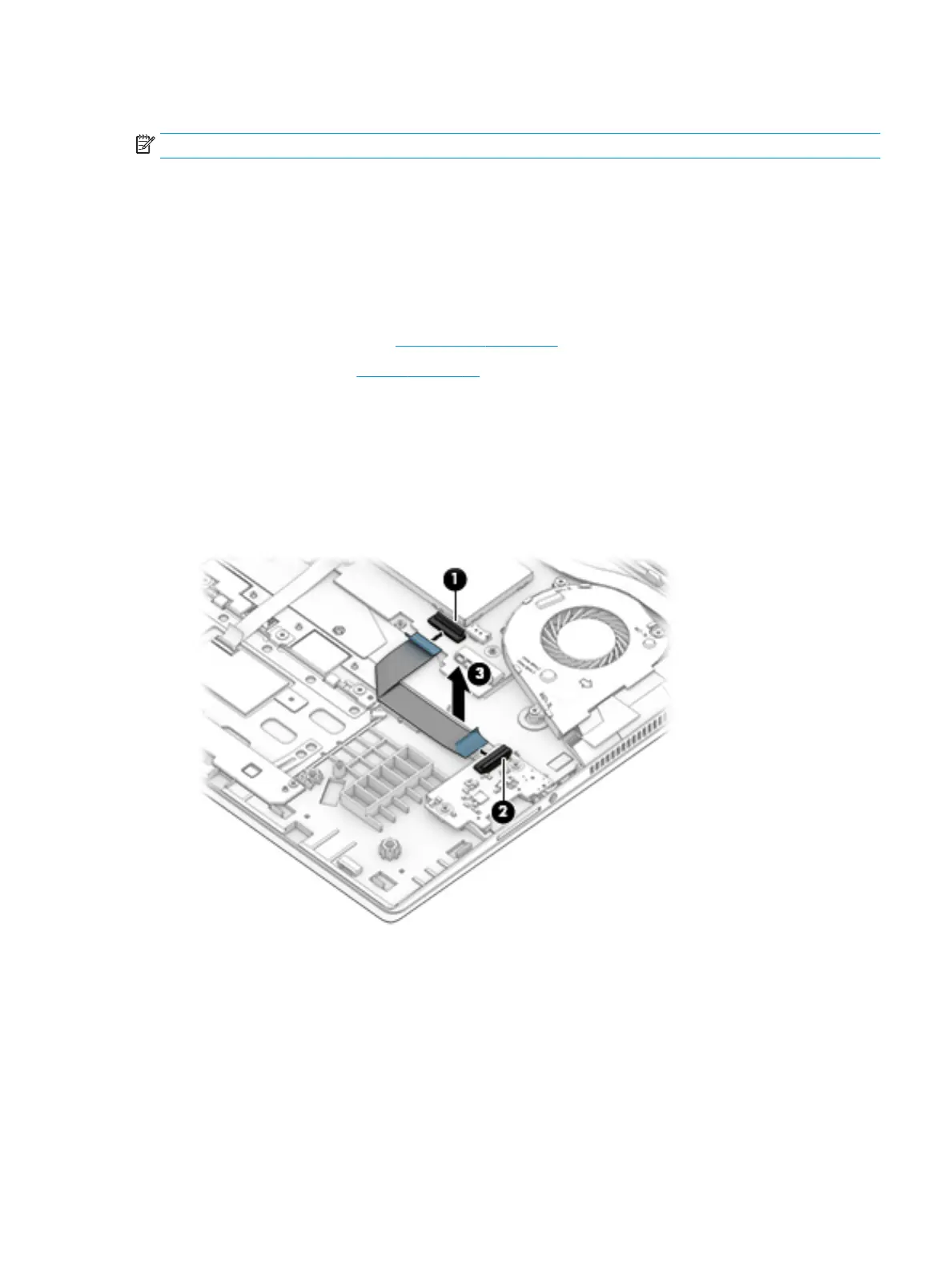

1. Release the ZIF connector (1) to which card reader board cable is connected, and then disconnect the card
reader board cable from the system board.
2. Release the ZIF connector (2) to which card reader board cable is connected, and then disconnect the card
reader board cable from the switch board.
3. Remove the card reader board cable (3).
Reverse this procedure to install the card reader board cable.
Component replacement procedures 43
