Fans
Table 5-9 Processor fan and video subsystem fan description and spare part number information
Description Spare part number
Fan, CPU/VGA (includes cables) L53541-001
Fan L53541-001
Before removing the fan, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the computer
on, and then shut it down through the operating system.
2. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and then
unplugging the AC adapter from the computer.
3. Disconnect all external devices from the computer.
4. Remove the bottom cover (see Bottom cover on page 28).
5. Remove the battery (see Battery on page 30).
6. Remove the system board (see System board on page 54).

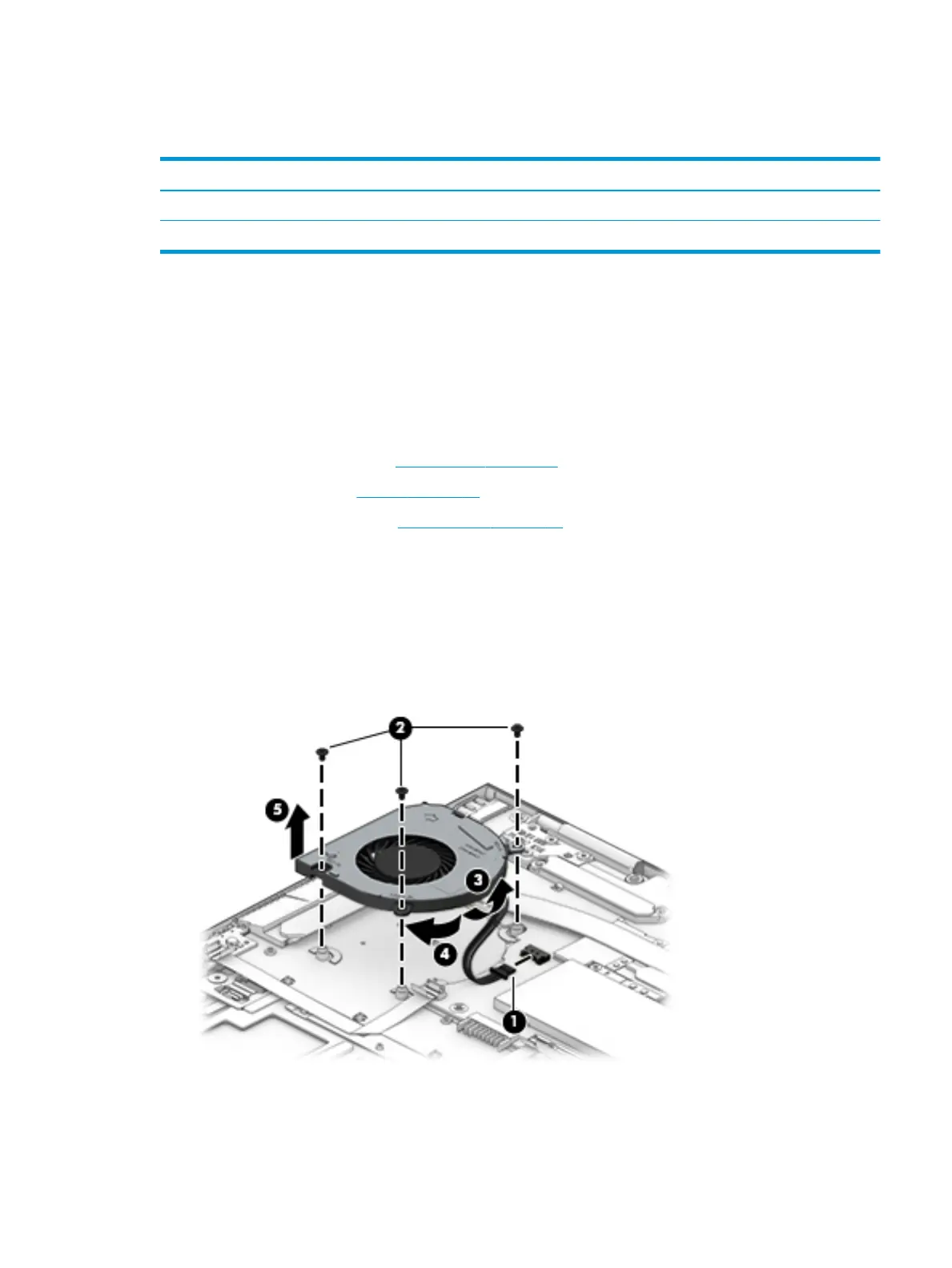

Remove the processor fan:
1. Disconnect the processor fan cable (1) from the system board.
2. Remove the three Phillips M2.0×3.2 screws (2) that secure the processor fan to the system board.
3. Release the processor fan (3) by lifting the right side until it clears the system board, and then rotating it (4)
clockwise until it clears the heat sink.
4. Remove the fan (5).
Remove the video subsystem fan:
Component replacement procedures 45
