HP LP2275w User Manual

HP LP2475w Model

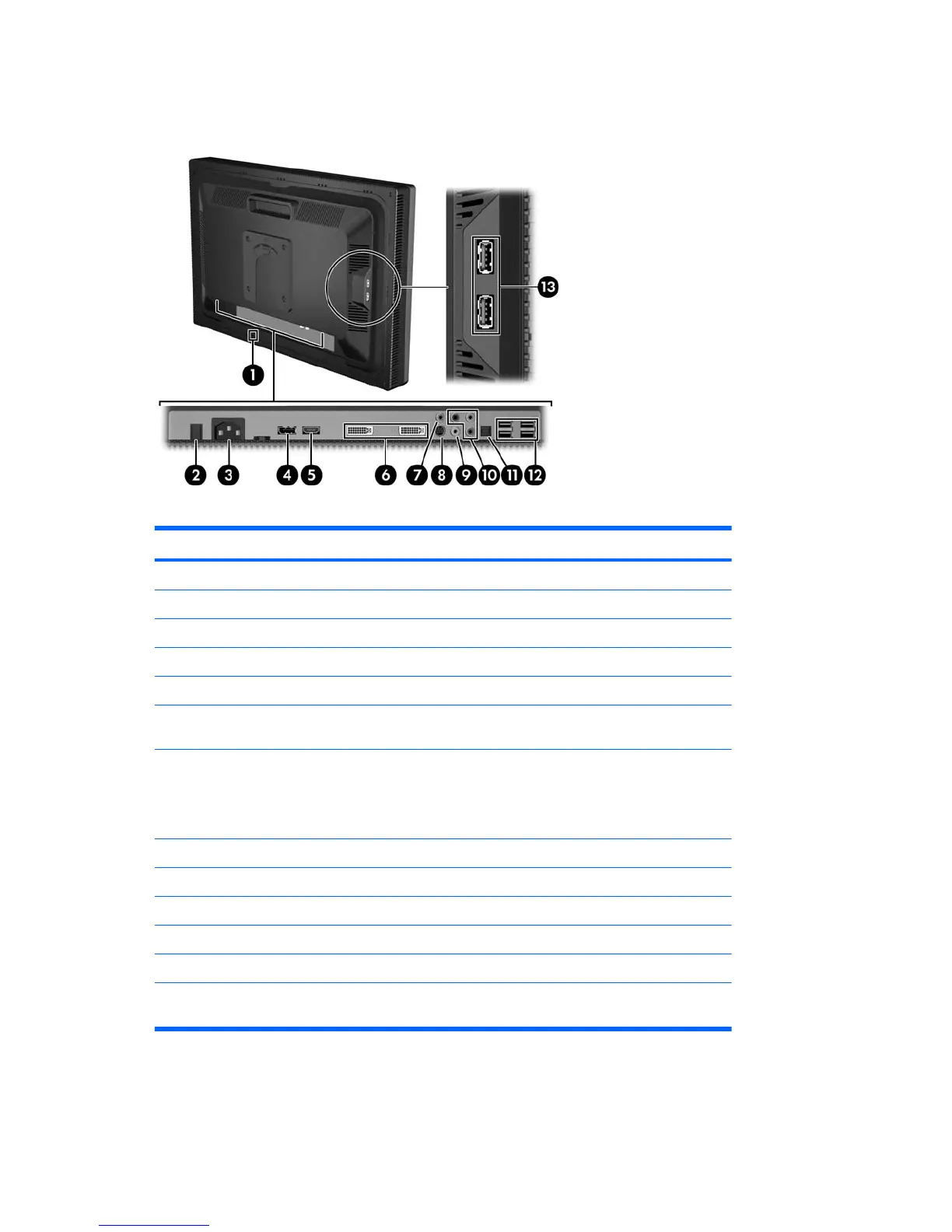

Figure 3-3 Rear Components
Table 3-2 HP LP2475w Rear Components
Component Function
1 Cable Lock Provision Provides slot for use with cable security locks.
2 Master Power Switch Turns off all power to the monitor.
3 AC Power Connector Connects the AC power cord to the monitor.
4 DisplayPort Connector Connects the DisplayPort signal cable to the monitor.
5 HDMI Connector Connects the HDMI signal cable to the monitor.
6 DVI-I Connectors Connects the DVI to VGA signal cable or DVI to DVI-D signal
cable to the monitor.
7 SPDIF Audio Connector Connects an audio cable from a digital audio input on an
external receiver or amplifier to the monitor.
NOTE: The SPDIF connector is only used with an HDMI
video input. It does not provide audio for other video inputs.
8 S-Video Connector Connects an S-Video signal cable to the monitor.
9 Composite Connector Connects a Composite signal cable to the monitor.
10 Component Connectors Connects Component signal cables to the monitor.
11 USB Upstream Connector Connects the monitor USB hub cable to a host USB port/hub.
12 USB Downstream Connectors Connects optional USB devices to the monitor.
13 USB Downstream Connectors
(side panel)
Connects optional USB devices to the monitor.
8 Chapter 3 Setting Up the Monitor

HP LP2275w Specifications

General

3D	No
Panel type	PVA
Pixel pitch	0.282 x 0.282 mm
Response time	6 ms
Display diagonal	22 \
Display resolution	1680 x 1050 pixels
Display technology	LCD
Vertical scan range	48 - 85 Hz
Horizontal scan range	30 - 93 kHz
Contrast ratio (typical)	1000:1
Display number of colors	-
Display brightness (typical)	300 cd/m²
Supported graphics resolutions	1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 640 x 480 (VGA), 800 x 600 (SVGA)
Storage temperature (T-T)	20 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Non-operating relative humidity (non-condensing)	5 - 90 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	85 W
Power consumption (standby)	2 W
Power consumption (typical)	56 W
Plug and Play	Yes
Tilt angle range	-5 - 30 °
Height adjustment	100 mm
Cable lock slot type	Kensington
Panel mounting interface	100 x 100 mm
USB hub version	2.0
HDMI ports quantity	0
USB Type-A downstream ports quantity	4
Product color	Black
Country of origin	China
Dimensions (W x D x H) (imperial)	19.9 x 10 x 18.8 \
Package weight	11300 g

Weight and Dimensions

Depth (with stand)	253 mm
Width (with stand)	506 mm
Height (with stand)	477 mm
Depth (without stand)	82.6 mm
Height (without stand)	328 mm
Weight (without stand)	8500 g
